Assembly
7.3 Mounting the housing lid
1
2
→ Check that there is a seal on the housing and that it is not damaged. Replace
the seal if necessary.
→ Grease the seal if necessary, using a component compatible with the seal
material.
→ [1] Set the housing lid to ensure that the 4 grooves of the housing lid match
with the 4 pins of the housing.
→ [2] Turn the housing lid clockwise with an angle of about 15° to lock it.

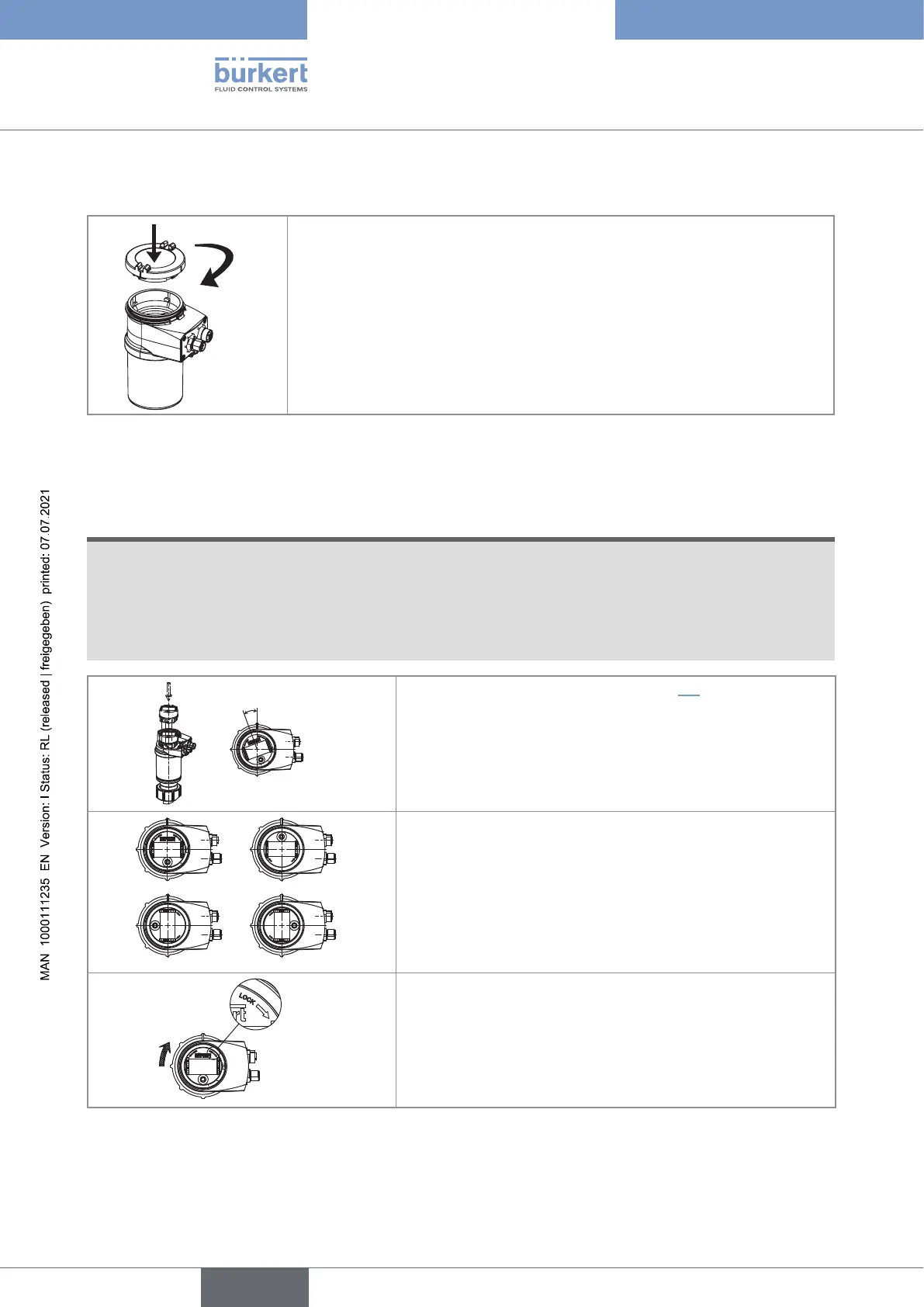

Fig. 7 : Closing the housing lid
7.4 Mounting the display module
notice
The tightness of the device is not guaranteed when the housing lid is removed.
▶ Prevent the projection of liquid inside the housing.
The device may be damaged if a metal component comes into contact with the electronics.
▶ Prevent contact of the electronics with a metallic item.
20°
→ Remove the housing lid. Refer to chpt. 7.2.
→ Set the display module at an angle of ca. 20° in relation to the
desired position.
a)
b)
c)
d)
→ The display module can be mounted in 4 different positions,
at 90° intervals.
→ Fully push in the display module and turn clockwise to lock it.
→ Put the housing lid back.
Fig. 8 : Mounting the display module
