Burkert ELEMENT 8222 - Wiring a Device Variant with 2 M12 Fixed Connectors

29
Installation and wiring
8.3.4 Wiring a device variant with 2 M12 fixed connectors
Male fixed connector Female fixed connector
1
2
3
4
Transistor output 1
Current output 1
0V
V+
(12...36 V DC)
1
2
3
4
V+
(12...36 V DC)
Transistor output 2
Current output 2
0V

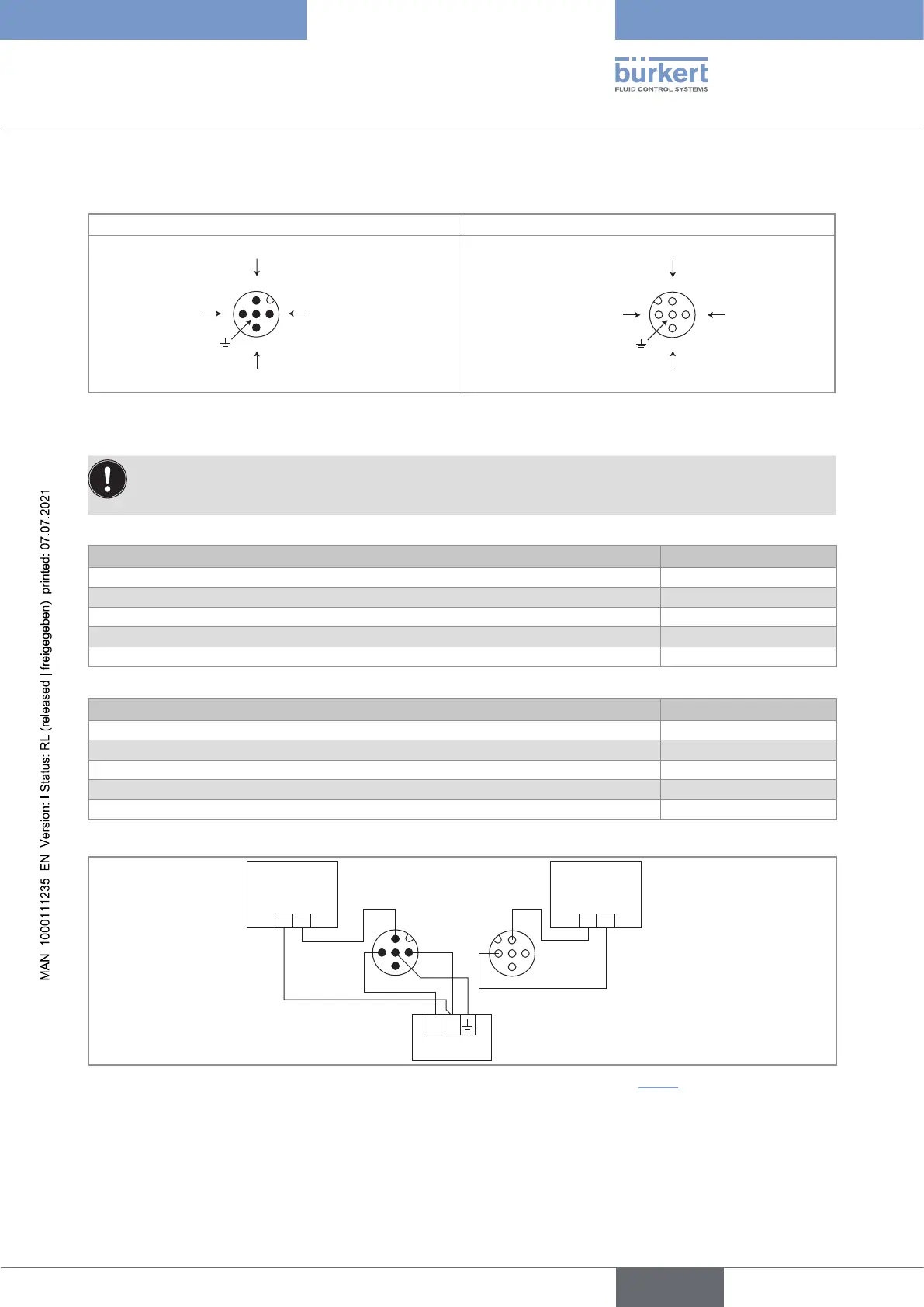

Fig. 21 : Pin assignment of the male and female M12 fixed connectors
Connect the power supply for the device to the male fixed connector; the supply is then transferred inter-
nally to pins 1 and 3 of the female fixed connector in order to ease wiring of the load to the female fixed
connector.
Pin of the M12 female cable available as an accessory (article number 438680) Colour of the wire
1 brown
2 white
3 blue
4 black
5 green/yellow or grey
Pin of the M12 male cable available as an accessory (article number 559177) Colour of the wire
1 brown
2 white
3 blue
4 black
5 green/yellow or grey
12-36 V DC
+ -
1
2
3
4
3
2
1
4
Load 1 (solenoid
valve for instance)
Load 2 (solenoid valve for
instance)
Power supply
white
blue
brown
green/yellow or grey
white
brown
Fig. 22 : NPN wiring of both transistor outputs (software setting «NPN/sink», see chpt. 9.11.8), on a device variant with
2 fixed connectors
