23
Installation and wiring
8.2 Installing a device on the pipe
danger
Risk of injury due to pressure in the installation.
▶ Before any intervention in the installation, stop the circulation of fluid, cut off the pressure and drain the pipe.
▶ Before any intervention in the installation, make sure that there is no pressure in the pipe.
Risk of injury due to the nature of the fluid.
▶ Respect the prevailing regulations on accident prevention and safety relating to the use of dangerous fluids.
The device is inserted into a fitting installed on the pipe.
→ Select an appropriate position on the pipe. In Fig. 10, prefer “A” mounting to install a device with sensor
C=0.1 or C=0.01.
Flow direction
A
B

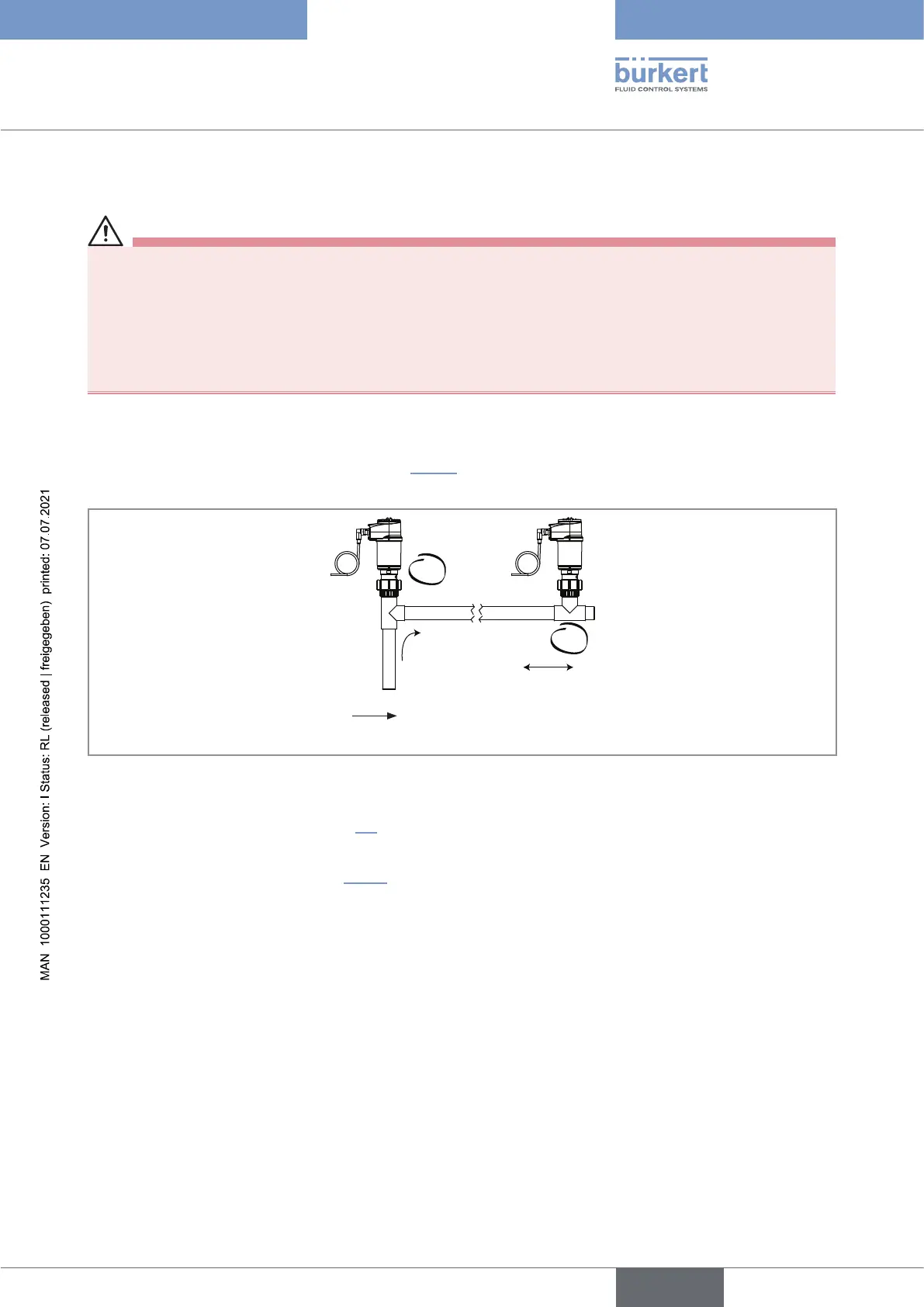

Fig. 10 : Mounting positions of the device in the pipe
→ Fit the display module. Refer to chpt. 7.4. The display module is needed to calibrate the device and to set the
device parameters.
→ Calibrate the device. Refer to chpt. 9.12.4.
English
Type 8222 ELEMENT
