Burkert ELEMENT 8222 - Wiring a Device Variant with a Single M12 Fixed Connector

27
Installation and wiring
8.3.3 Wiring a device variant with a single M12 fixed connector
1
2
3
4
V+ (14...36 V DC)
Transistor output 1
Transistor output 2
0 V

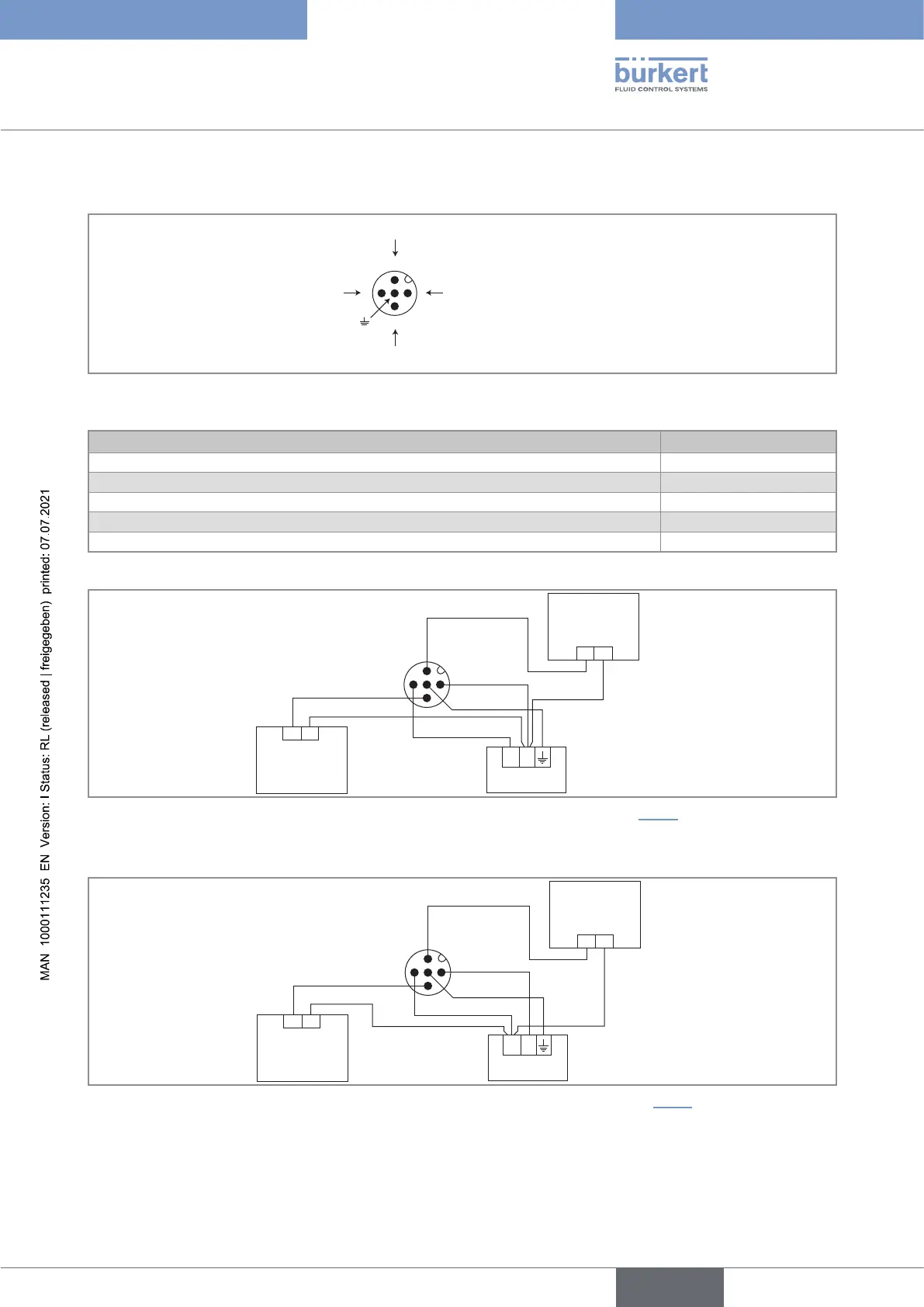

Fig. 15 : Pin assignment of the male fixed connector on a device variant with a single male M12 fixed connector
Pin of the M12 female cable available as an accessory (article number 438680) Colour of the wire
1 brown
2 white
3 blue
4 black
5 green/yellow or grey
14-36 V DC
+ -
1
2
3
4
Load 1 (solenoid valve for instance)
Load 2
(solenoid valve for instance)
Power supply
white
blue
black
brown
green/yellow
or grey
Fig. 16 : NPN wiring of both transistor outputs (software setting «NPN/sink», see chpt. 9.11.8), on a device variant with
1 fixed connector
14-36 V DC
+ -
1
2
3
4
Load 1 (solenoid valve for instance)
Load 2
(solenoid valve for instance)
Power supply
white
blue
black
brown
green/yellow
or grey
Fig. 17 : PNP wiring of both transistor outputs (software setting «PNP/source», see chpt. 9.11.8), on a device variant
with 1 fixed connector
English
Type 8222 ELEMENT
