Installation and wiring
14-36 V DC
+ -
+ -
1
2
3
4
Power supply
4...20 mA input at external
device
brown
blue
green/yellow or grey
14-36 V DC
+ -
+ -
1
2
3
4
Power supply
4...20 mA input at external
device
brown
blue
green/yellow
or grey

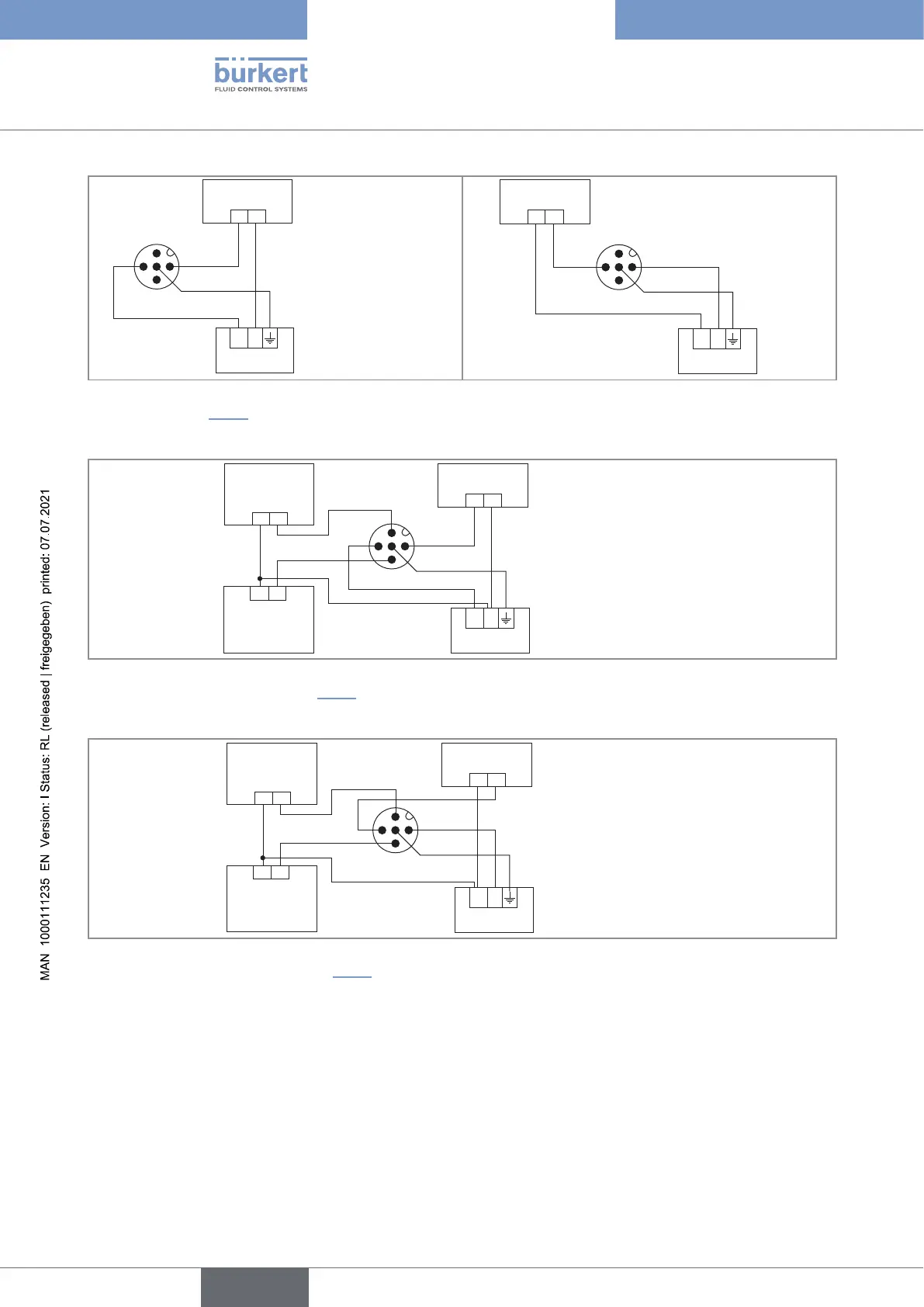

Fig. 18 : Possible connections of the current output (whatever the software setting, «NPN/sink» or «PNP/source», see
chpt. 9.11.8), on a device variant with 1 fixed connector
14-36 V DC
+ -
+ -
1
2
3
4
Load 2
Load 1
4...20 mA input at external device
brown
green/yellow
or grey
blue
white
black
Power supply
Fig. 19 : NPN wiring of both transistor outputs and wiring of the current output in sinking mode (software setting
«NPN / sink», see chpt. 9.11.8), on a device variant with 1 fixed connector
14-36 V DC
+ -
+ -
1
2
3
4
Load 2
Load 1
4...20 mA input at external
device
brown
green/yellow
or grey
blue
white
black
Power supply
Fig. 20 : PNP wiring of both transistor outputs and wiring of the current output in sourcing mode (software setting
«PNP / source», see chpt. 9.11.8), on a device variant with 1 fixed connector
