7.5 Dismounting the display module
20°
→ Remove the housing lid if necessary. Refer to chpt. 7.2.
→ Turn the module by ca. 20° counterclockwise.
Once unlocked, the display module is raised slightly by the spring action.
→ Remove the display module from its housing.

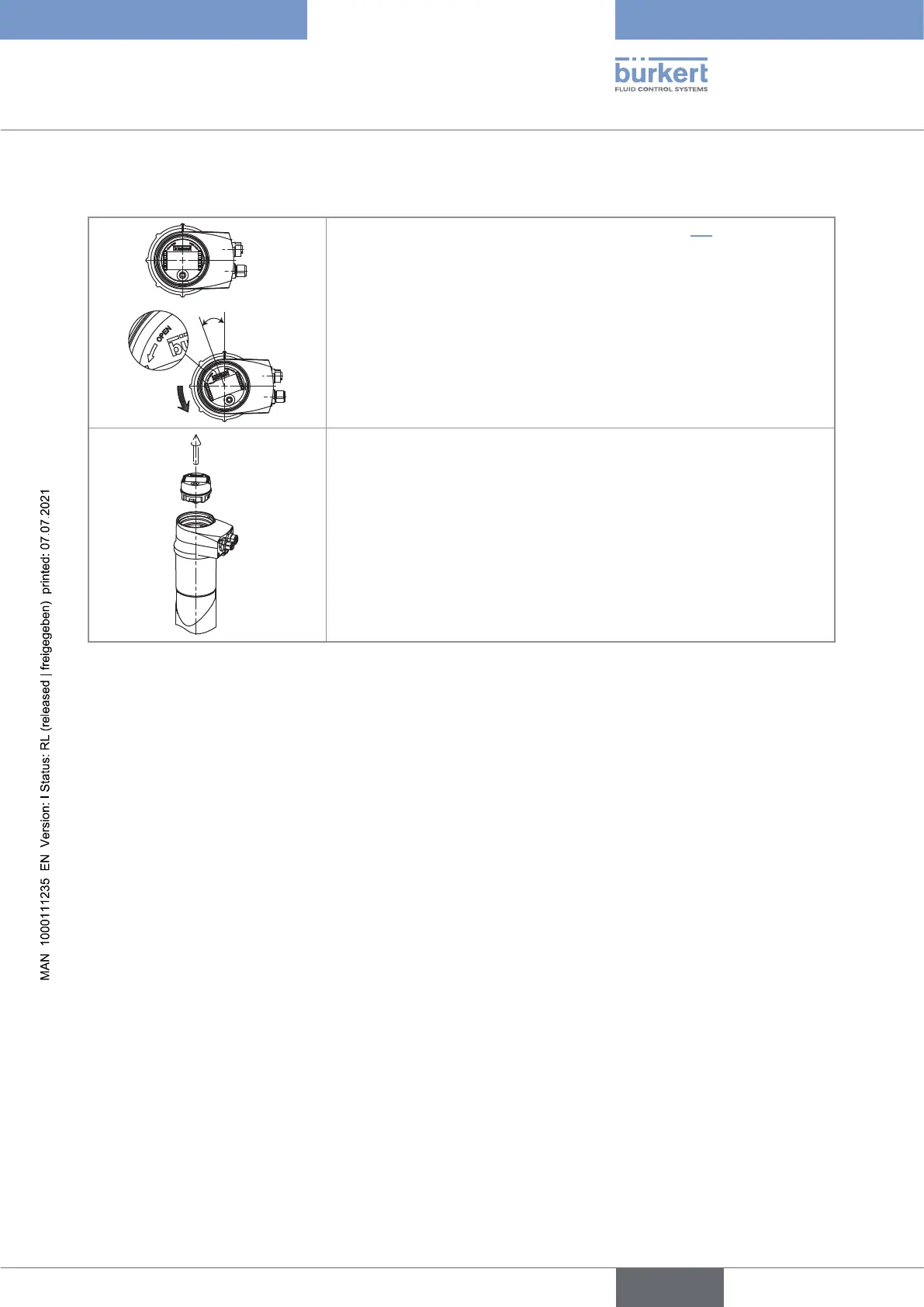

Fig. 9 : Dismounting the display module
