8.3.2 Making the installation equipotential
To ensure the equipotentiality of the installation (power supply - device - medium):
→ Connect together the various earth spots in the installation to eliminate the potential differences that may
occur between different earthes.
→ Observe faultless grounding of the shield of the power supply cable. Refer to Fig. 13 and Fig. 14.
→ If the device is installed on plastic pipes, earth together the metallic equipment such as pumps or valves, that
is as close as possible to the device. Refer to Fig. 14.
Power supply
12-36 V DC
+
-
Metal pipe

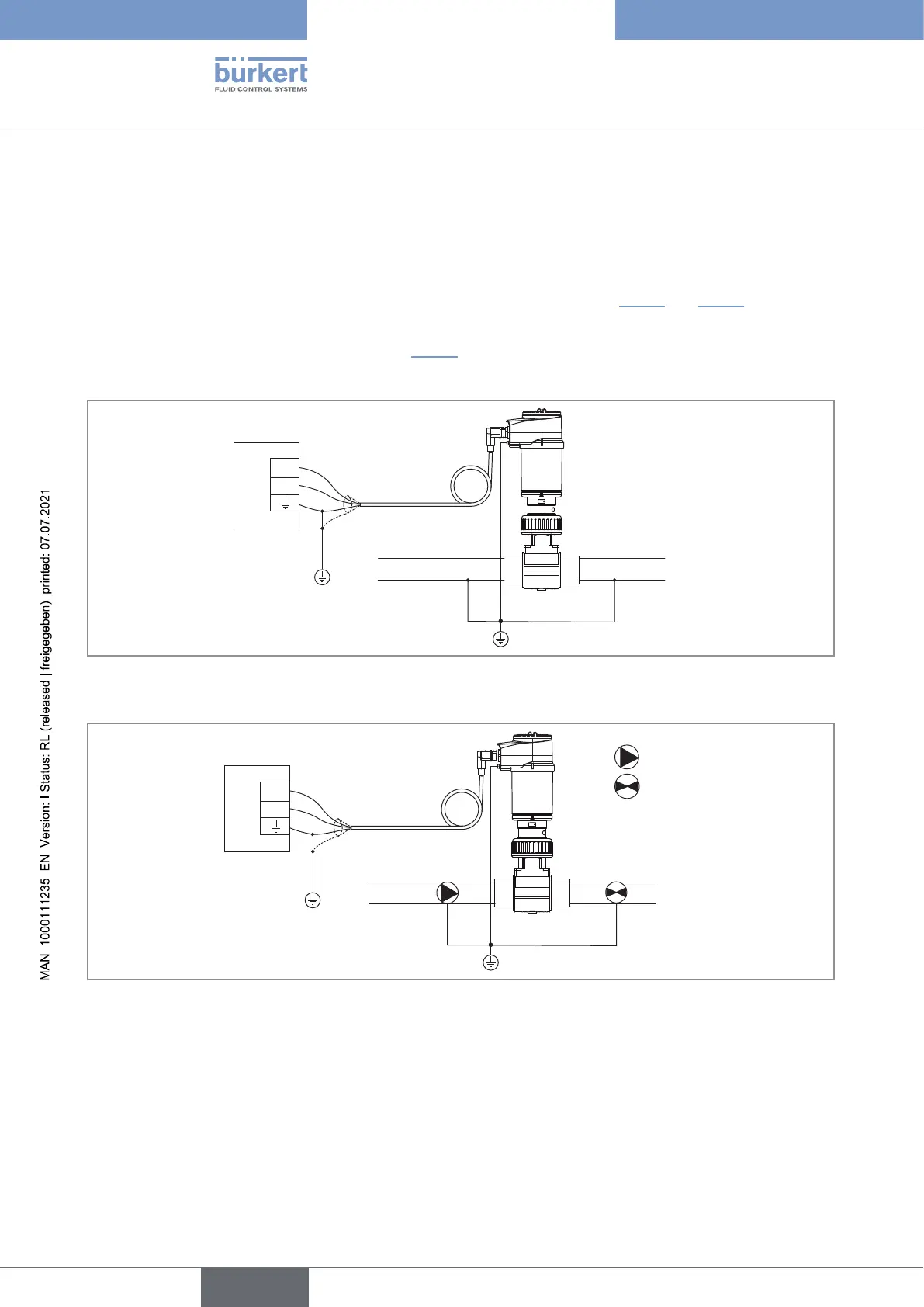

Fig. 13 : Equipotentiality skeleton diagram with pipes in metal
Power supply
12-36 V DC
+
-
Equipment such as valves,
pumps,...
Pipes in plastic
Fig. 14 : Equipotentiality skeleton diagram with pipes in plastic
