25
Installation and wiring
8.3 Wiring
danger
Risk of injury due to electrical voltage.
▶ Before carrying out work on the system or the device, disconnect the electrical power for all the conductors
and isolate it.
▶ If the device is installed either in a wet environment or outdoors, all the electrical voltages must be of max.
35 V DC.
▶ All equipment connected to the device must be double insulated with respect to the mains according to the
standard UL/EN 61010-1.
▶ Observe all applicable accident protection and safety regulations for electrical equipment.
• Use a high-quality electrical power supply. The power supply must be filtered and regulated.
• Make sure that the installation is equipotential. Refer to chpt. 8.3.2.
• Protect the power supply of the device with a 100 mA time-delay fuse and a switch.
• Protect the power supply of each transistor output with a 750 mA fuse.
• Once the device is wired, set the “HWMode” parameter depending on the wiring carried out, sink/NPN
or source/PNP. Refer to chpt. 9.11.8.

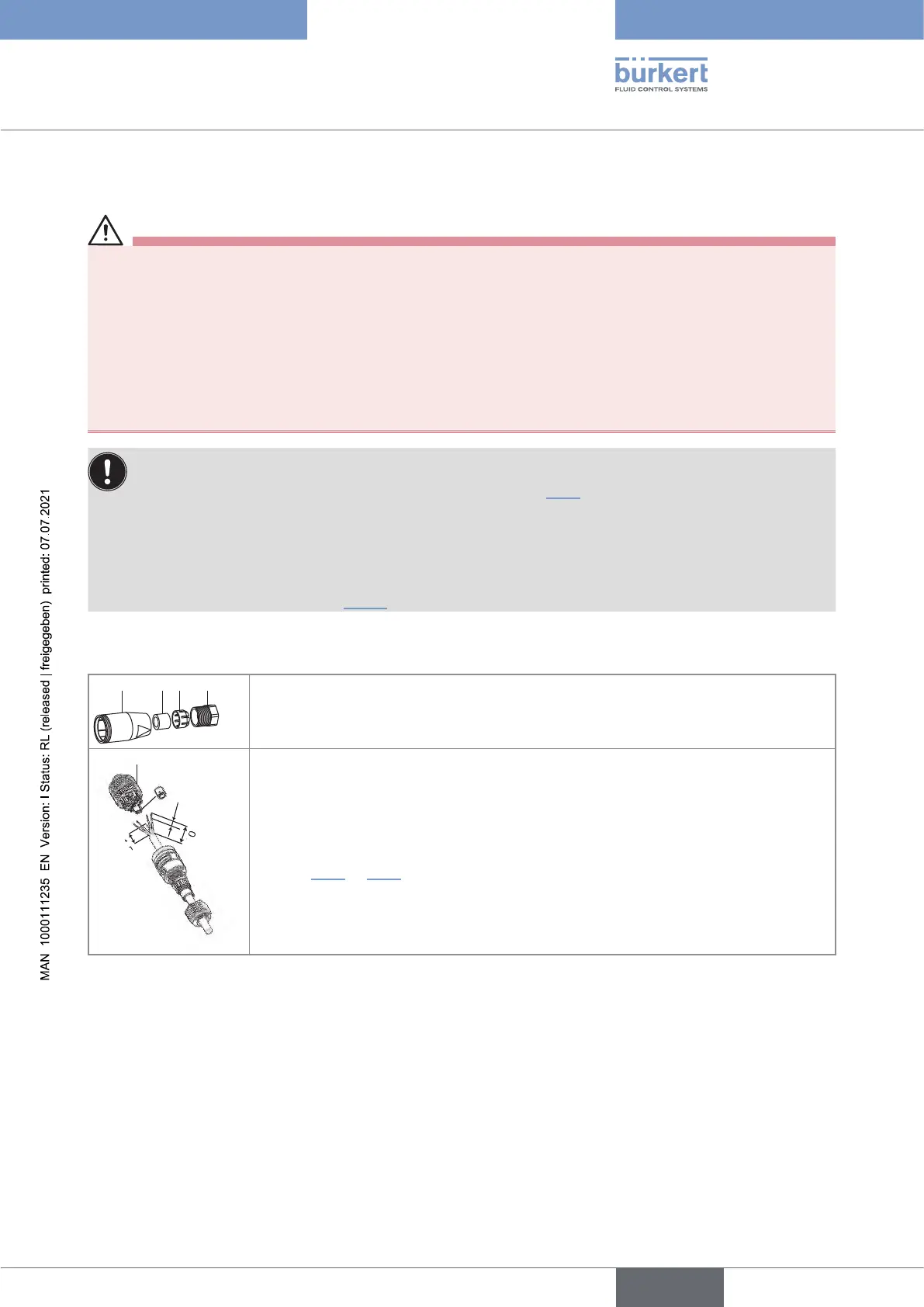

8.3.1 Assembling the male or female connector (accessories)
4 3 2 1
→ Unscrew the nut [1] on the body [4].
→ Insert the cable into the nut [1], the cable clamp [2] and the seal [3], and then into
the body [4].
5,5
11,5
20
5
→ Strip 20 mm of the cable.
→ Cut the central wire (earth) so that its length is equal to 11.5 mm.
→ Expose 5.5 mm of the wires on the stripped cable.
→ Insert each wire into the appropriate pin on the terminal block [5]. Refer to
chpt .8.3.3 or 8.3.4.
→ Tighten the terminal block [5] wired to the body [4].
→ Tighten the connector nut [1].
Fig. 12 : M12 multi-pin connector (not provided)
English
Type 8222 ELEMENT
