Burkert ELEMENT 8222 - Page 30

30
Installation and wiring
12-36 V DC
+ -
1
2
3
4
3
2
1
4
Load 1 (solenoid valve for
instance)
Load 2 (solenoid valve for instance)
Power supply
white
blue
brown
green/yellow or grey
white
blue

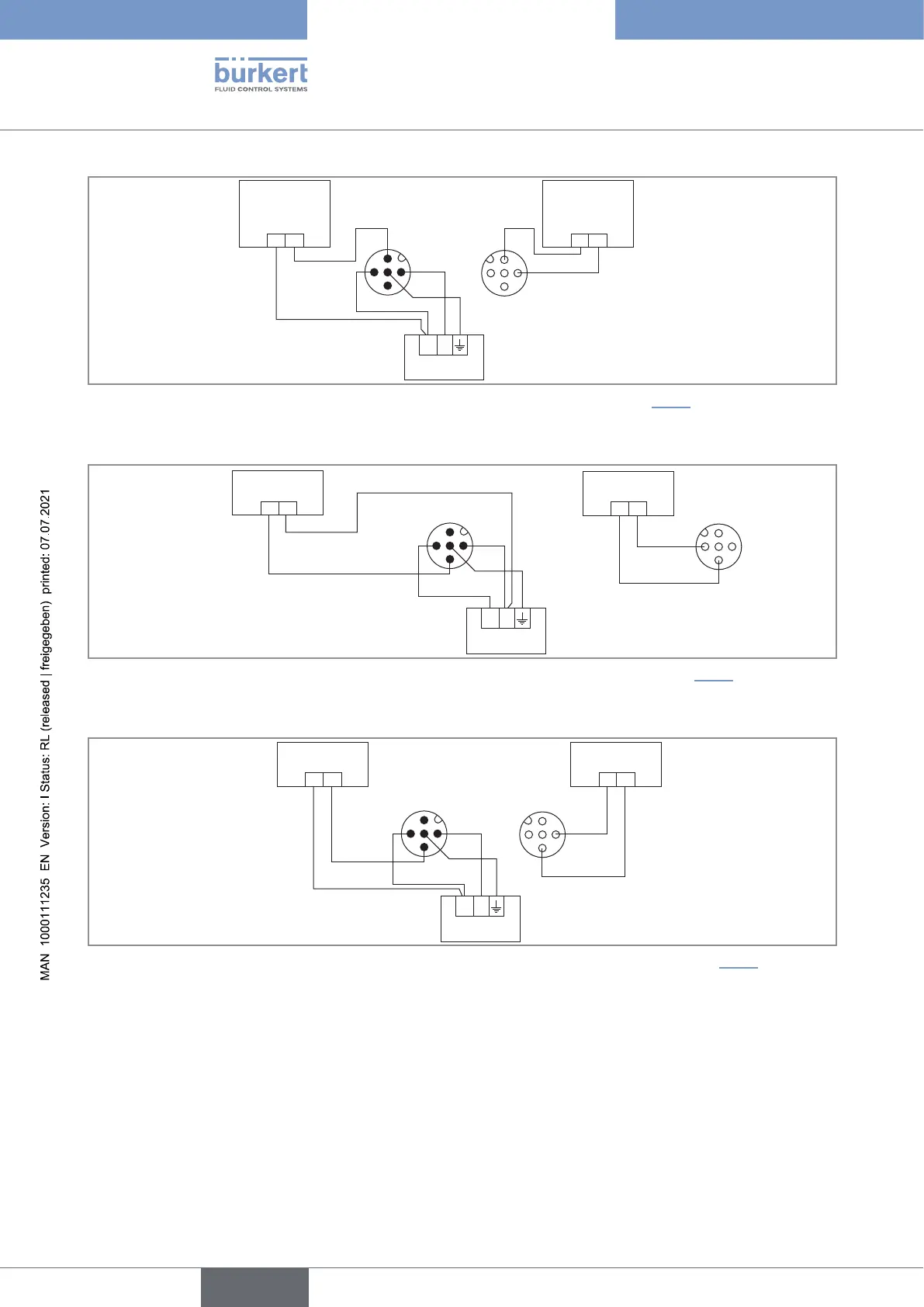

Fig. 23 : PNP wiring of both transistor outputs (software setting „PNP/source“, see chpt. 9.11.8), on a device variant
with 2 fixed connectors
12-36 V DC
+ -
+ -
+ -
1
2
3
4
3
2
1
4
Power supply
First 4...20 mA input at
external device
brown
blue
green/yellow
or grey
Second 4...20 mA input at
external device
black
brown
black
Fig. 24 : Wiring of both current outputs in sinking mode (software setting «NPN/sink», see chpt. 9.11.8), on a device
variant with 2 fixed connectors
12-36 V DC
+ -
+ - + -
1
2
3
4
3
2
1
4
Power supply
First 4...20 mA input at
external device
brown
blue
green/yellow or grey
Second 4...20 mA input
at external device
black
blue
black
Fig. 25 : Wiring of both current outputs in sourcing mode (software setting «PNP/source», see chpt. 9.11.8), on a
device variant with 2 fixed connectors
English
Type 8222 ELEMENT
