Installation and wiring
12-36 V DC
+ -
+ - + -
1
2
3
4
3
2
1
4
Load 1
1
st
4...20 mA input at external
device
brown
green/yel-
low or grey
blue
white
black
Power supply
2
nd
4...20 mA input at external
device
Load 2
brown
black
white

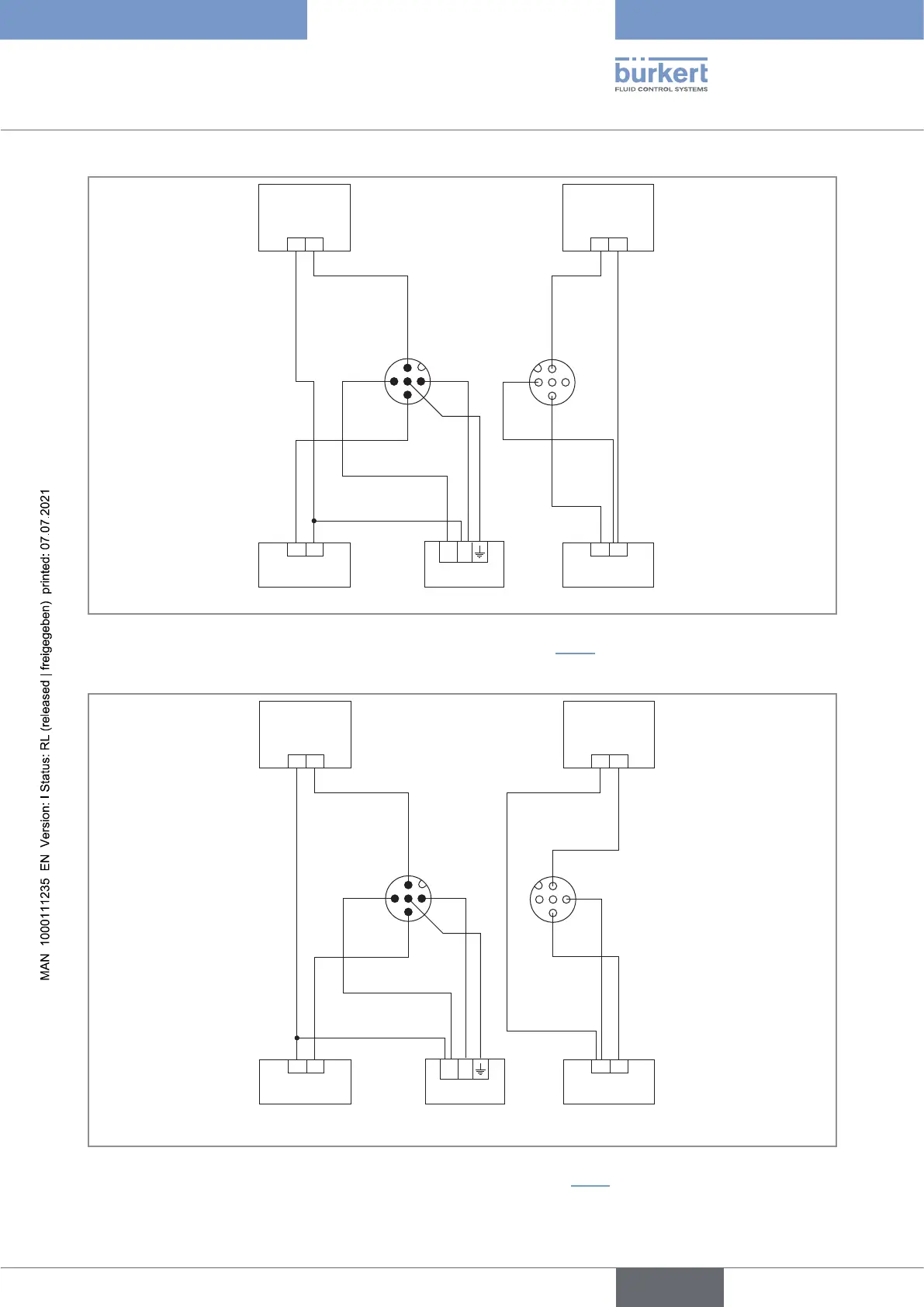

Fig. 26 : NPN wiring of both transistor outputs and wiring of both current outputs in sinking mode, on a device variant
with 2 fixed connectors (software setting «NPN/sink», see chpt. 9.11.8)
12-36 V DC
+ -
+ - + -
1
2
3
4
3
2
1
4
Load 1
1
st
4...20 mA input at external
device
brown
green/yel-
low or grey
blue
white
black
Power supply
2
nd
4...20 mA input at external
device
Load 2
blue
black
white
Fig. 27 : PNP wiring of both transistor outputs and wiring of both current outputs in sourcing mode, on a device variant
with 2 fixed connectors (software setting «PNP/source», see chpt. 9.11.8)
