Setup
Step 2: Attach Lower Legs to the Manikin
Note: Use extreme care when handling the sensor cables and pulse tubes. NEVER let a leg hang off a
surface without the locking pin securely in place. Doing so can seriously damage the sensor cables and
pulse tubes.
To attach the lower legs:

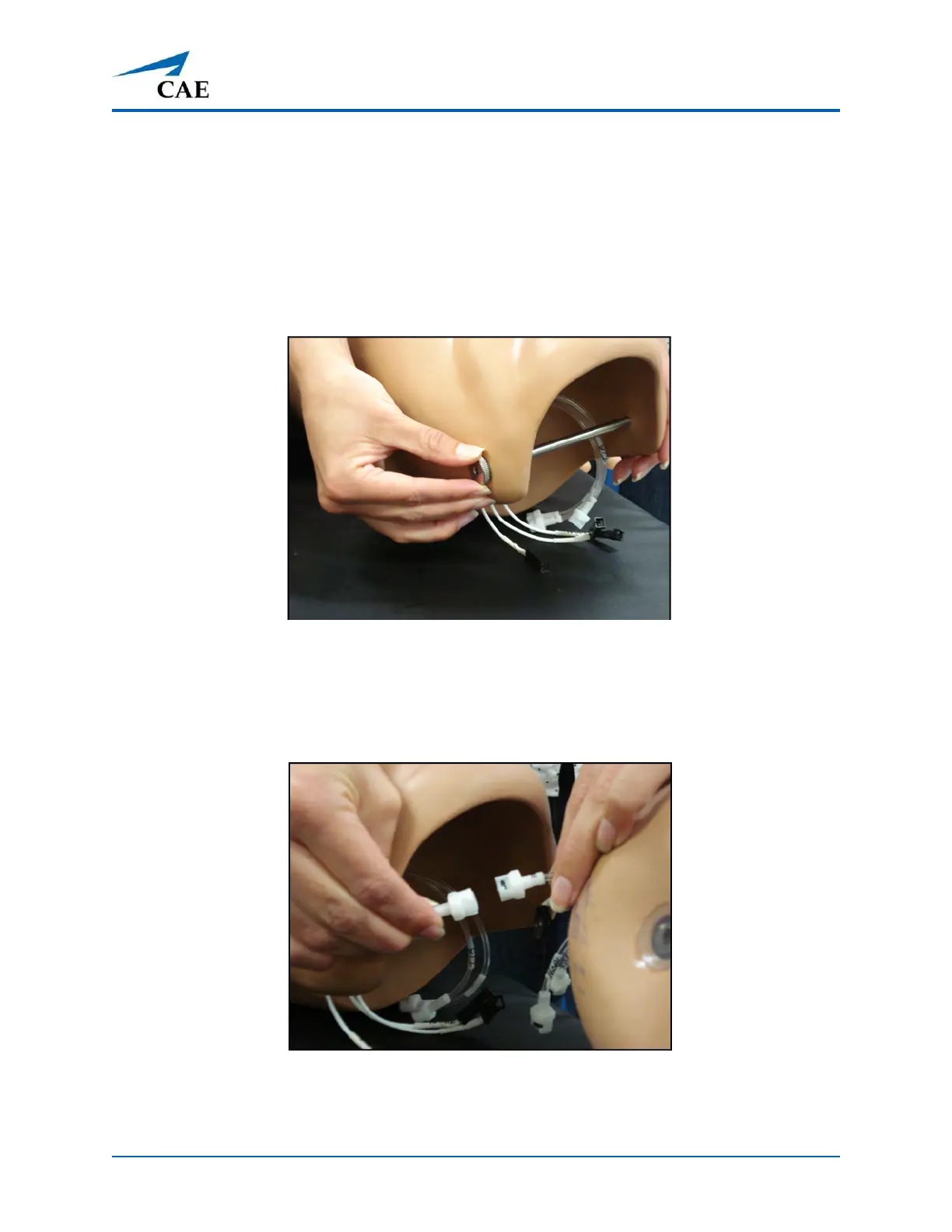

a. On each leg, at the knee, remove the locking pin from its position.
Removing the Locking Pin
b. Place lower limbs in their correct positions, leaving enough room to
manipulate connectors.
c. On each leg, match and connect the color-coded tubing to the three white
tubing connectors.
Connecting Tubing
