CAE Apollo - Preparing the Base Station in the Simulator

©2020 CAE 905K351052 v1.1 85
Appendix B - Wireless Voice Link

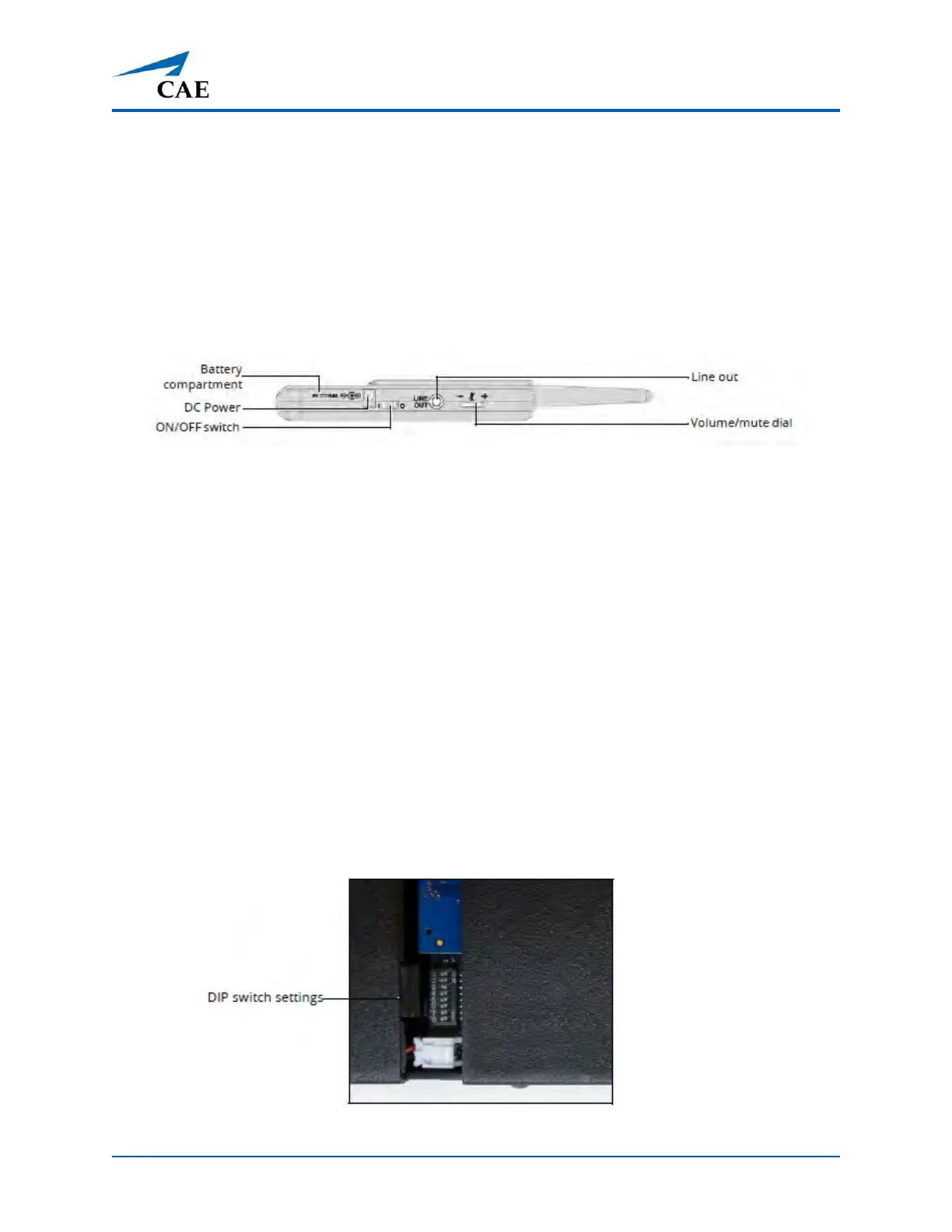

The following features are located on the side of the WVL devices:
• Battery compartment: Houses two AAA batteries and the DIP switch
• DC power jack: Accommodates a 5VDC/0.2A power source
• ON/OFF switch: Turns WVL handset power on or off
• Line out jack: Connects the WVL to the simulator’s audio amplifier
• Volume/mute dial: Controls microphone gain and microphone mute on the handset
WVL Side View
On the WVL handset, the volume/mute dial controls the microphone volume or mutes the
microphone.
On the WVL base station, the dial serves as the volume control for the speakers inside the simulator.
Moving the dial toward the plus sign increases the volume. Moving the dial toward the minus sign
decreases the volume and setting. On the handset, pressing straight down on the volume dial in the
center mutes the microphone.
Preparing the Base Station in the Simulator
When using the base station in the simulator, ensure the batteries are removed and the following
items are attached:
• Power cable
• Line out cable
The DIP switch is located in the battery compartment of the base station.
Dip Switch Settings
