Setup
Step 3: Attach Ares’ Legs

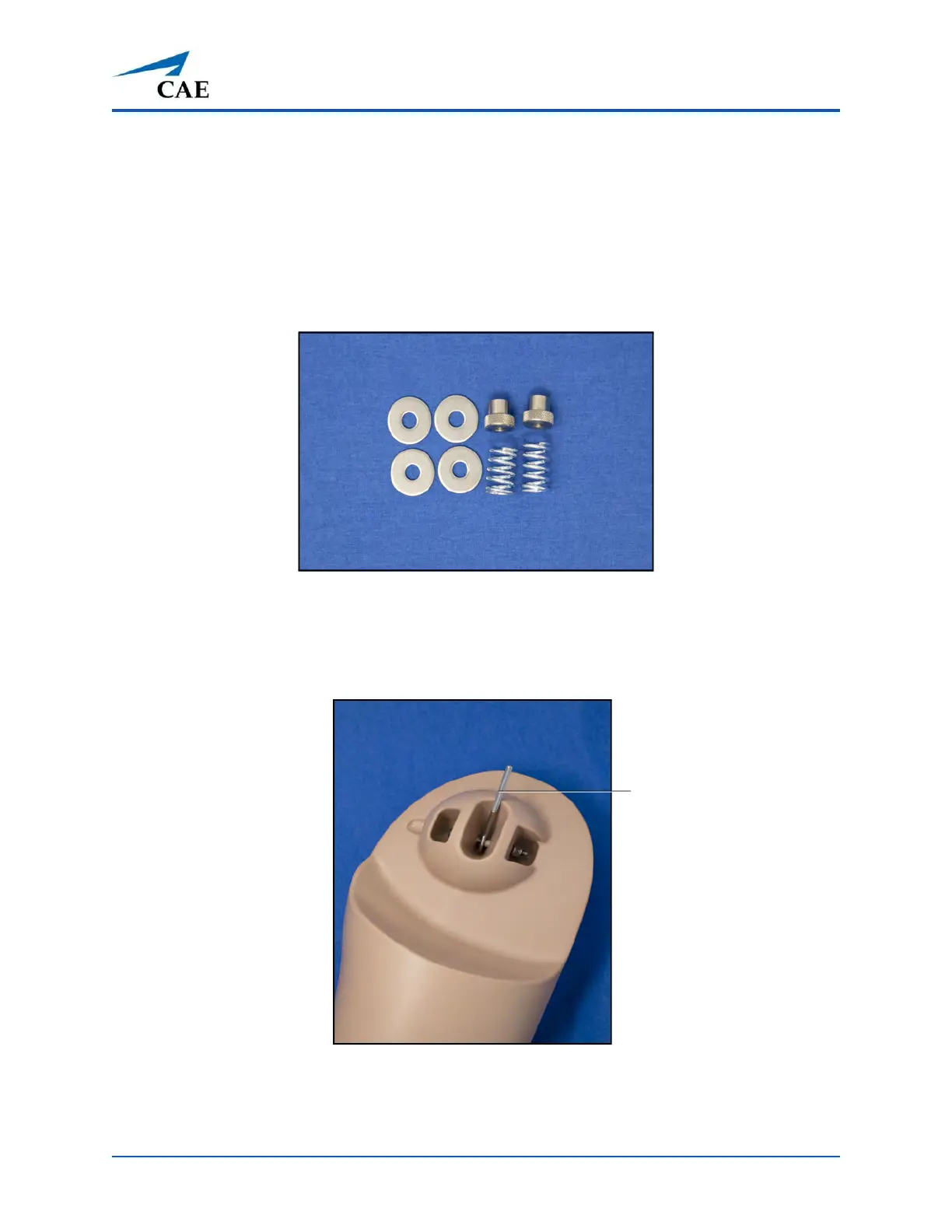

The following hardware is included:
• Two (2) knurled nuts
• Two (2) springs
• Four (4) metal washers
Leg Hardware
To attach the legs:
a. Insert the leg screw attached to the top of the leg into the hip joint hole.
Ares’ Leg
b. Place the spring over the end of the knurled nut.
Leg screw
