Fig. 2.8: Mod N8304 Smart NIM Fan Unit Top view
2.3 Crate Backplane
The backplane is equipped with 12 high-quality long-life NIM connectors, which are
completely parallel-wired.

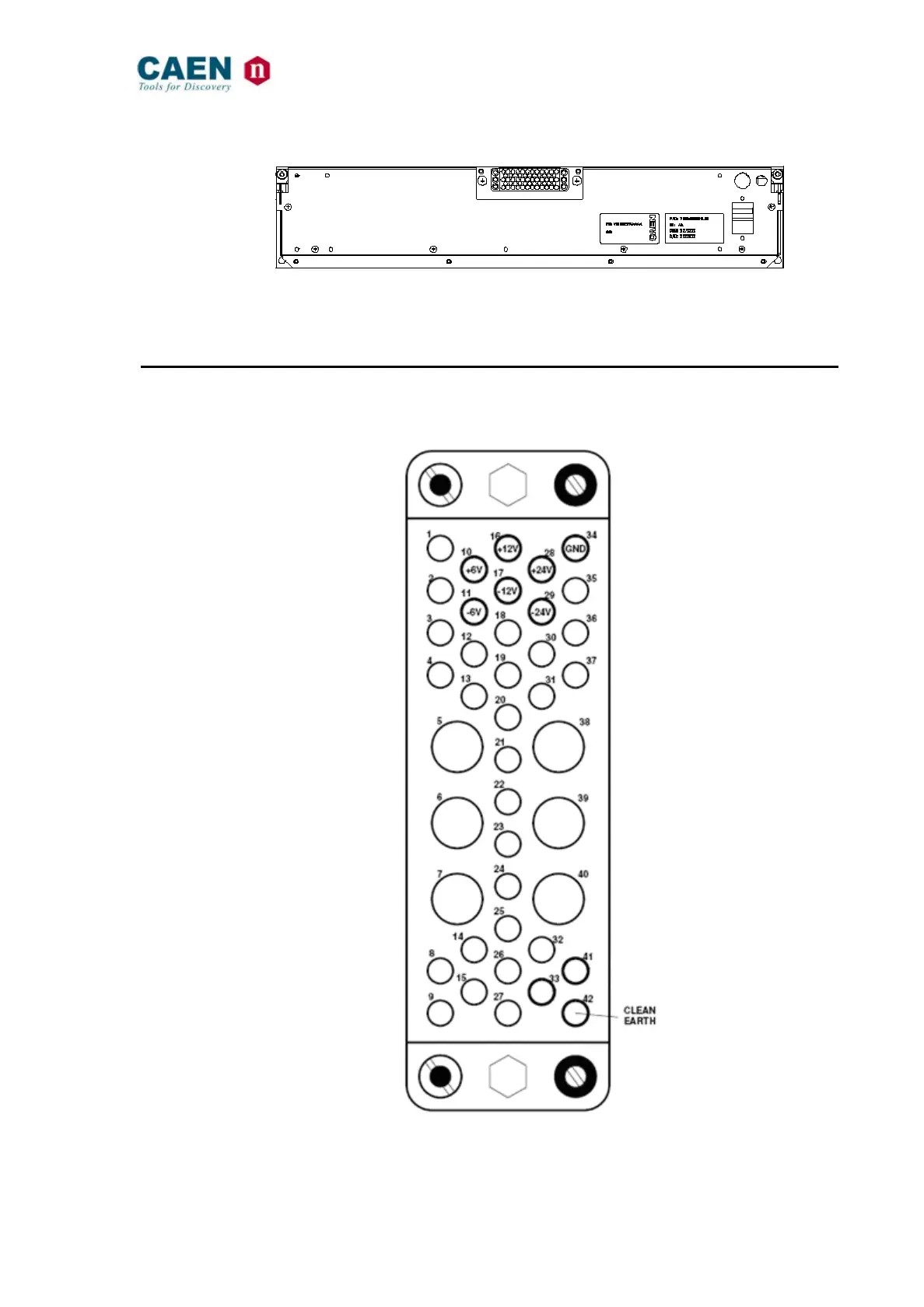

Fig. 2.9: Backplane NIM connector external view
