Caen NIM8304 - Fig. 4.6: FAIL Signal Timing

Document type:
Title:
Revision date:
Revision:
User's Manual (MUT)
Mod. NIM8304 12 slot 7U(5+2) Switching NIM Crate
14/04/2014
3
NPO:
Filename:
Number of pages:
Page:
00121/09:N8304.MUTx/03
NIM8304_REV3.DOC
44
28

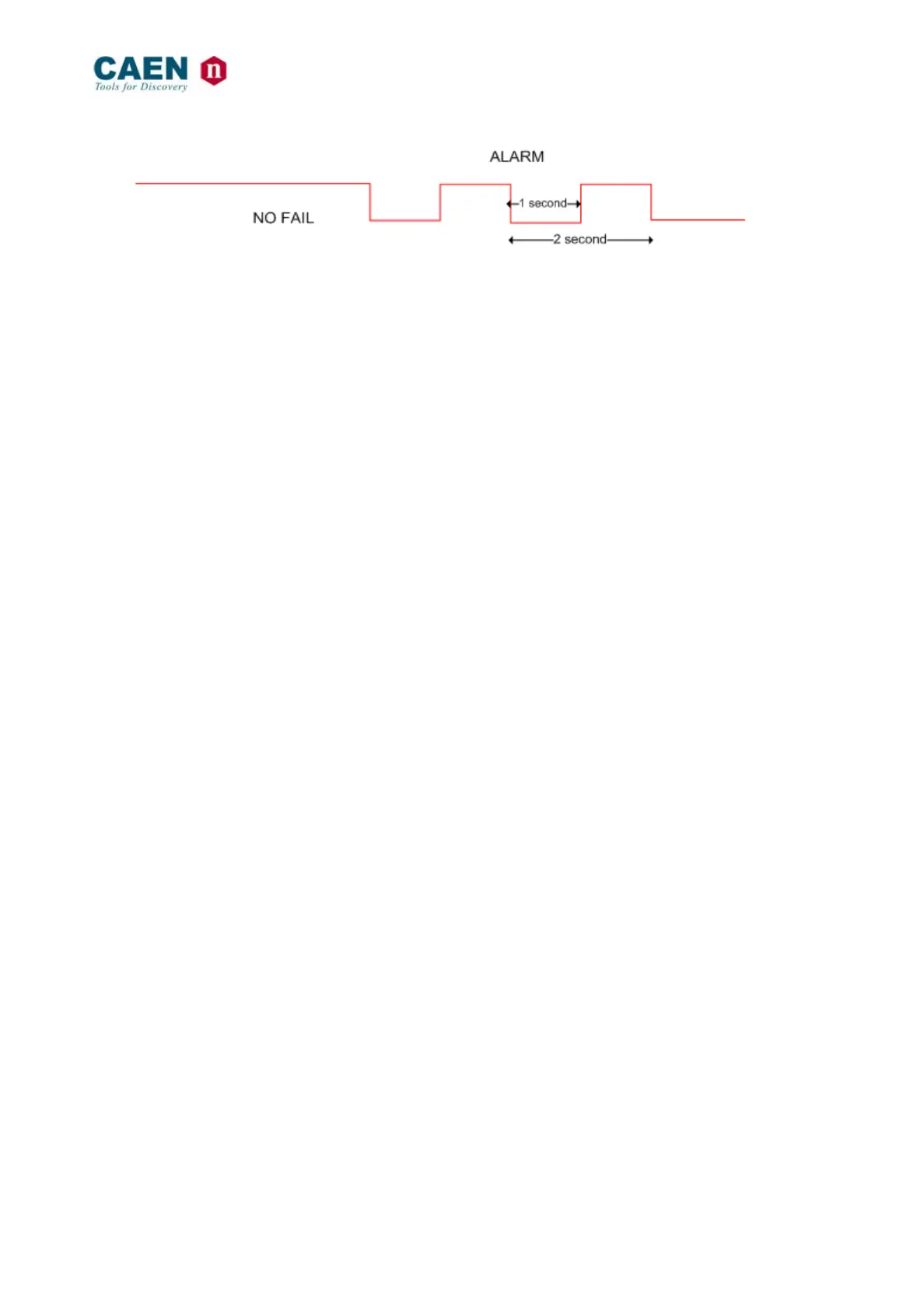

Fig. 4.6: FAIL signal timing
Fail LED and buzzer work like FAIL Connector
