4.1.4 Ethernet LAN Connector Specifications

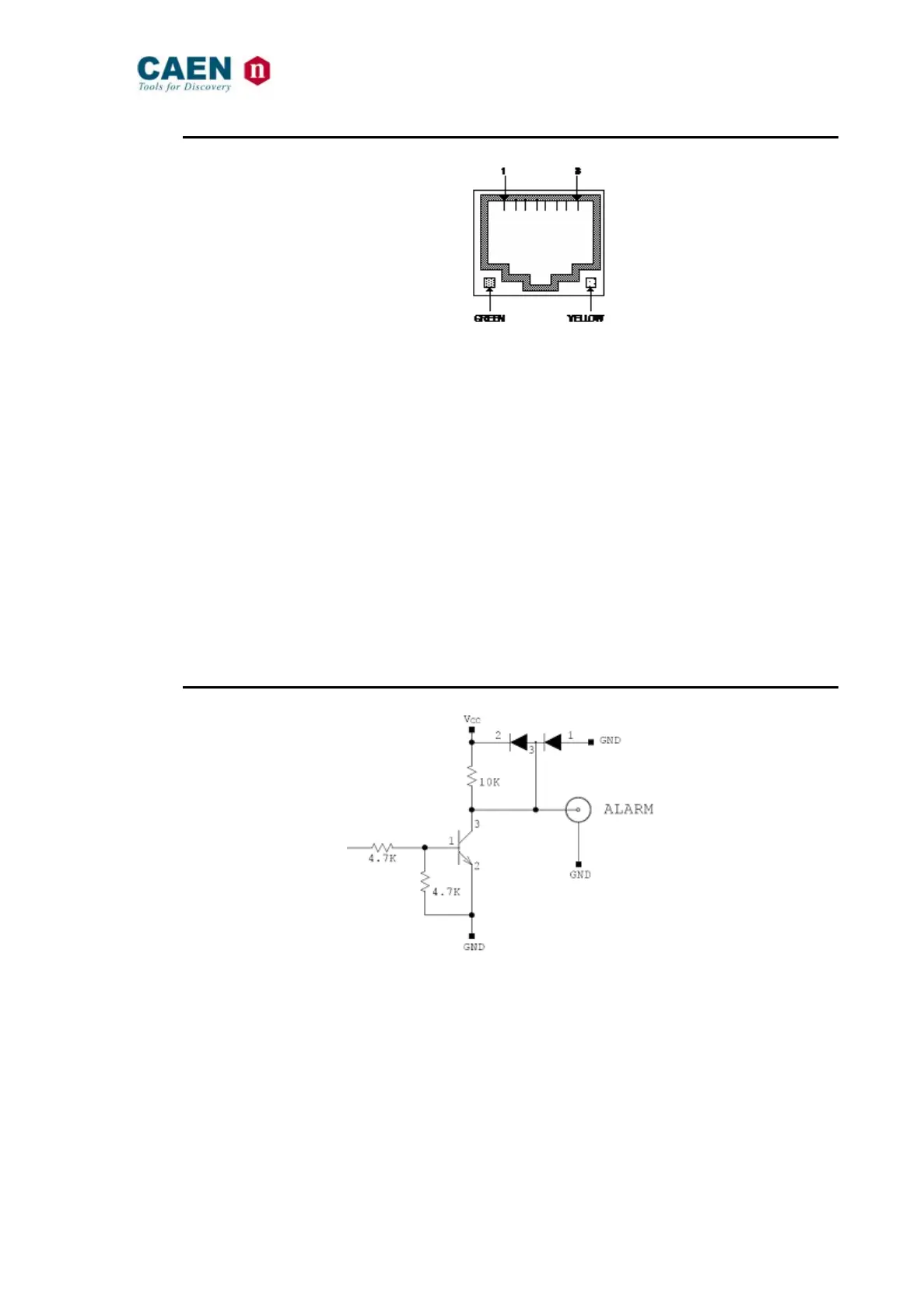

Fig. 4.4: Ethernet LAN Connector
Pin 1: TXD+ (Transmit Data +)
Pin 2: TXD- (Transmit Data -)
Pin 3: RXD+ (Receive Data +)
Pin 4: EPWR+ (Power from switch +)
Pin 5: EPWR+ (Power from switch +)
Pin 6: RXD- (Receive Data -)
Pin 7: EPWR- (Power from switch -)
Pin 8: EPWR- (Power from switch -)
Network Link LED: Yellow LED indicates network link is operational
Network Activity LED: Green LED indicates network traffic detected
4.1.5 FAIL Connector Specifications
Fig. 4.5: FAIL output circuit
- Transistor model:: 2N3904
- max Current: 30 mA
- stand by: pull-up Vcc (unregulated voltage; min: 24V max: 40 V)
- ALARM: 0.3V
