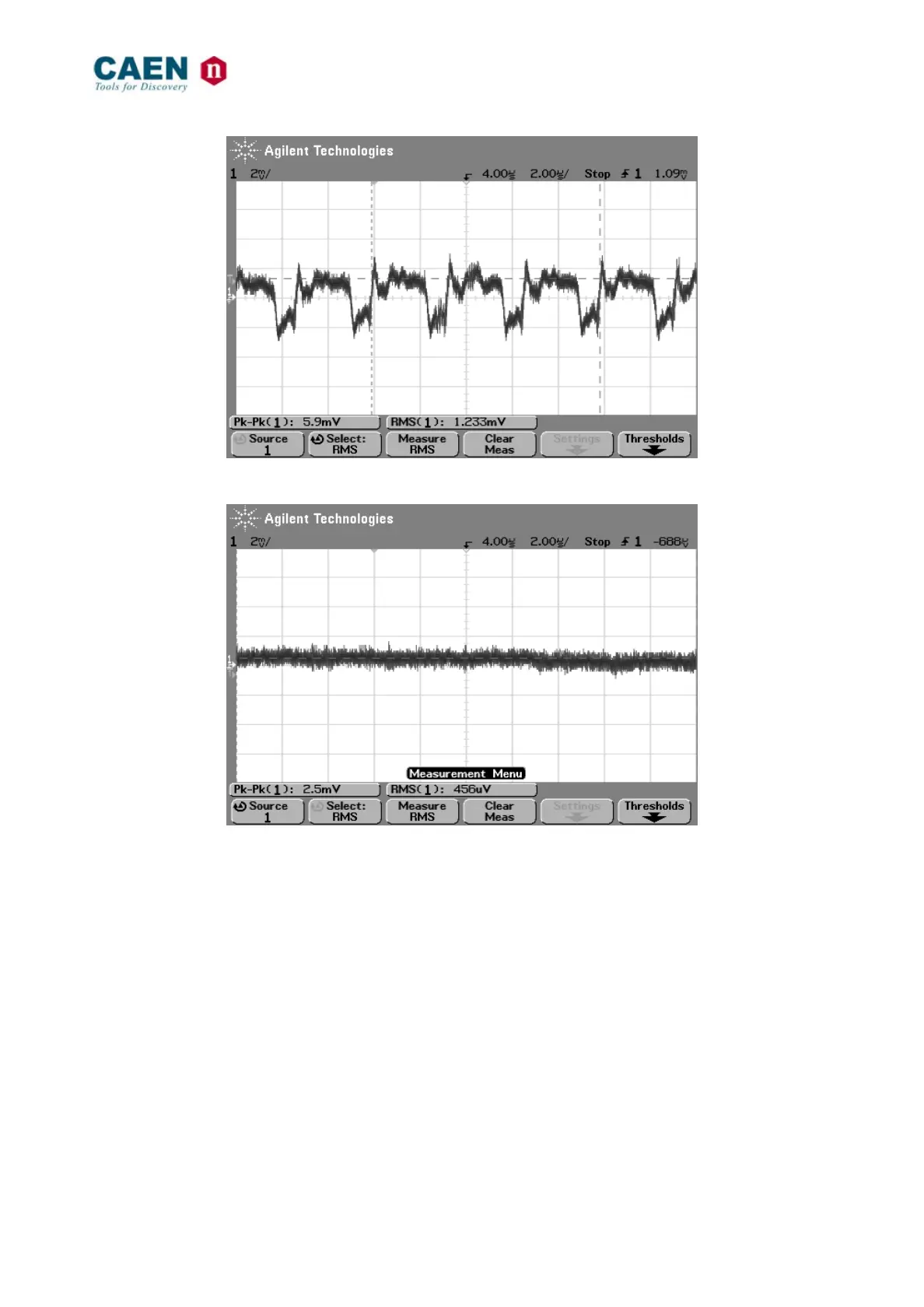

Fig. 3.5: Power Module ripple and noise measured at the output connector (@ ±6V, 90A)
Measured at load (0.5 m wire). Load conditions: full; parallel (X) 330µF and
1µF ceramic; conducting to case (Y) 100nF polyester each line. Voltage: 5V,
Current: 110A.
Fig. 3.6: Power Module ripple and noise Measured at load 0.5 m wire (@±6V, 90A)
