Caen NIM8304 - Fig. 1.1: the Mod. NIM8304 12-Slot 7 U NIM Crate; Fig. 1.2: Modularity of Mod. NIM8304 12-Slot 7 U NIM Crate

Document type:
Title:
Revision date:
Revision:
User's Manual (MUT)
Mod. NIM8304 12 slot 7U(5+2) Switching NIM Crate
14/04/2014
3
NPO:
Filename:
Number of pages:
Page:
00121/09:N8304.MUTx/03
NIM8304_REV3.DOC
44
8

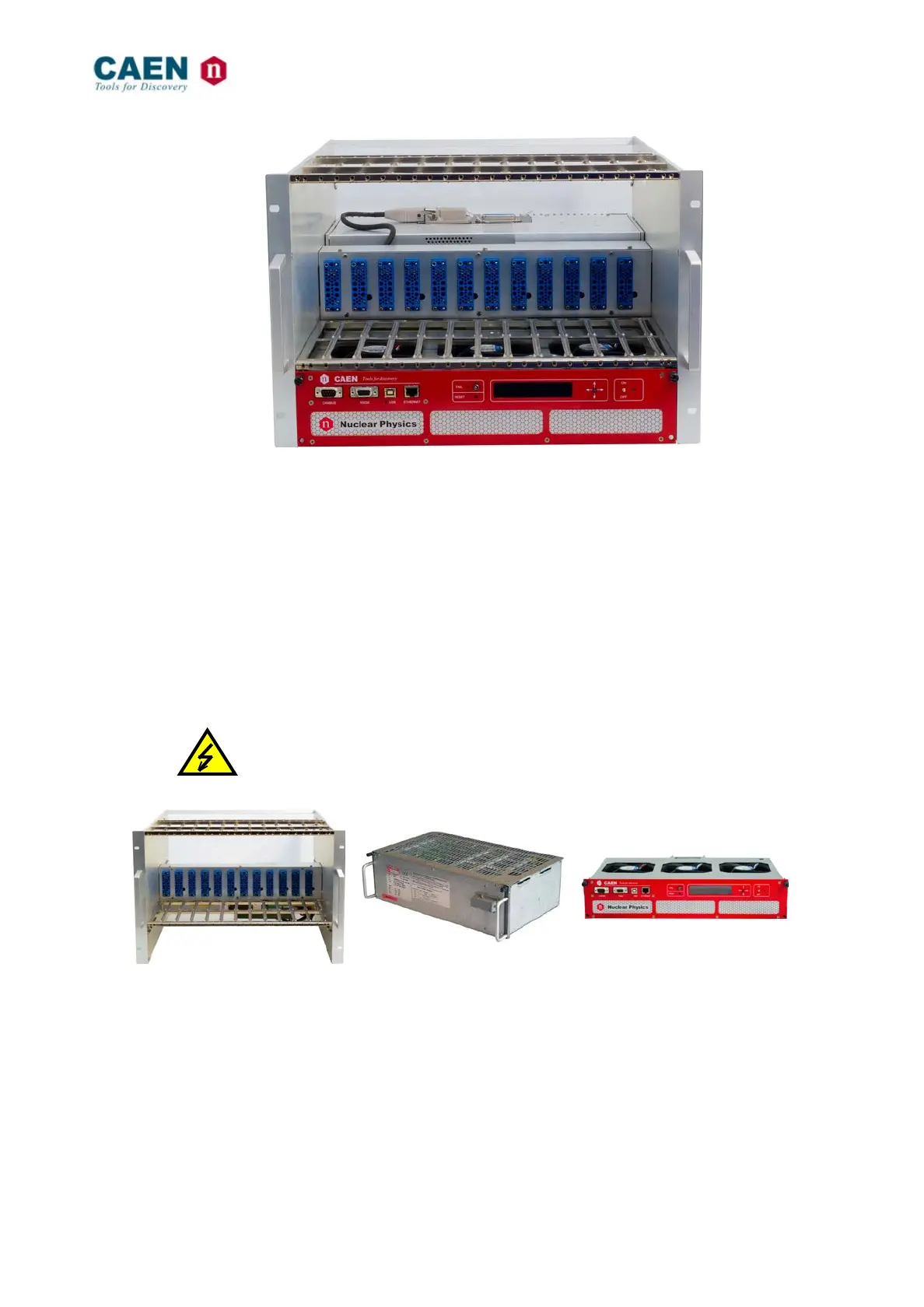

Fig. 1.1: The Mod. NIM8304 12-slot 7U NIM crate
The crate is based on a modularity concept and it has been divided into three detachable
parts
-
The Subrack (
Bin and NIM
connector
):
NIM 7U Bin, 12 slot
-
The Power Supply: NIM switching Power supply (±6V 90A, ±12V 23A,
±24V 11A)
-
The ventilation and control unit
(Fan Tray):
N8304F Smart NIM Fan Unit, 3-
fold fan tray,
alphanumeric display with TCP-IP, CANbus, RS232
and USB 2.0
The Unit is powered by 92 ÷264 Vac, 50 ÷ 60 Hz, power factor 0.98% (230VAC).
Fig. 1.2: Modularity of Mod. NIM8304 12-slot 7U NIM crate
