User's Manual (MUT)
Mod. NIM8304 12 slot 7U(5+2) Switching NIM Crate
14/04/2014
3
NPO:
Filename:
Number of pages:
Page:
00121/09:N8304.MUTx/03
NIM8304_REV3.DOC
44
18

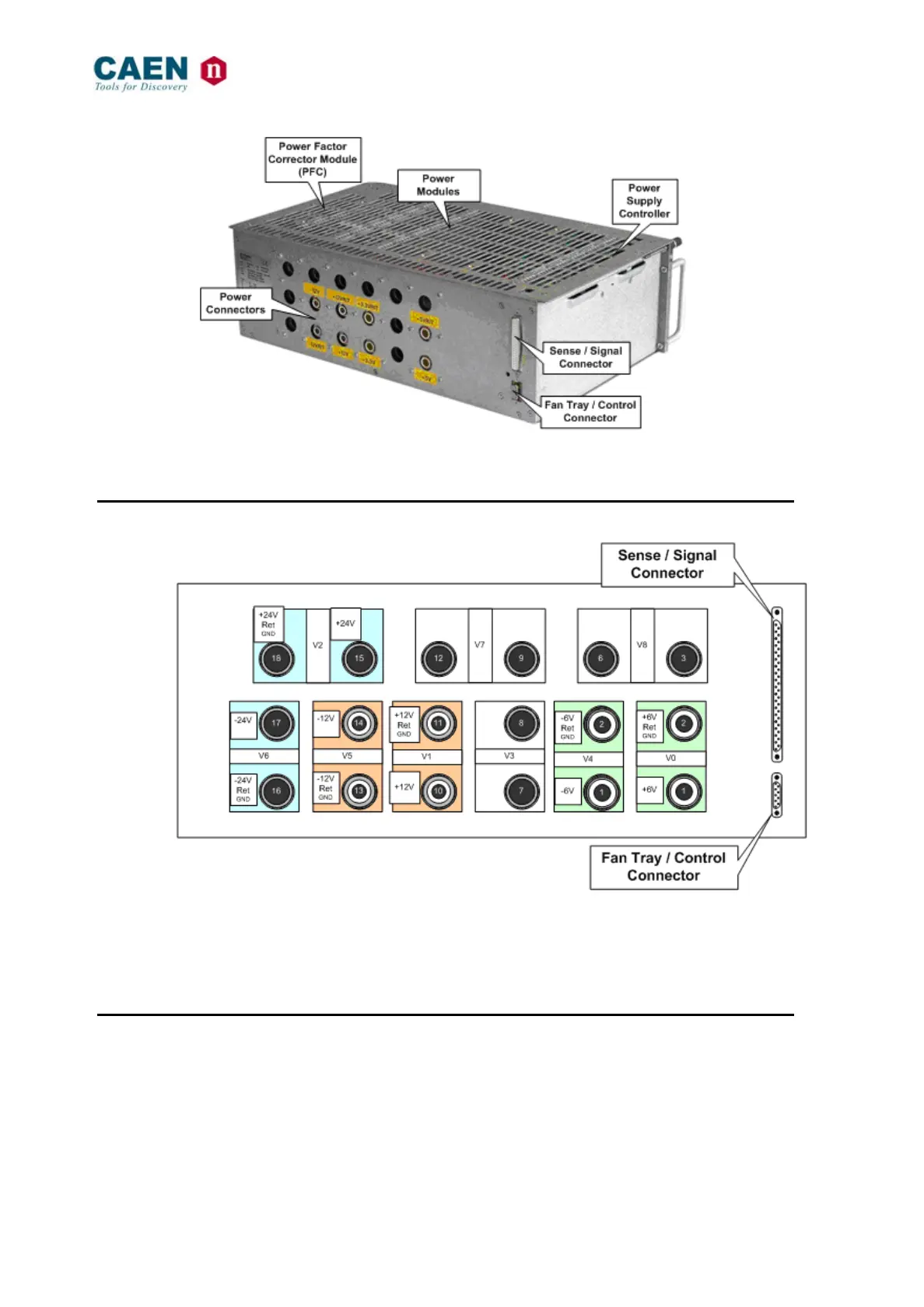

Fig. 3.2: Mod. NIM8304 Power Supplies components
3.1 Power Connector section
Fig. 3.3: Power Connector configuration
3.2 Power Factor Correction Module (PFC)
The mains input includes a Power Factor Correction Module (PFC) with main filters, soft
start- circuit and fuses. an external fuse or circuit breaker has to be installed with a
capability of 16A.
The AC input module is permanently powered after connecting the unit to the AC- mains.
Switch ON/OFF activates only the DC on/off function of the power inverter modules.
