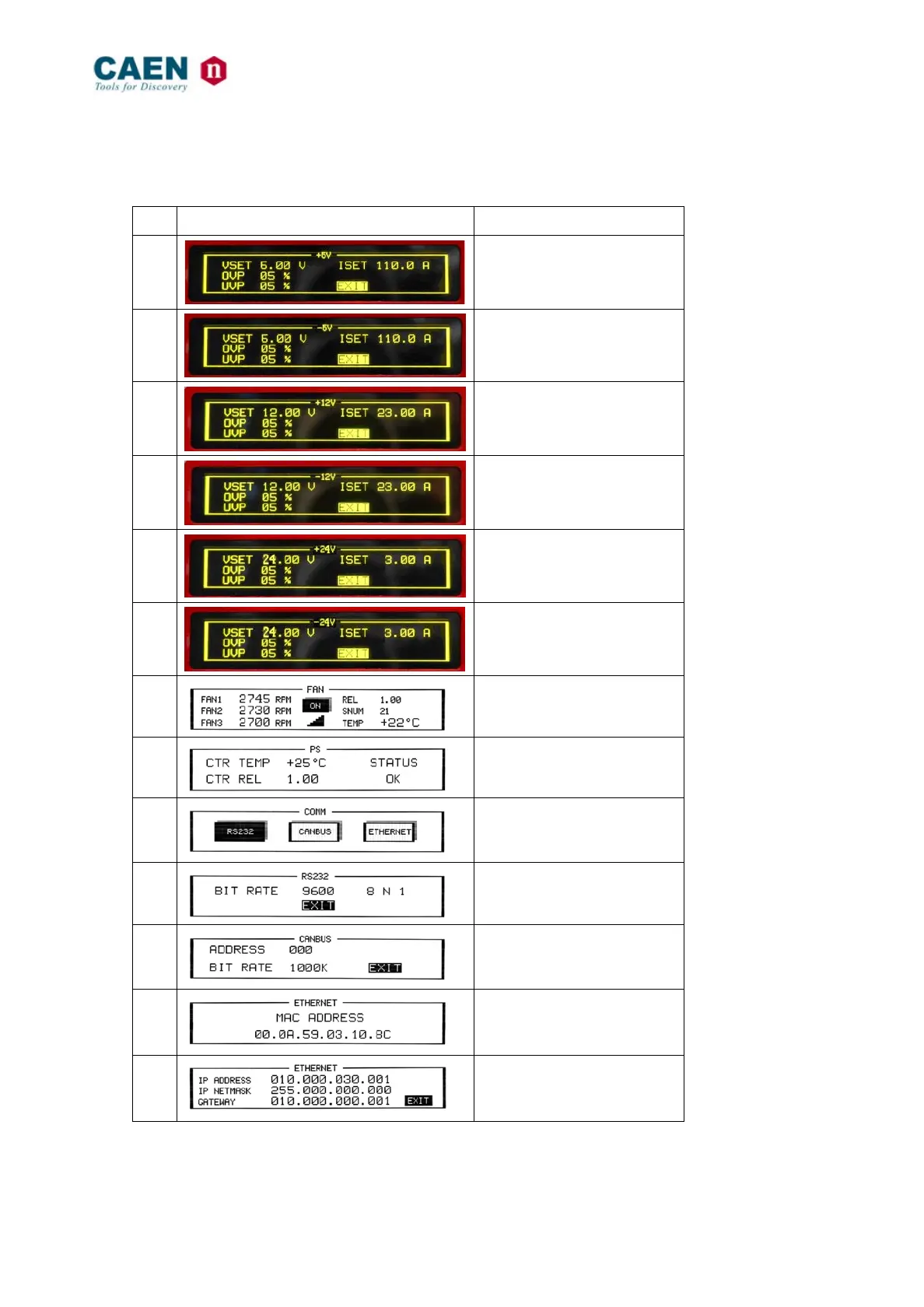

Table 5.2: Mod. NIM8304 FAN Tray Sub Menu
Nr. Display Description
10.
+6 V Set
11.
- 6V Set
12.
+12 V Set
13.
- 12 V Set
14.
+24 V Set
15.
- 24 V Set
16.
FAN Set
17.
Power Supply Status
18.
Communication
19.
Communication
RS232
20.
Communication
CAN bus
21.
Communication
Ethernet
Mac Address (show 5 sec)
22.
Communication
Ethernet
status and set value
