Digit CAEN +
<Cr> the following menu opens:

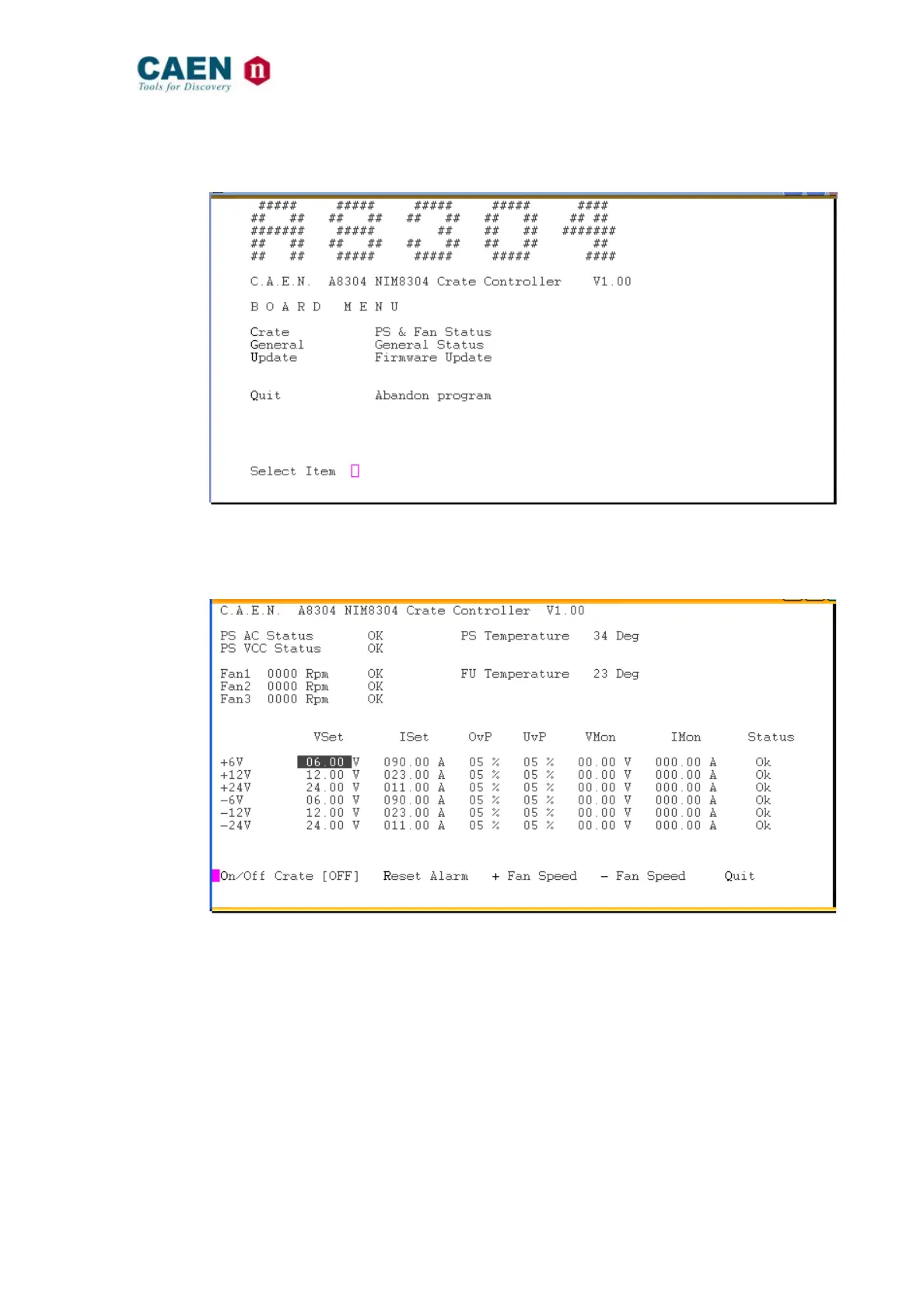

Fig. 6.7: Mod. NIM8304 Terminal Menu window
- Update option is available only with Ethernet connection
by pressing “C”, it opens:
Fig. 6.8: Mod. NIM8304 PS & Fan Status Menu window
by pressing “G”, it opens:
