Caen NIM8304 - 3 Power Supply Section; Fig. 3.1: Mod. Nim8304 P

Document type:
Title:
Revision date:
Revision:
User's Manual (MUT)
Mod. NIM8304 12 slot 7U(5+2) Switching NIM Crate
14/04/2014
3
NPO:
Filename:
Number of pages:
Page:
00121/09:N8304.MUTx/03
NIM8304_REV3.DOC
44
17
3. Power Supply section
The CAEN NIM Power Supply is micro-processor controlled switching power supply,
which provides extremely low noise output voltage.

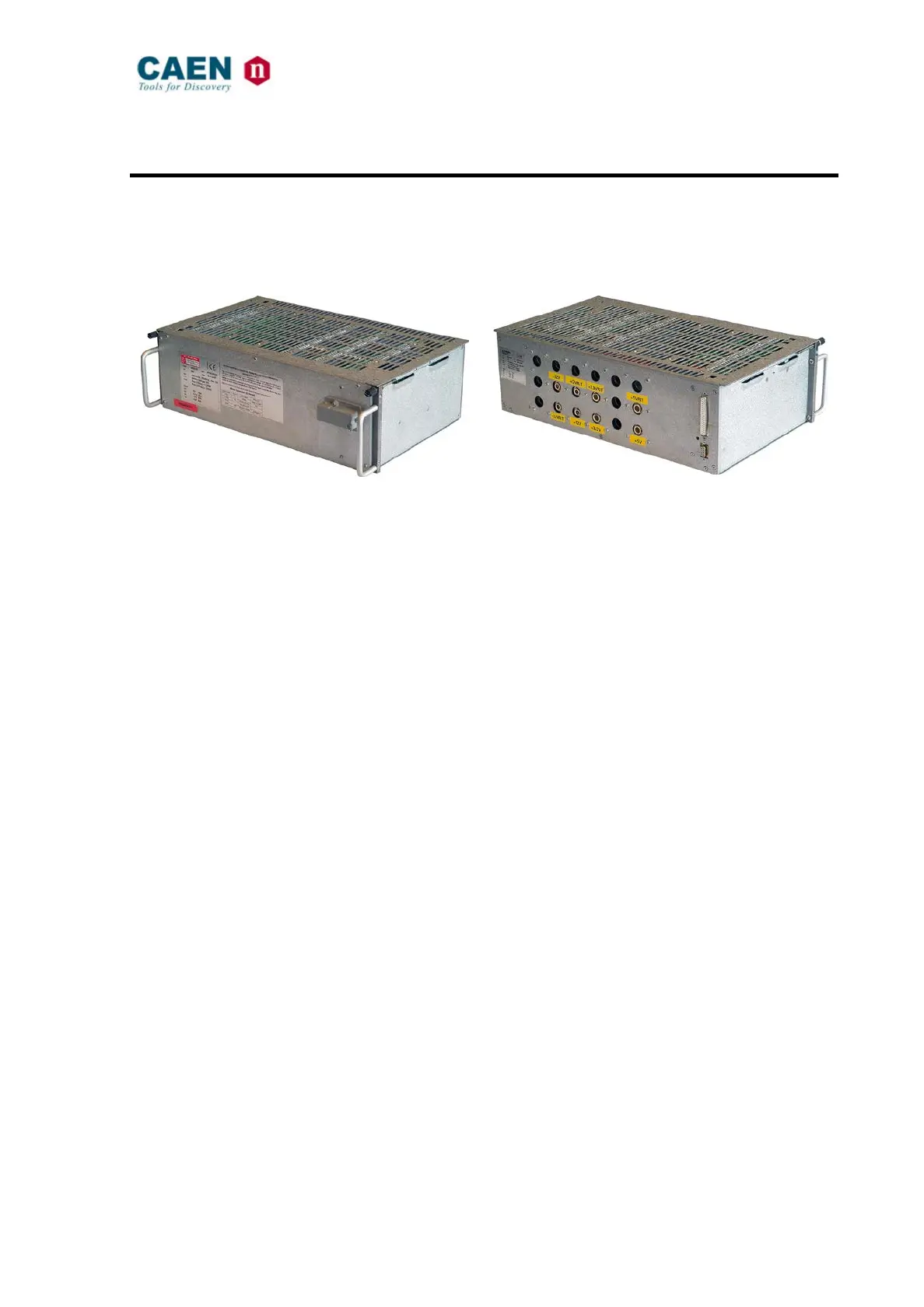

Fig. 3.1: Mod. NIM8304 Power Supplies Front an Rear view
the NIM8304 power supplies are composed of the following modules ( see Fig. 3.2.)
- Power Factor Correction module (PFC)
- Power modules
- Power supply controller
The power modules are readily replaceable. The maximum output power is 1100÷2200W
with 92 ÷ 264 V input voltage.
