User's Manual (MUT)
Mod. NIM8304 12 slot 7U(5+2) Switching NIM Crate
14/04/2014
3
NPO:
Filename:
Number of pages:
Page:
00121/09:N8304.MUTx/03
NIM8304_REV3.DOC
44
23

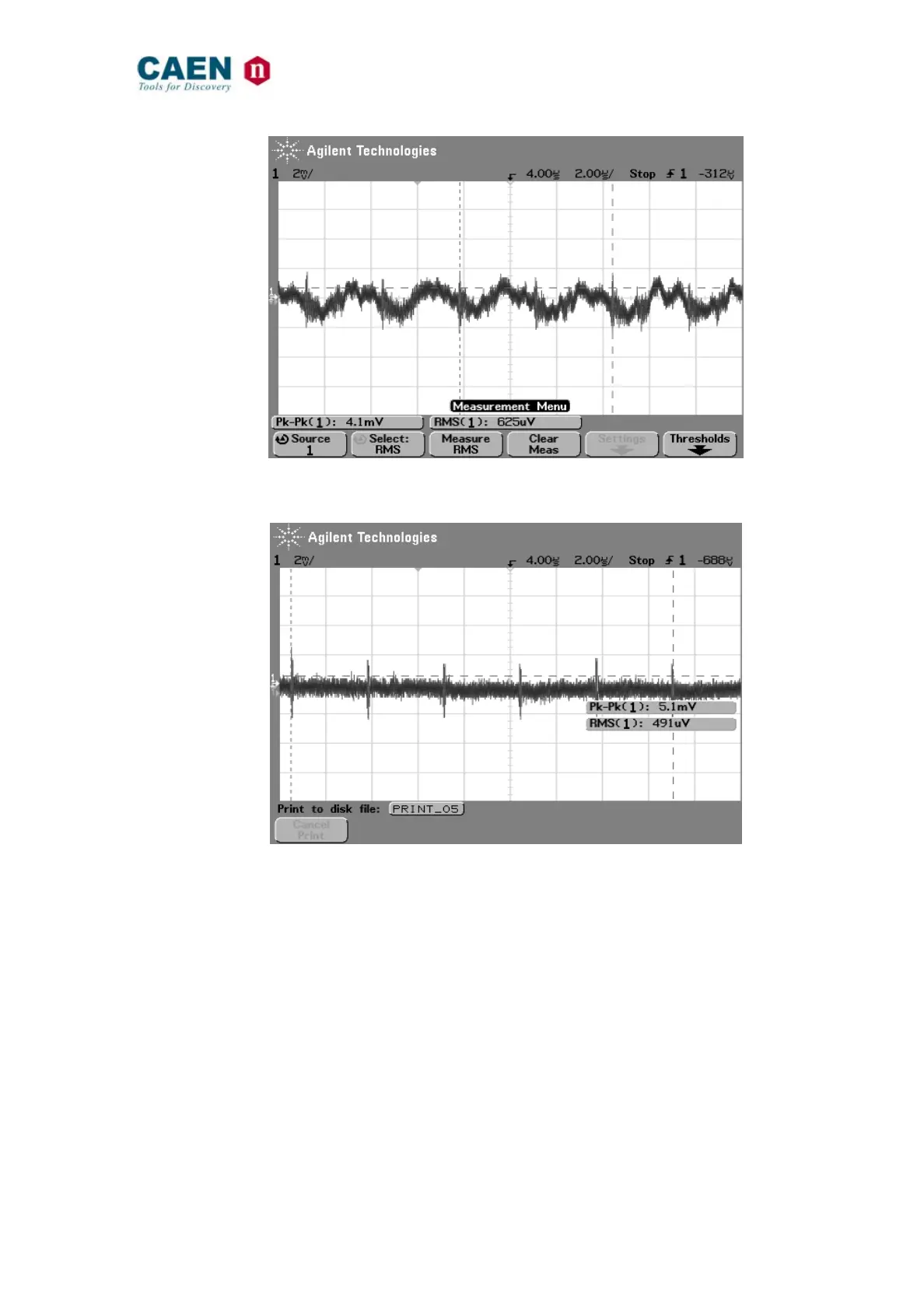

Fig. 3.7: Power Module ripple and noise at output connector (@ ±12V, 23A; @ ±24V, 11A)
Measured at load (0.5 m wire). Load conditions: full; parallel (X) 330µF and
1µF ceramic; conducting to case (Y) 100nF polyester each line. Voltage: 12V,
Current: 20A.
Fig. 3.8: : Power Module ripple and noise at load 0.5 m wire (@ ±12V, 23A; @ ±24V, 11A)
