Instruction Manual, November 2016 Page 31
7.5. Replacing fuses
Procedure:
First disconnect the power cord from the mains connection of
the instrument.
Unlock the fuse holder over the main socket with help of a
small screwdriver. Press it on both sides of the holder into the
recess. Now you can pull out the fuse holder.
Replace the fuse(s). The label 250 V 1.0 AT (slow blow) is valid
over the full voltage range.
Push back the fuse box.
Reconnect the power cord.

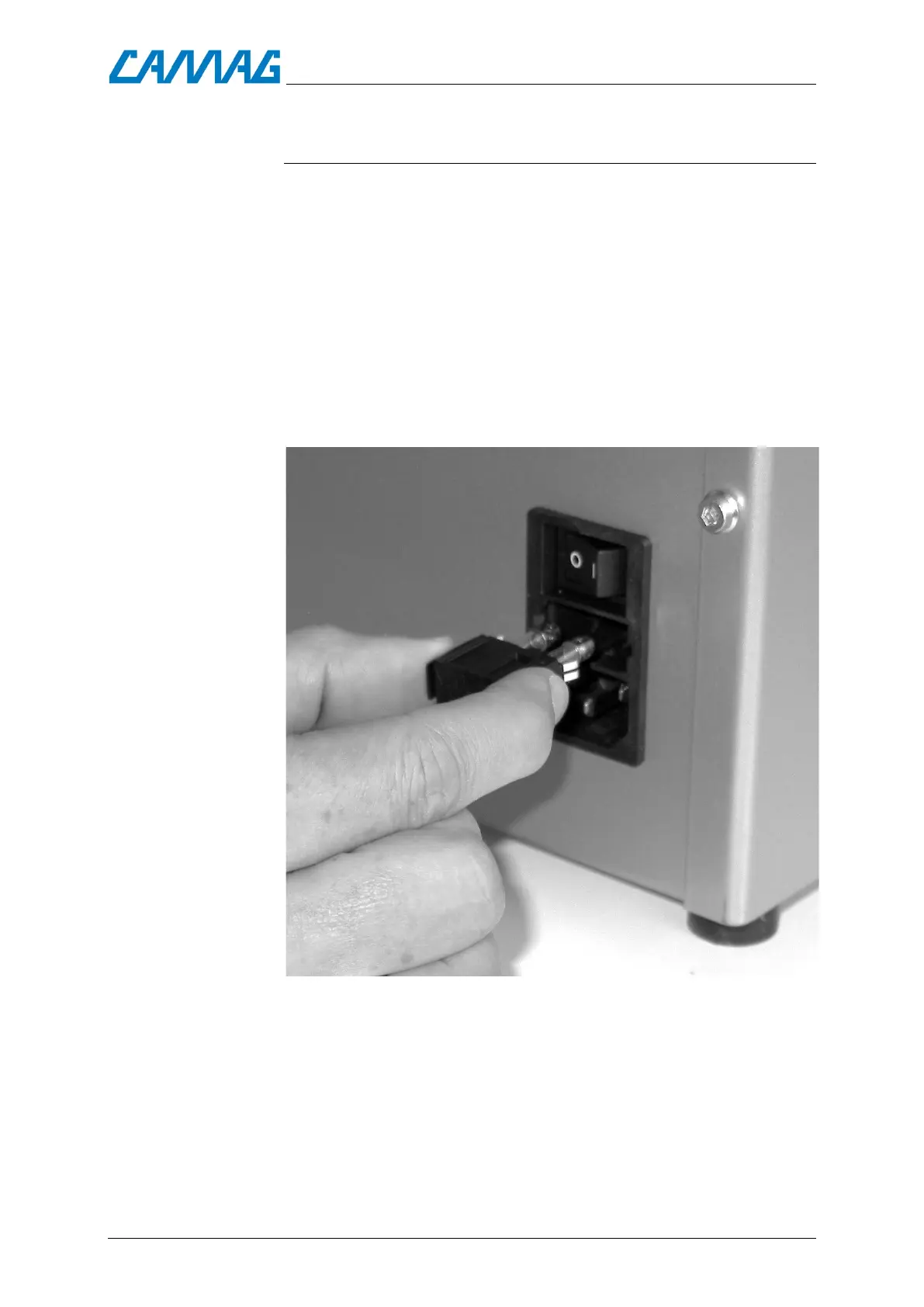

Fig.12: Mains connection, switch and fuse holder
