CAME FROG-P KIT User Manual

2.2 - Wiring the Motors
THE FROG MOTORS ALWAYS COME PREWIRED AND THE CONNECTIONS TO THE MOTOR
SHOULD BE MADE IN THE JUNCTION BOXES AT THE BASE OF THE GATE POST (I.E OUT OF
THE GROUND OR FOUNDATION CASING) AS SHOWN IN FIG 3.
UNDER NO CIRCUMSTANCES MUST THE MOTOR BE DISCONNECTED FROM THE GEARBOX
AS THIS WILL INVALIDATE THE WARRANTY.

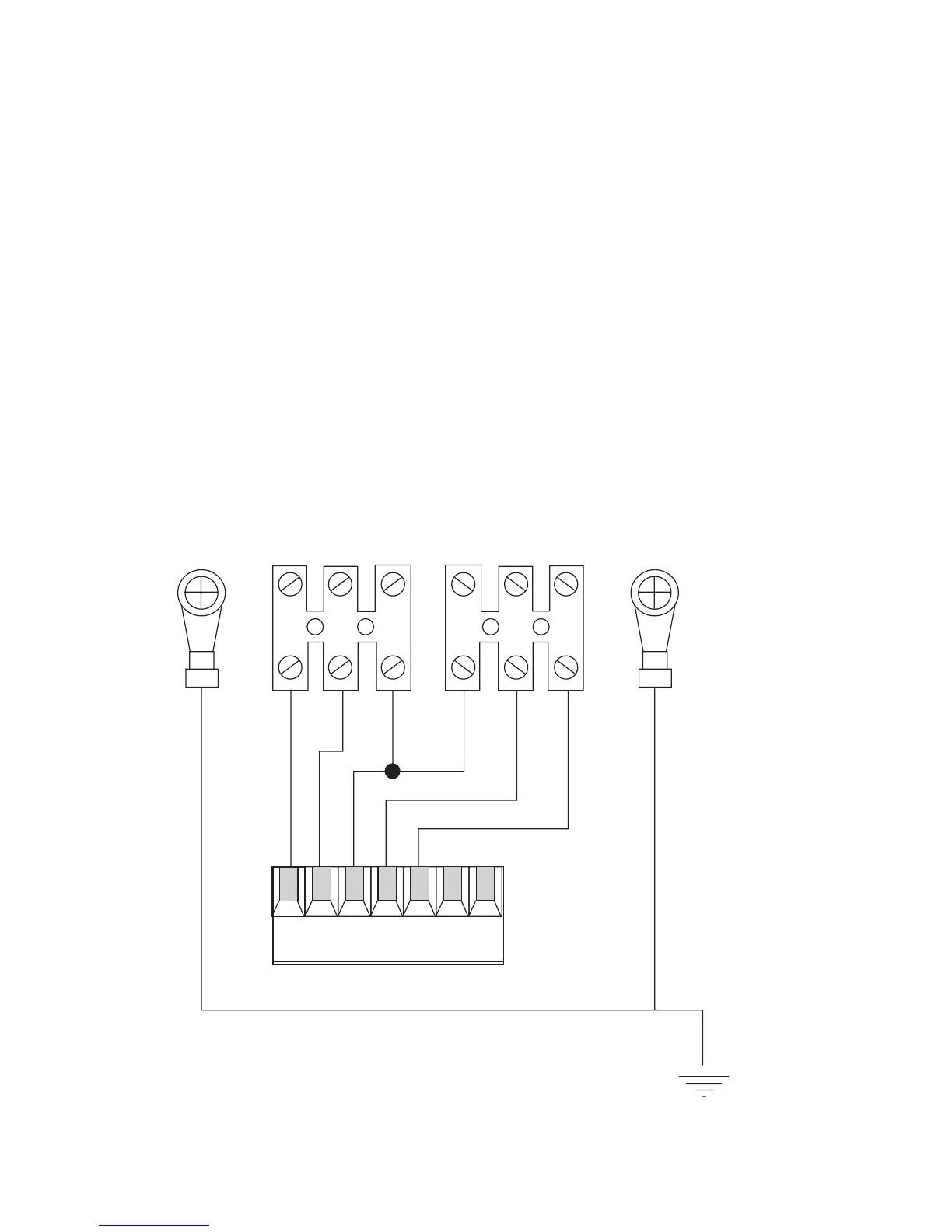

WHEN CONNECTING THE MOTORS TO THE CONTROL PANEL THE BLUE WIRE ON THE
MOTOR IS THE COMMON WIRE AND IS ALWAYS TO THE “W” ON THE TERMINAL STRIP IN
THE CONTROL PANEL. THE BROWN AND BLACK WIRES ARE THE MOTOR DIRECTIONS AND
ARE CONNECTED TO “U+V” FOR MOTOR 1 OR “X+Y” FOR MOTOR 2.
ENSURE BOTH MOTORS ARE ADEQUATELY EARTHED.
U V W X Y E E3
U V W U V W
MOTOR 1 MOTOR 2
MOTOR
EARTH
MOTOR
EARTH
9
WV U
