1.4 - Installing the Motors
INSERT THE MOTORS ONTO THE STUDS IN THE CASING. IF THE GATES ARE HUNG
BETWEEN THE POSTS AND THE GATES OPEN INWARDS THE MOTORS NEED TO BE
POINTING INTO THE PROPERTY.

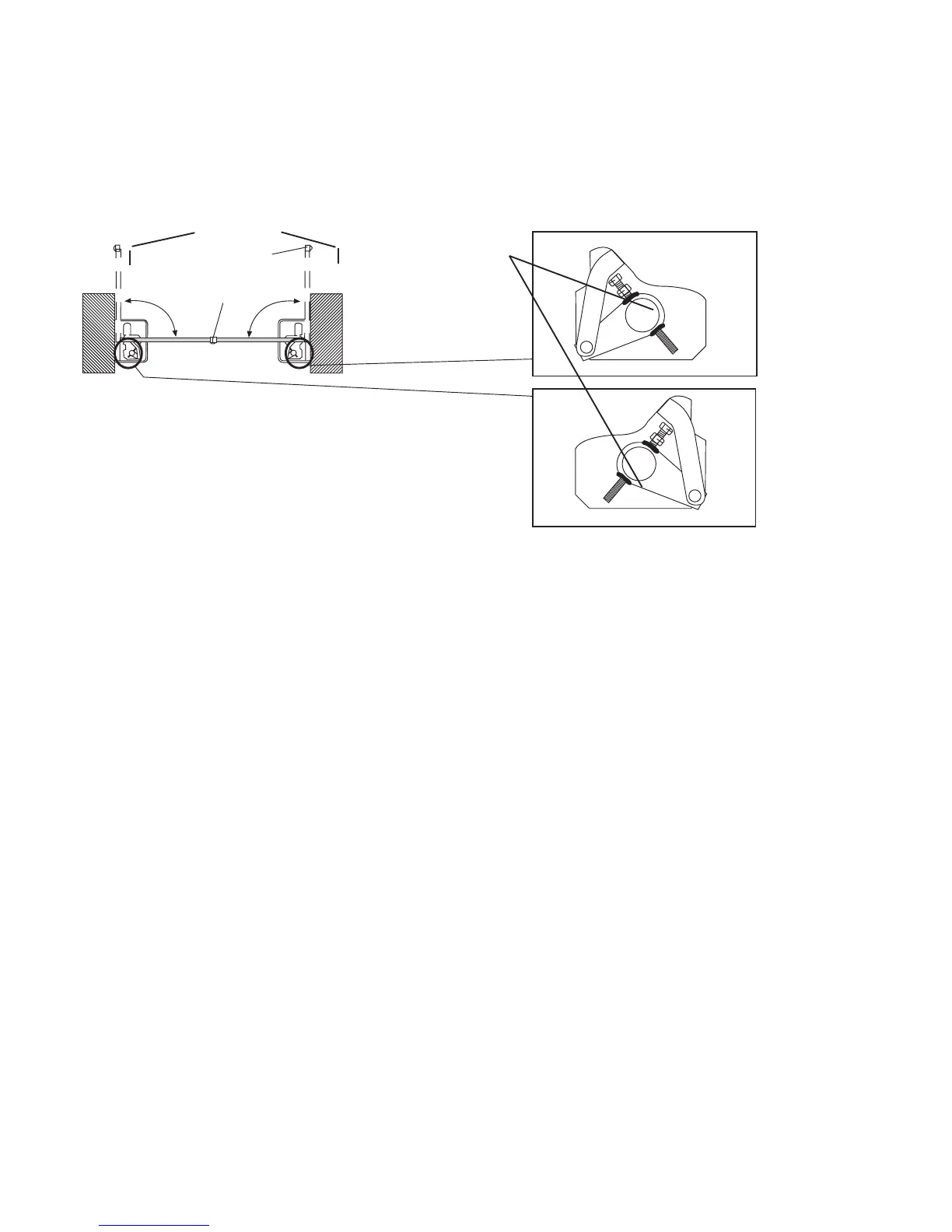

A CENTRE STOP AND BACK STOPS ARE
ALWAYS ADVISED AS WELL AS MOTOR
ADJUSTERS
BACKSTOP
MOTOR STOP
ADJUSTERS
IF THE GATES ARE HUNG ON THE BACK OF THE POSTS THE MOTORS NEED TO BE
POINTING TOWARDS EACH OTHER.
1.5 - Hanging the Gates
BEFORE ATTACHING THE GATES ENSURE THAT THE GATE PIVOT POINT ARE ADEQUATELY
GREASED.
WHEN HANGING THE GATE ENSURE THAT THEY ARE SQUARE AND LEVEL BEFORE
WELDING THE GATE TO THE FROG SHOE. WHEN WELDING THE GATE TO THE FROG SHOE
DO NOT WELD OVER THE THREADED HOLES IN THE SHOE.
WHEN HANGING WOODEN GATES IT IS NECCESSARY TO CREATE A
U-SHAPED CARRYING SHOE IN MILD STEEL WHICH CAN BE WELDED TO THE TOP
SURFACE OF THE FROG SHOE. THEN THE WOODEN GATE CAN BE BOLTED INTO POSITION
WITH THE U-SHAPED CARRYING SHOE CLAMPING TO THE BOTTOM OF THE GATE.
