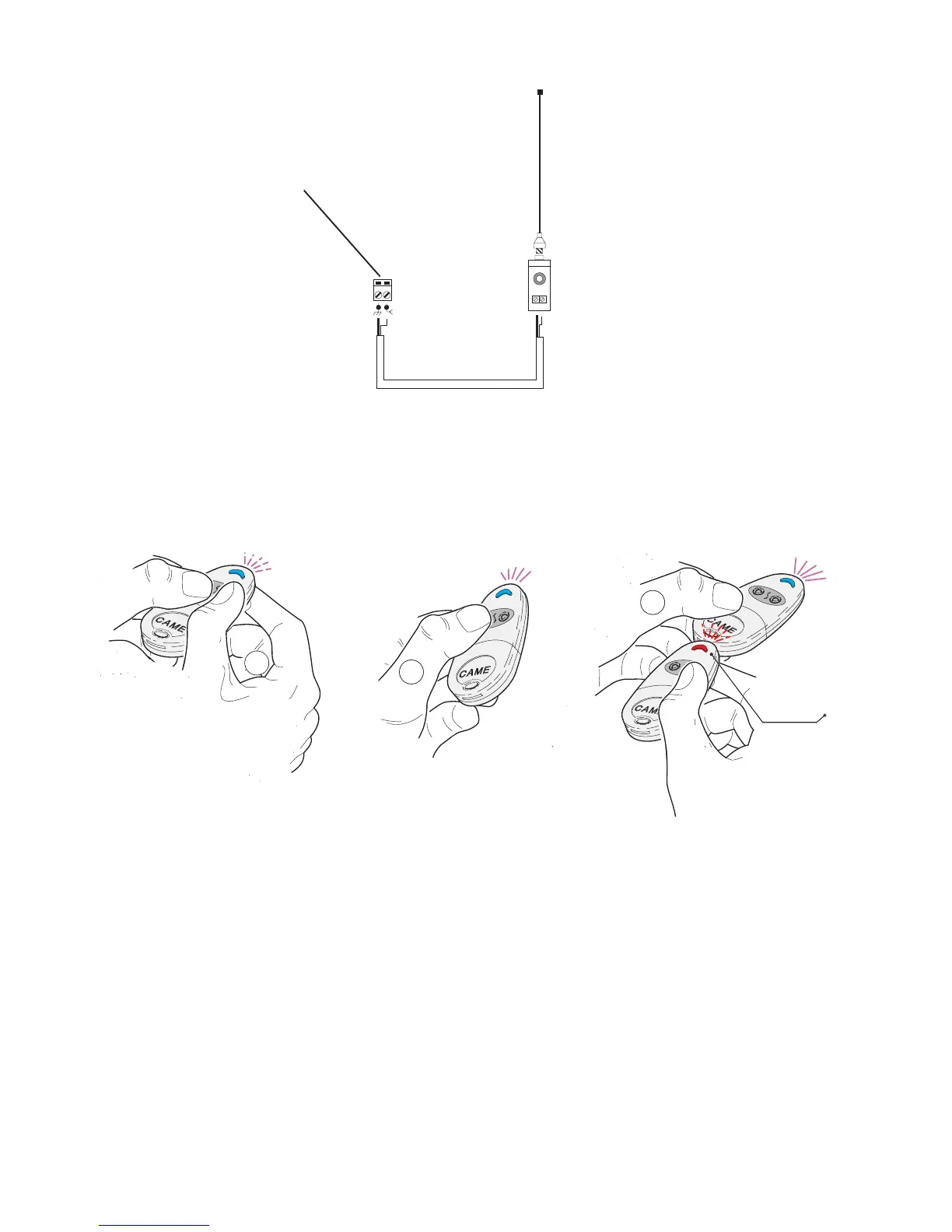

2.5 - Wiring in the Tuned Antenna
2.6 - Coding the Remote Control
ANTENNA WIRING
POINT
2.7 - Powering up the Control Panel
CONNECT PROTECTED MAINS POWER TO TERMINALS L1 + L2 IN THE CONTROL PANEL (L2
BEING LIVE!). ENSURE THAT THE CONTROL PANEL IS ADEQUATELY EARTHED.
11
1. PRESS THE 2 KEYS TOGETHER UNTIL THE LED STARTS FLASHING QUICKLY.
2. PRESS THE BUTTON THAT YOU WANT TO PROGRAMME (THE LED COMES ON
CONSTANT).
3. WITHIN 10 SECONDS PLACE AN ACTIVE REMOTE CONTROL AT THE BASE OF THE
REMOTE AND TRANSMIT FOR A FEW SECONDS. AFTER THE CODE HAS BEEN SAVED
THE LED WILL FLASH 3 TIMES. THE TRANSMITTER IS NOW READY FOR USE. TO
PROGRAMME THE SECOND BUTTON REPEAT 1, 2 AND 3.
