CAME FROG-P KIT User Manual

5.8 - Electrical Connections
L1 L2 U V W X Y E1 10 11 1 2 3 5 7 C1
L1
L2
U
W
V
X
W
Y
W
E1
10
5
10
11
1
2
2
3
2
7
2
C1

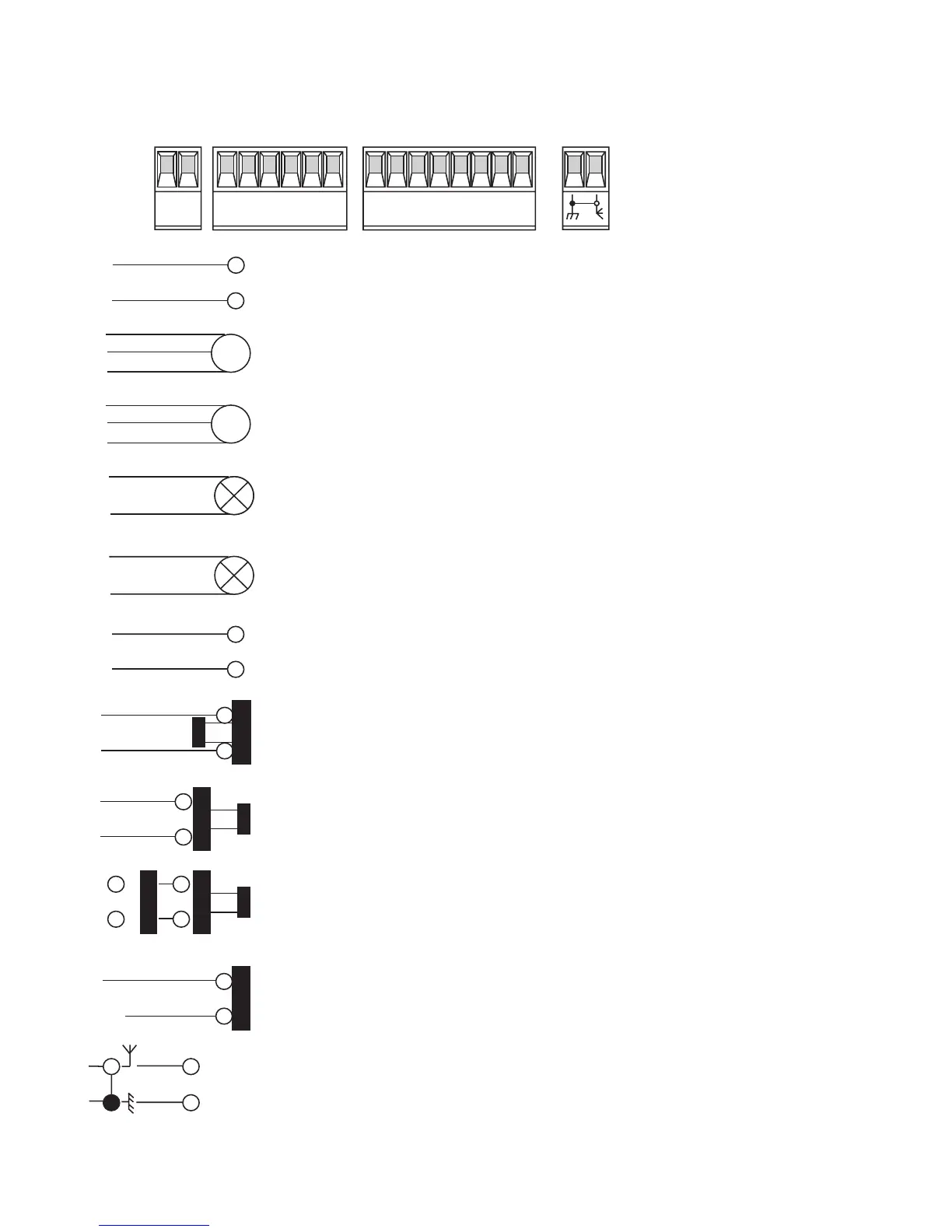

Power supply for control panel
Connection for motor one (delay in opening)
Connection for motor two (delay on closing)
230V (A.C) 25W max output in motion (e.g. flashing light)
“Gate Open” signal light (24V 3W max)
24V (A.C) Output power supply to accessories (max 20W)
Stop button (N.C)
Open only button (N.O)
Contact for radio and or pushbutton control for open-close
Contact (N.C) for re-opening during closing
Antenna connection
