CAME FROG-P KIT User Manual

1.6 - Fitting the Gate Lock
6

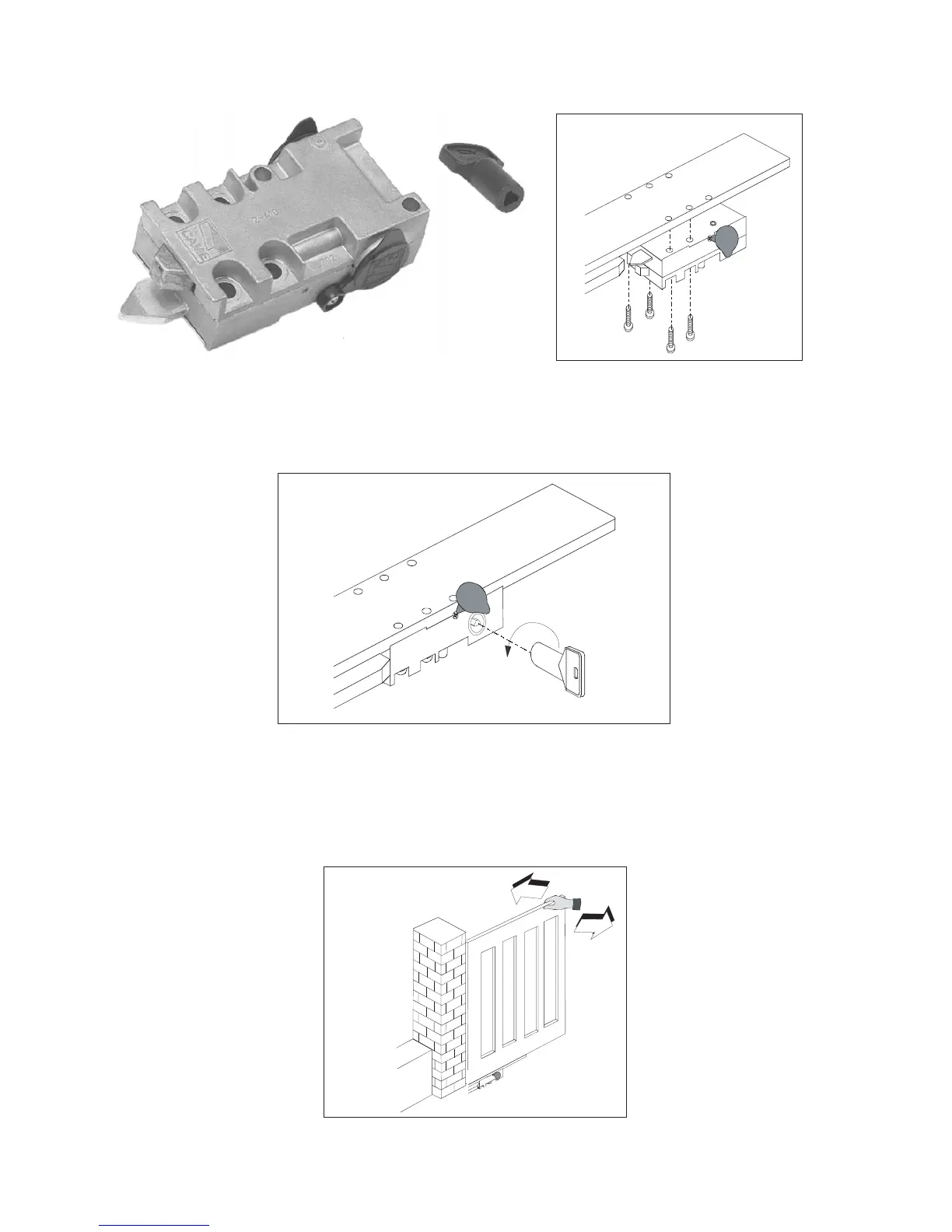

Secure the unlocking device to the FROG shoe with the 4 allen bolts provided.
To release the gate, raise the protective cap, insert the three sided key and turn it to activate the
mechanism. Simultaneously push and/or pull the gate. Remove the key and replace the protective cap.
To re-engage the gate, reposition the gate and the mechanism will automatically engage it.
Fig. 1
Fig. 2
Unlocking
Fig. 3
