CAME FROG-P KIT User Manual

1.2 - Basic Cable Layout

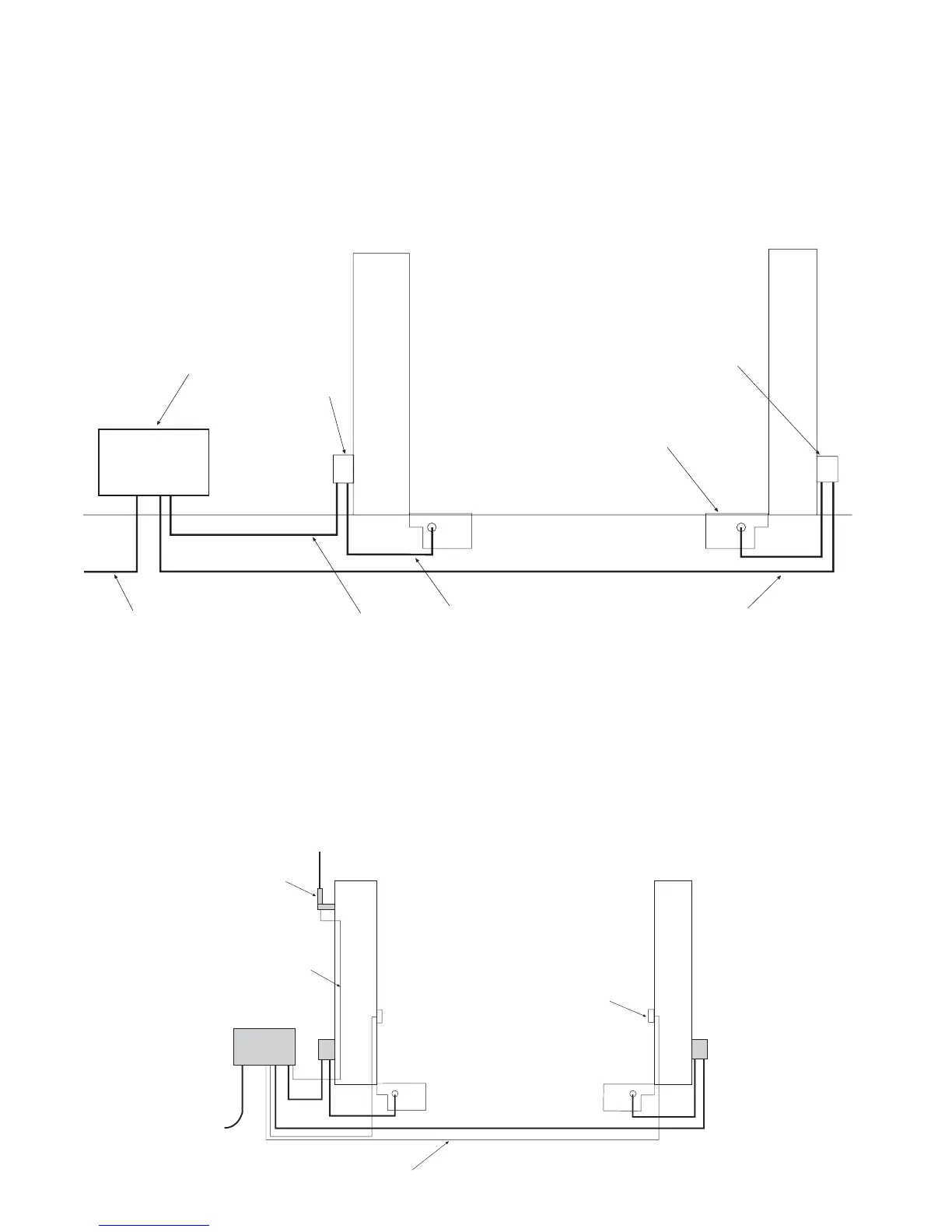

THIS DIAGRAM DETAILS THE BASIC CABLE LAYOUT FOR A PAIR OF MOTORS.
THE POWER SUPPLY TO THE CONTROL PANEL SHOULD BE LIVE AND PROTECTED IN
ACCORDANCE WITH THE 16TH EDITION ELECTRICAL REGULATIONS. THE SUPPLY SHOULD
BE RATED AT A MINIMUM OF 6 AMPS. WHEN INSTALLING WIRES OUTDOORS THE CABLE
APPROACH TO ALL DEVICES MUST BE FROM BELOW TO CREATE A “DRIP-LOOP” AND
THEREBY AVOID UNNECCESSARY WATER INGRESS.
1.3 - Low Voltage Cable Layout
THIS DIAGRAM DETAILS THE BASIC CABLE LAYOUT FOR A PAIR OF MOTORS.
THE POWER SUPPLY TO THE CONTROL PANEL SHOULD BE LIVE AND PROTECTED IN
ACCORDANCE WITH THE 16TH EDITION ELECTRICAL REGULATIONS. THE SUPPLY SHOULD
BE RATED AT A MINIMUM OF 6 AMPS. WHEN INSTALLING WIRES OUTDOORS THE CABLE
APPROACH TO ALL DEVICES MUST BE FROM BELOW TO CREATE A “DRIP-LOOP” AND
THEREBY AVOID UNNECCESSARY WATER INGRESS.
CONTROL PANEL
240V A.C.
JOINT BOX
4 CORE SWA 1.5mm
MOTOR CABLE
IN DUCTING
JOINT BOX
4 CORE SWA 1.5mm
FROG UNDERGROUND
CASING
8 CORE 0.2mm STRANDED TO
ALL SAFETY BEAMS
COAX CABLE
TUNED
ANTENNA
SAFETY
BEAM
4
