CAME FROG-P KIT

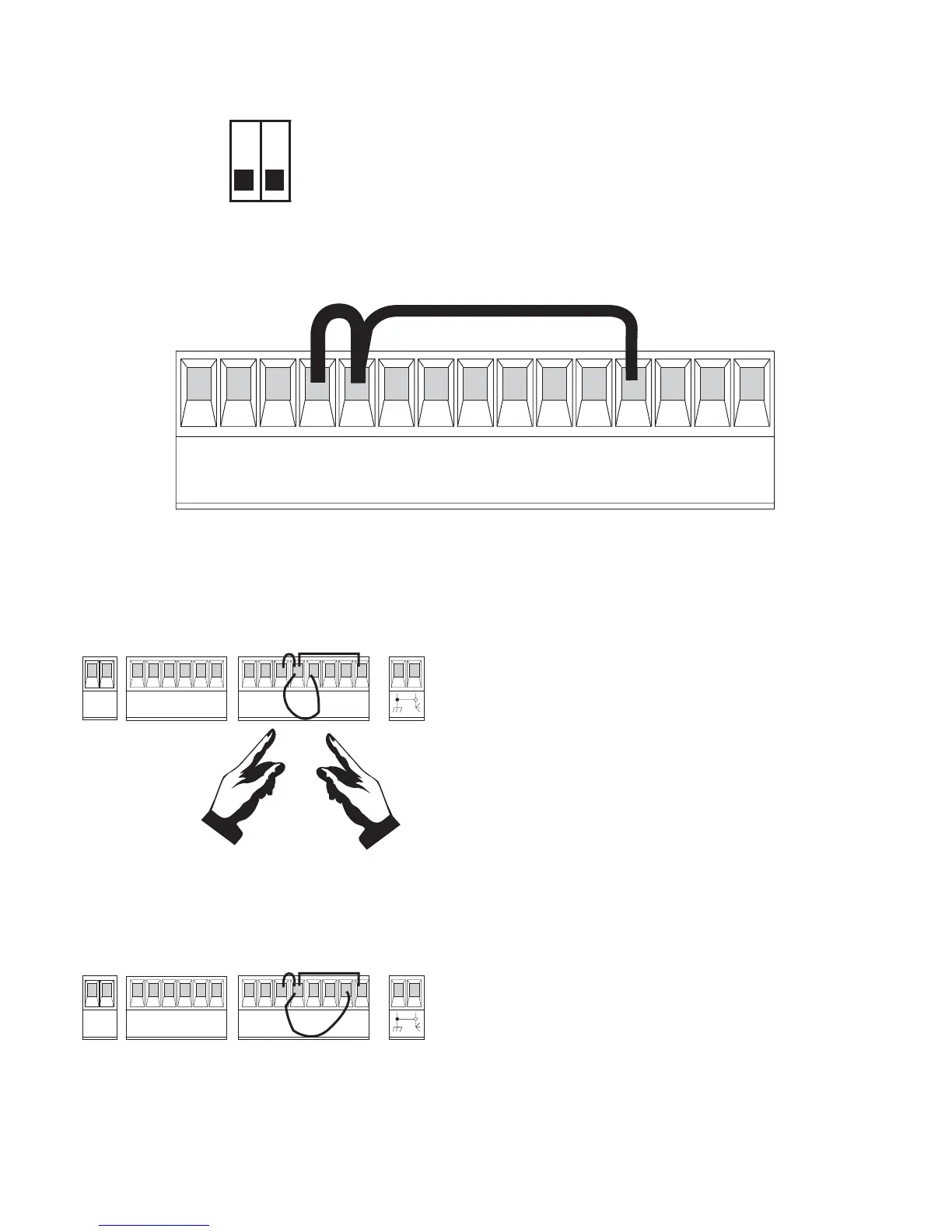

5. SELECT DIPSWITCHES 1 & 2 OFF FOR
COMMISSIONING
6. ENSURE HARD WIRE LINK IS FITTED
BETWEEN TERMINALS 1 & 2 AND
2 & C1
1. MOMENTARILY PULSE TERMINALS
2 & 3 WITH A PIECE OF WIRE
TRAILING FROM TERMINAL 2 AND
MOMENTARILY TOUCHING
TERMINAL 3.
THE GATES SHOULD START TO
OPEN. IF THEY START TO CLOSE
TURN THE POWER OFF TO THE
CONTROL PANEL AND CHANGE
AROUND EITHER U-V (MOTOR 1) OR
X-Y (MOTOR 2) TO CHANGE
THE MOTOR DIRECTION.
2. ONCE YOU HAVE PROVED THE
MOTOR DIRECTION USE
TERMINALS 2 & 7 TO OPEN AND
CLOSE THE GATES WITH A
TRAILING WIRE ONCE AGAIN INTO
TERMINAL 2, MOMENTARILY
TOUCHING TERMINAL 7.
ON
OFF
1 2
10 11 S 1 2 3 3P 4 5 7 2 C1 CX B1 B2
L1 L2 U V W X Y E1 10 11 1 2 3 5 7 C1
L1 L2 U V W X Y E1 10 11 1 2 3 5 7 C1
3.2 - Opening & Closing the Gates
14
THE LINK BETWEEN 1 AND 2 MUST REMAIN IN.
