CAME FROG-P KIT - 5.3 - Operating Limits

5.4 - Motor Torque Settings
ZA4

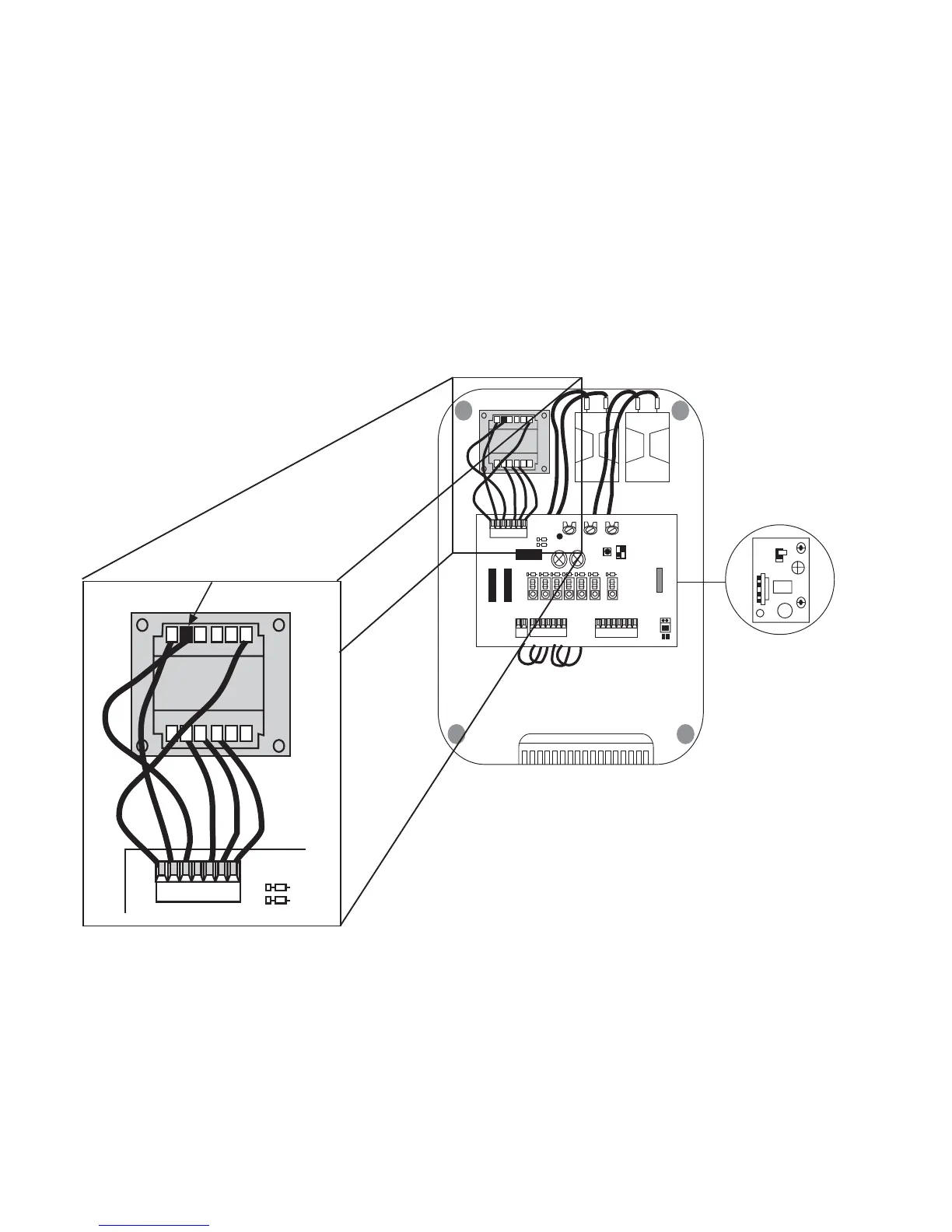

To vary the motor torque, move the indicated spade connector to one of the four
position : 1=min, 4=max.
N.B. It is always best to start from position one and increase the torque setting as
required.
SEE ALSO PAGE 14
22
