2. TO SET THE TOTAL RUNNING TIME OF THE MOTORS, ADJUST POTENIOMETER TL TO
ALLOW THE MOTORS TO RUN FOR A FURTHER 5-7 SECONDS AFTER THE MOVEMENT
CYCLE HAS BEEN COMPLETED (I.E FULLY OPEN OR FULLY CLOSED).
3. CHECK THE SENSITIVITY OF THE
GATES BY TRYING TO PHYSICALLY
STOP THE GATE AND ADJUST THE
POWER SETTINGS ON THE TRANS
FORMER ACCORDINGLY. IF MORE
POWER IS NEEDED FOR HEAVIER
GATES THEN SWITCH OFF POWER
AND MOVE TRANSFORMER WIRE UP
TO SETTING 2. FOR RECHECKING
SENSITIVITY, REPEAT PROCESS UP
TO 3 OR 4 IF EVEN MORE POWER IS
NEEDED.
3.3 - Control Panel Adjustments

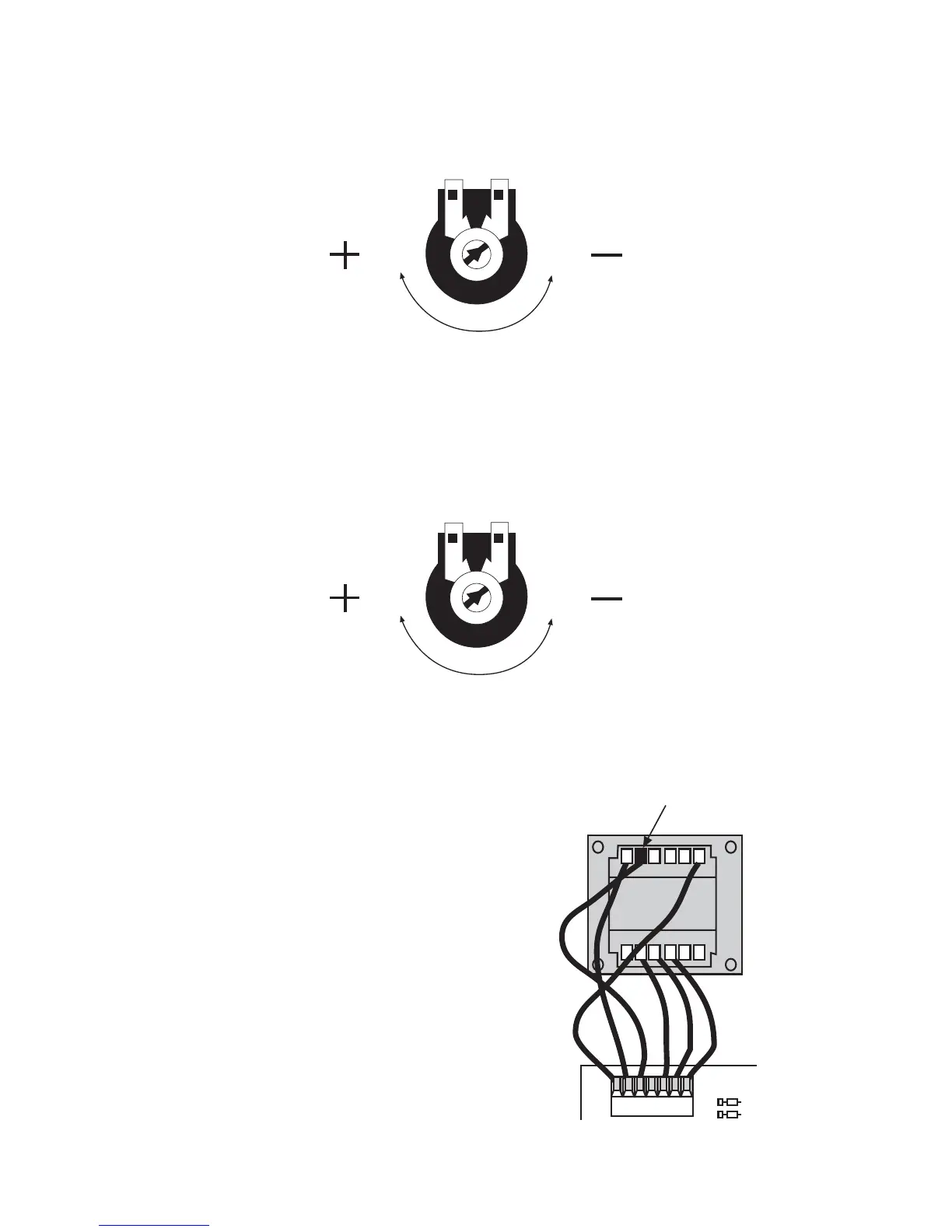

1. TO DELAY ONE GATE LEAF, ADJUST POTENIOMETER TR2M TO DELAY THE CLOSIN
OF GATE NO. 2 IN THE CLOSING CYCLE.
TRIMMER TR2M
TRIMMER TL
15
