CAME FROG-P KIT User Manual

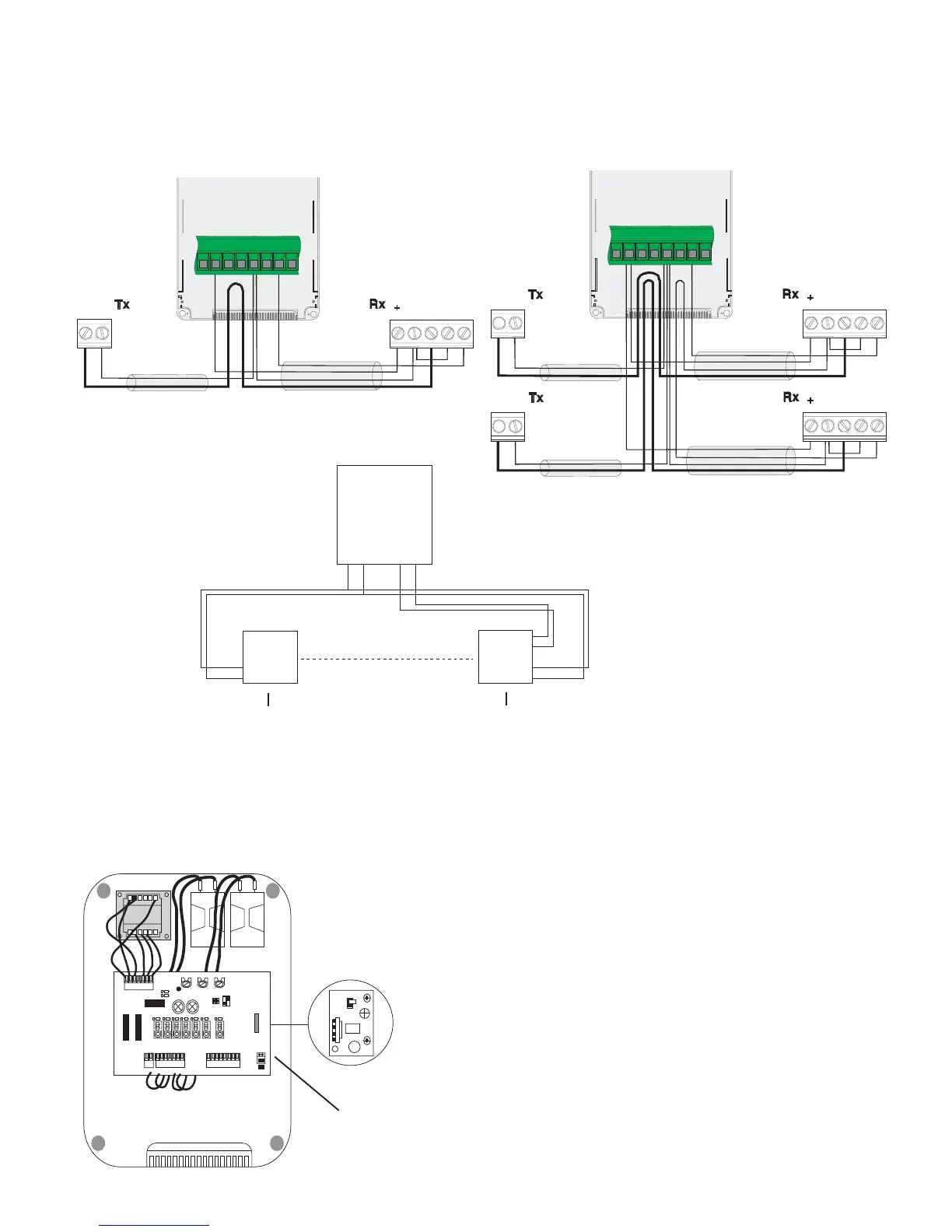

2.3 - Wiring in the Safety Photocells
SAFETY BEAMS SHOULD BE FITTED APPROXIMATELY 15 INCHES FROM GROUND LEVEL
2.4 - Inserting the Radio Frequency Card
SAFETY BEAMS SHOULD BE FITTED APPROXIMATELY 15 INCHES FROM GROUND LEVEL
CONTROL PANEL
10 11 2 C1
C
NC
RX
10
11
TX
10
11
ZA4
SAFETY
BEAM
TRANSMITTER
SAFETY
BEAM
RECEIVER
INSERT THE RADIO FREQUENCY CARD INTO
THE SMALL SOCKET ON THE CONTROL
PANEL (ENSURE THAT THE POWER IS
TURNED OFF TO THE CONTROL PANEL
BEFORE INSERTING THE FREQUENCY CARD)
ANTENNA WIRING
POINT
10
Connection for REOPENING
DURING CLOSURE
TX
2
10 2 TX C NC
-
10
2
C1
Connection of TWO COUPLES
for REOPENING DURING THE
CLOSURE
TX
2
10 2
TX
C NC
-
10 2 TX C NC
-
TX
2
10
2
C1
DIR SAFETY BEAMS
DOC SAFETY BEAMS
