Terminals 1 and 2, 2 and C1 are normally closed circuits and if
they are not used they must be linked
L1 L2 U V W X Y E1 10 11 1 2 3 5 7 C1
Co-axial cable
230V A/C
M1
Single-Phase motor
Single-Phase motor with leaf delay
on closing cycle
M2
11 TX
10
Safety beams which are connected to obtain Re-opening
During the closing cycle
RX
11
10
C
NC

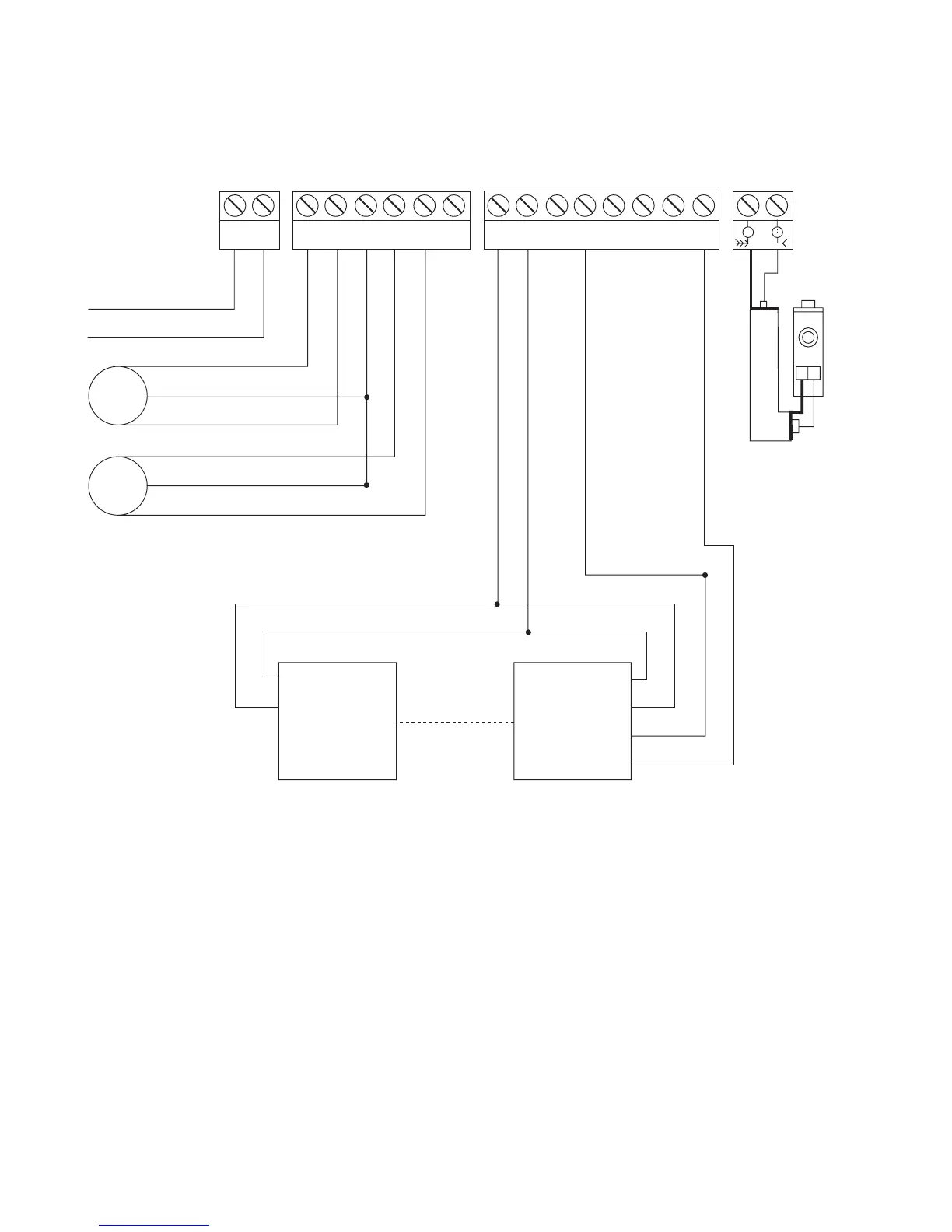

5.6 - ZA4 Wiring Diagram
25
NB - THIS DIAGRAM SHOWS THE WIRING OF DOC PHOTOCELLS.
