CAME FROG-P KIT User Manual

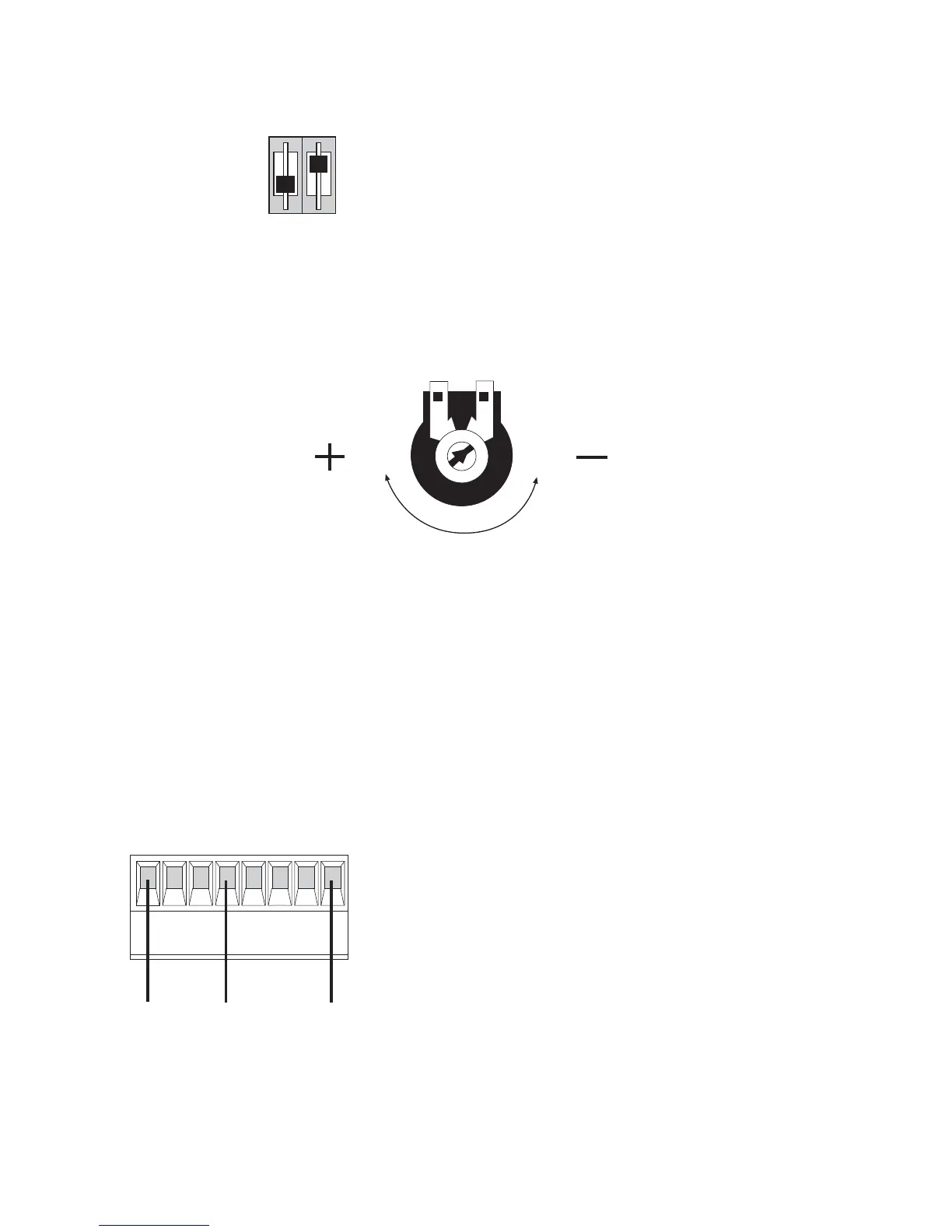

1. TO SELECT AUTOMATIC CLOSING,
SELECT DIPSWITCH 2 ON.
SET THE AUTOMATIC CLOSING TIME BY ADJUSTING POTENTIOMETER TCA
FULLY ANTI-CLOCKWISE WILL APPROX. AUTOMATICALLY CLOSE THE GATES AFTER 10
SECONDS AND FULLY CLOCKWISE WILL APPROX. CLOSE THE GATES AFTER 80 SECONDS.
A SENSIBLE SETTING IS ABOUT HALWAY (I.E 6 O’CLOCK POSITION) WHICH WILL
AUTOMATICALLY CLOSE THE GATES AFTER APPROX. 30 SECONDS.
2. FOR RE-OPENING DURING CLOSING.
REMOVE HARD WIRE LINK BETWEEN
2 & C1 AND INSERT SAFETY BEAM
WIRES AS SHOWN.
10 11 1 2 3 5 7 C1
10 2 NC
3.4 - Automatic Close & Activating Safety Photocells
ON
OFF
1
1
TRIMMER TCA
6 O’CLOCK POSITION
16
