1. CONNECT POWER TERMINALS L1 - L2
AND A SUITABLE EARTH (L2 BEING LIVE!)
2. DO NOT CONNECT THE EARTH TO TERMINAL E AS
THIS IS PART OF A LIGHTING CIRCUIT. BRING THE
EARTH INTO THE CASING AND TERMINATE USING
15AMP TERMINAL BLOCK (NOT SUPPLIED).

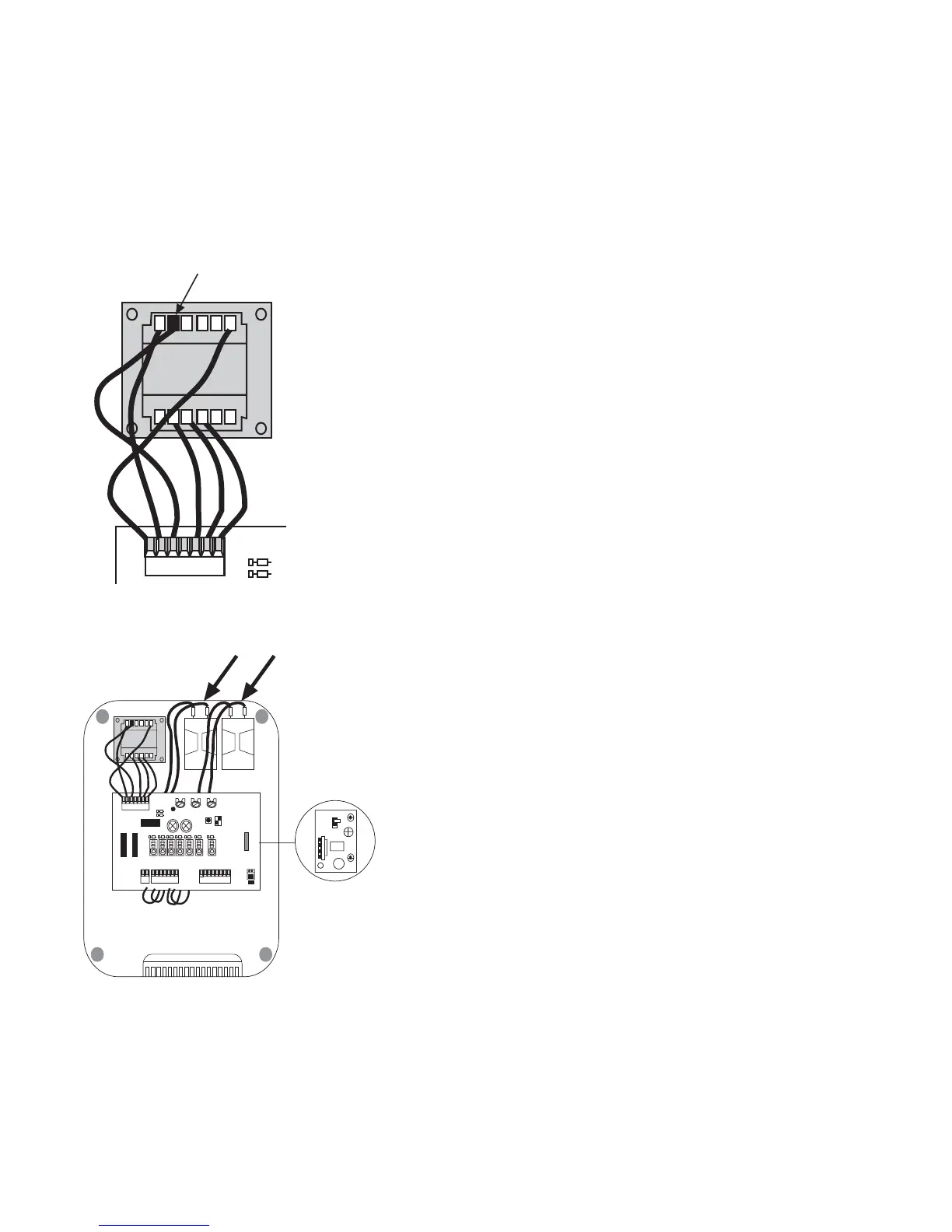

3. SELECT THE MOTOR POWER SETTING ON
THE TRANSFORMER TO LEVEL 1 FOR
COMMISSIONING
4. INSERT THE ‘START-UP’ CAPACITORS INTO
THE CONTROL PANEL. THE TWO BLACK
WIRES FOR MOTOR 1 AND THE TWO RED
WIRES FOR MOTOR 2.
5. ENSURE THAT THE MOTORS ARE
ADEQUATELY EARTHED.
13
