MAINTENANCE PROCEDURES
Evaporative Emission
System Pre-Filter (If
Equipped)
Evaporative Emission System
Pre-Filter Replacement
1. Tilt cargo box, refer to
CARGO BOX
TILT RELEASE HANDLE
..
2. Removethehoseclamps.
3. Remove the retaining screws.
4. Remove the pre-filter assembly.

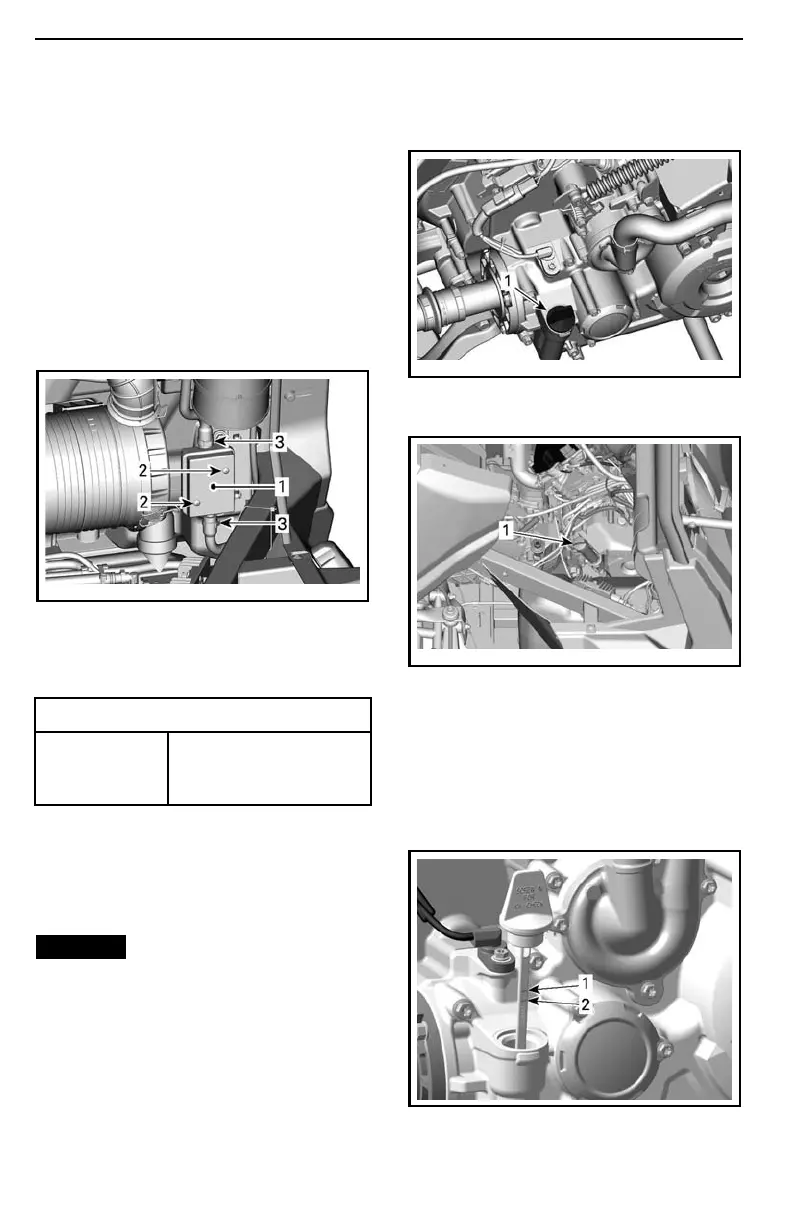

219001807-003_a
1. Pre-Filter
2. Retaining screw
3. Clamps
5. Install a new pre-filter assembly.
TIGHTENING TORQUE
Pre-filter
retaining
screw
2.5 N •m ± 0.5 N•m
(22 lbf•in ±4lbf•in)
6. Secure hoses with clamps.
Engine Oil
Engine Oil Level Verification
NOTICE
Operating the engine
with an improper level may severely
damage engine.
NOTE: C he ck oil level when engine is
cold.
1. Place vehicle on a level surface.
2. Open cargo box.
3. Unscrew dipstick the n remove it
andwipeclean.
219001750-007_a
HD5
1. Engine oil dipstick
tmo2016-010-030_a
HD8 AND HD10
1. Engine oil dipstick
4. Reinstall dipstick, screw in it com-
pletely.
5. Remove dipstick and check oil level.
It should be near or equal to the up-
per mark.
1. Full
2. Add
104
