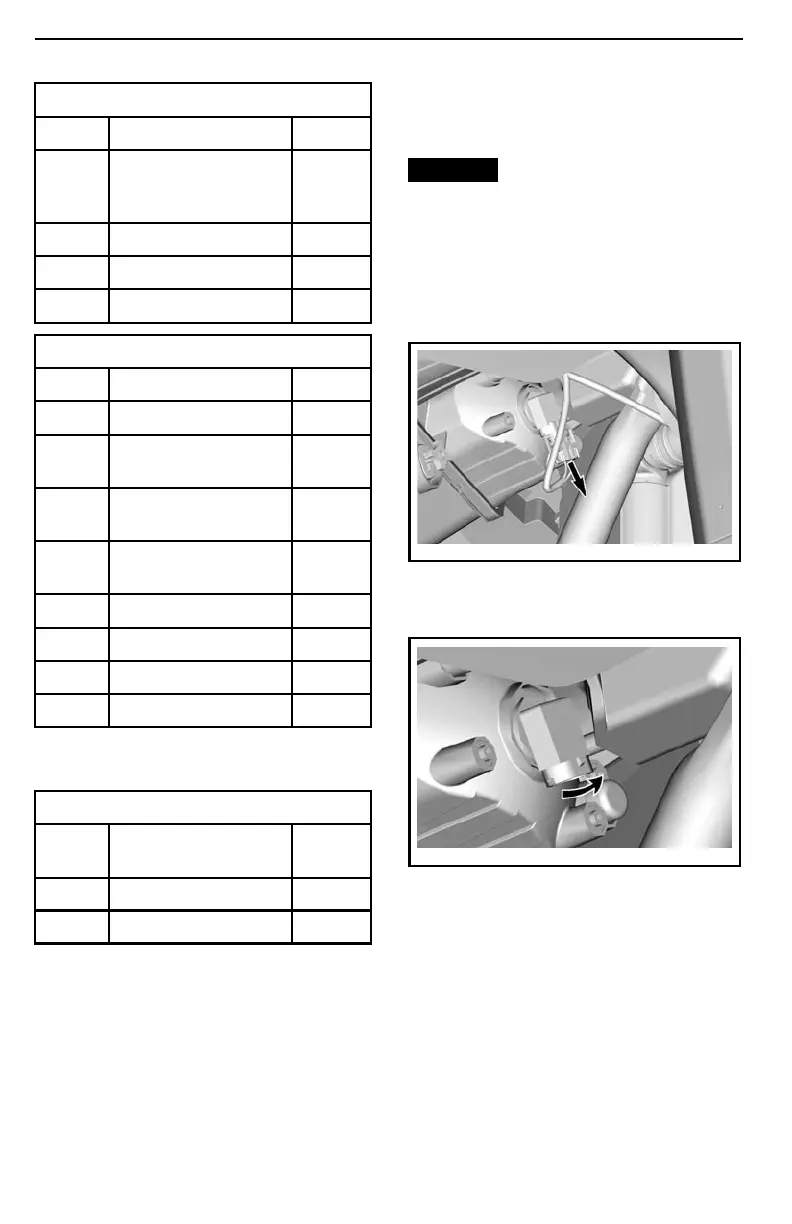

MAINTENANCE PROCEDURES
FRONT FUSE BOX
NO DESCRIPTION RATING
R9
Fuses P F4/F14
Accessory post
12V/outlet 2
50 A
R3
ECM accessory 12V
30 A
R8 Brake lights 20 A
Spare1 Spare
20 A
REAR FUSE BOX
NO DESCRIPTION RATING
F4
Cluster/relays
10 A
F5
Ignition/injection/fuel
pump
10 A
F6
Engine Control
Module (ECM)
10 A
F8
Ignition switch
Clock
10 A
F9
Cooling fan
25 A
R1 Fan 30 A
R2 Main 20 A
Spare2 Spare
10 A
NOTE: Fuses are identified inside fuse
box cover.
FUSE LINKS
FUSE
LINK
DESCRIPTION RATING
1
Main 18 awg
2 Accessory post
14 awg
Lights
Headlight Bulb Replacement
NOTICE
Never touch glass portion
of a halogen bulb with bare fingers,
it shortens its operating life. If glass
is touched, clean it with isopropyl al-
cohol which will not leave a film on
the bulb.
Unplug connector from bulb.
tmo2016-010-041_a
TYPICAL
Rotate bulb.
tmo2016-010-042_a
TYPICAL
Pull out bulb.
Properly reinstall removed parts in the
reverse order of their removal.
Validate headlights operation.
Headlight Beam Aiming
Turn adjustment screw to adjust beam
height to your convenience.
NOTE: Adjust headlights evenly.
122
