MAINTENANCE PROCEDURES
TIGHTENING TORQUE
Drain plug
7.5 N •m ± 0.5 N•m
(66 lbf•in ±4lbf•in)
Fill the final drive unit to the proper
level, refer t o
REAR FINAL DRIVE OIL
LEVEL VERIFICATION
.
For the final drive oil capacity, re fer to
SPECIFICATIONS
.
NOTICE
Use ONLY the recom-
mended type of oil.
NOTICE
Do not overfill.
Reinstall th e filler plug w ith a NEW
sealing ring.
TIGHTENING TORQUE
Filler plug
7.5 N •m ± 0.5 N•m
(66 lbf•in ±4lbf•in)
Wipe off any spillage.
Differential Oil
Front Differential Oil Level
Verification
Clean filler plug prior to checkin g oil
level.

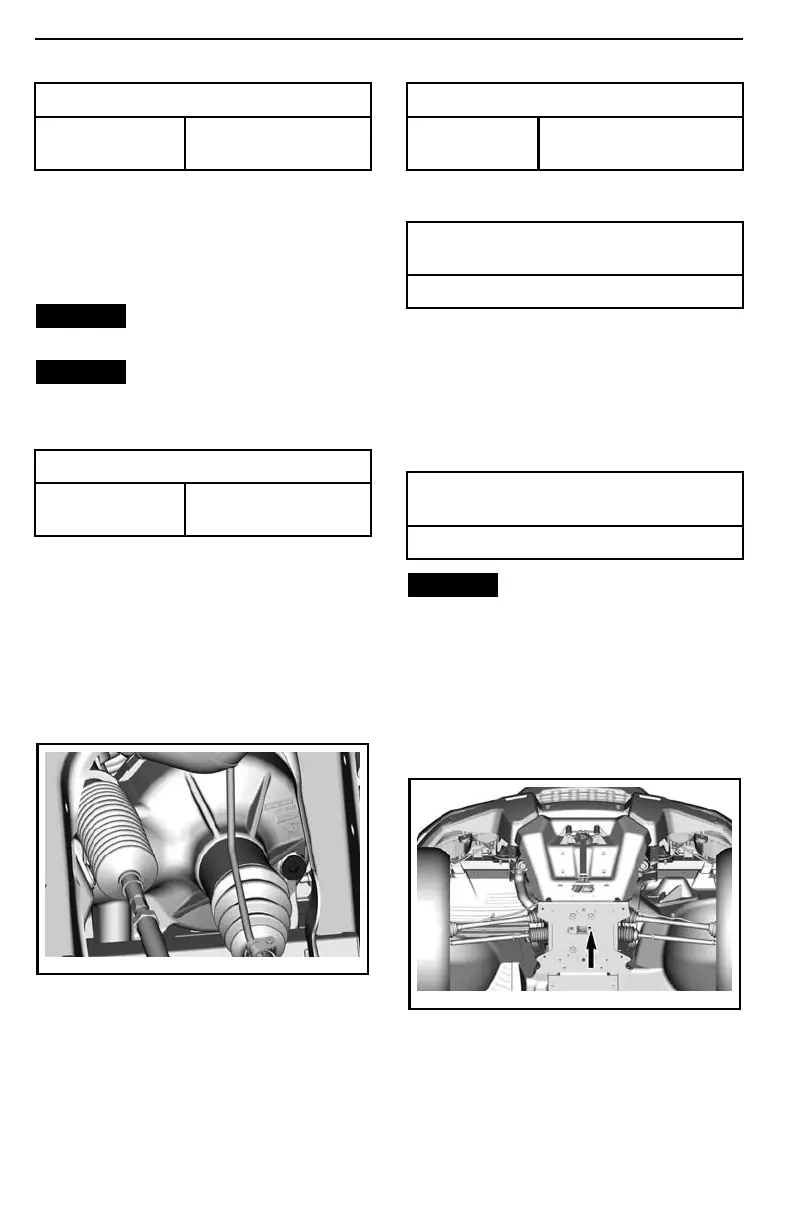

219001807-006
TYPICAL - FRONT RIGHT SIDE OF VEHICLE
With vehicle on a level surface, check
oil level by removing filler plug. Oil
level must reach the lower edge.
Reinstall filler plug.
TIGHTENING TORQUE
Filler plug
16.5 N•m ± 2.5 N•m
(146 lbf•in ±22lbf•in)
Differential Recommended Oil
FRONT DIFFERENTIAL
RECOMMENDED OIL
XPS synthe t ic gear oil (P/N 293600043)
NOTE: The XPS oil is specially formu-
lated to meet the lubricatio n require-
ments of this gearbox. BRP strongly
recomme nd s the use of its XPS oil.
However, if the XPS synthetic g ear oil
is not available, use the following lubri-
cant:
FRONT DIFFERENTIAL MINIMUM
OIL REQUIREMENT
75W 90 API GL-5 synthetic gear oil
NOTICE
Do not use another type
of oil when servicing.
Differential Oil Change
Place vehicle on a level surface. Set
gearbox in park position.
From underneath the vehicle, clean the
drain plug area.
219001807-007_a
TYPICAL
1. Drain plug access hole
Place a drain pan under the front differ-
ential.
Remove drain plug.
114
