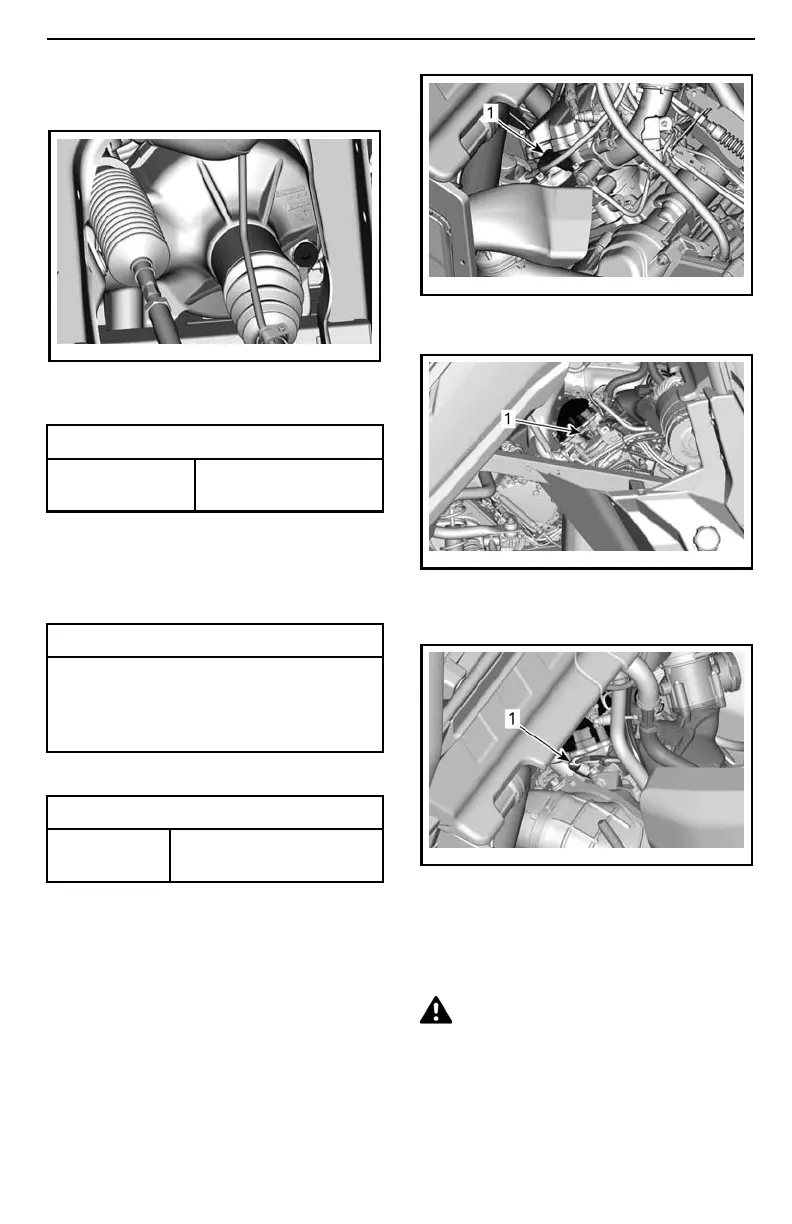

MAINTENANCE PROCEDURES
Unscrew filler plu g .
219001807-006
TYPICAL - FRONT RIGHT SIDE OF VEHICLE
Install drain plug.
TIGHTENING TORQUE
Drain plug
2.7 N •m ± 0.3 N•m
(24 lbf•in ±3lbf•in)
Refill front differentia l with recom-
mended oil.
For the differential oil capacity, refer to
SPECIFICATIONS
.
RECOMMENDED OIL
XPS SYNTHETIC
GEAR OIL (75W 90)
(P/N 293 600 043 )
or
a 75W 90 (API GL-5) gear oil
Reinstall filler plug.
TIGHTENING TORQUE
Filler plug
16.5 N•m ± 2.5 N•m
(146 lbf•in ±22lbf•in)
Spark Plugs
Access to Spark Plugs
Open cargo box.
Spark Plug Removal
Unplug spark plug cable.
219001750-003_a
HD5
1. Spark plug
tmo2016-010-032_a
HD8 AND HD 10 — REAR CYLINDER (ON THE
RH SIDE)
1. Spark plug
tmo2016-010-033_a
HD8 AND HD10 — FRONT CYLINDER (ON
THE LH SIDE)
1. Spark plug
Clean spark plug and cylinder head
with pressurized air.
CAUTION Always wear safety
goggles when using pressurized air.
Unscrew spark plug completely using
a spark plug socket, then remove it.
______________
115
