MULTIFUNCTION GAUGE (LCD)
The multifunction gauge (LCD) is lo-
cated on the upper console.
WARNING
Do not adjust the display while rid-
ing . You could lose control.

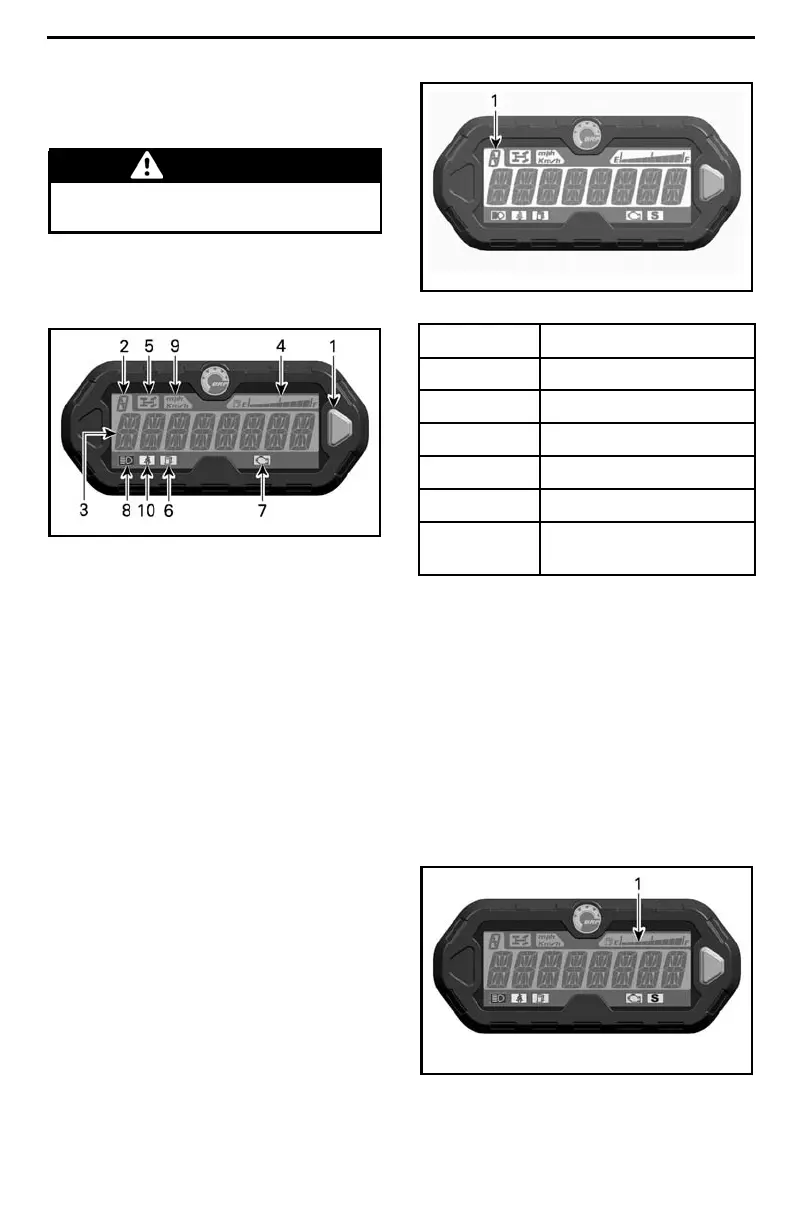

Multifunction Gau ge
Description
tmo2013-001-100_c
1. Selector button
2. Gearbox position display
3. Main screen
4. Fuel level display
5. 4WD indicator lamp
6. Low fuel level indicator lamp
7. Check engine indicator lamp
8. High beam indicator lamp
9. MPH and KM/H indicator lamp
10.Seat belt indicator lamp
1) Selector Button
The selector button is used to navigate
or change settings in the multifunction
gauge.
2) Gearbox Position Display
This display will show gearbox posi-
tion.
tmo2011-001-702_d
1. Gearbox position
DISPLAY FUNCTION
PPark
RReverse
N Neutral
HHighrange
L Low range
-
Indicated in-between
gear
3) Main Screen
The main screen is used to display nu-
merous functions of the multifunction
gauge.
Refer to
MULTIFUNCTION GAUGE
MODES
for the different available
modes:
4) Fuel Level Display
Bar gauge continuously indicates the
level of fuel in the fuel tank while riding.
tmo2013-001-100_b
1. Fuel level display
_______________
55
