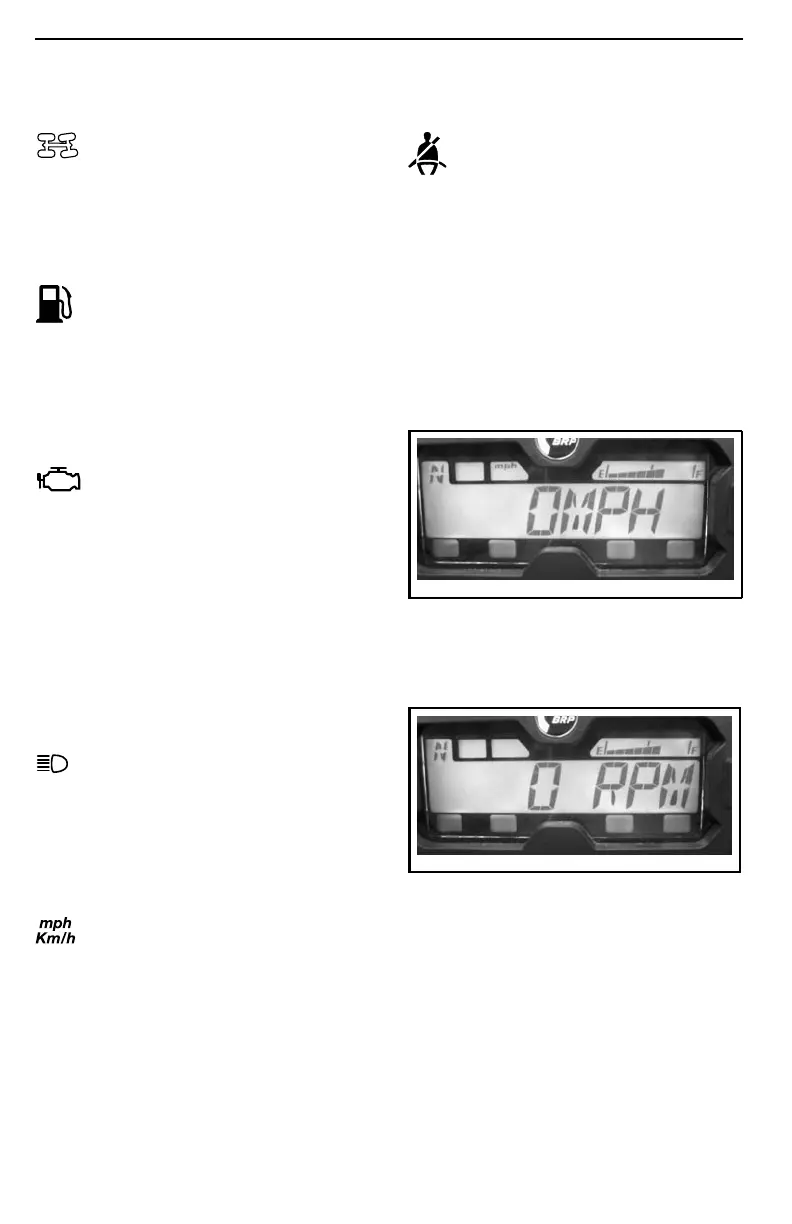

MULTIFUNCTION GAUGE (LCD)
5) 4WD Indicator Lamp
When this indicator is ON, it indicates
the 4WD system is activated.
6) Low Fuel Level Indicator Lamp
When this indicato r is ON, it indi-
cates that there is approximately 8.5 L
(2.2 U.S. gal.)of fuel left in fuel tank.
7) Check Engine Indicator Lamp
When this indicator is ON, it indicates
an engine fault code, look for a mes-
sage at the LCD display.
When this indicator blinks, it indicates
that the LIMP HOME mode is acti-
vated.
Refer to
TROUBLESHOOTING
section
for more details.
8) High Beam Indicator Lamp
When this indicator is ON, it indicates
that high beam is selecte d on the
headlights.
9) KM/H or MPH Indicator Lamp
The proper lamp turns on to indicate
the unit the speedometer uses.
10) Seat Belt Indicator Lamp
When this indicator is ON, the driver's
seat belt is not buckled.
Multifunction Gau ge
Modes
Speed Mode
In this mode, the main screen shows
the speed of the vehicle either in km/h
or in MPH.
vdd2008-001-084
RPM Mode
In this mode, the main screen shows
theengineRPM.
vdd2008-001-089
Combined Mode
In this mode, the main screen shows
the speed of the vehicle and the engine
RPM.
56
