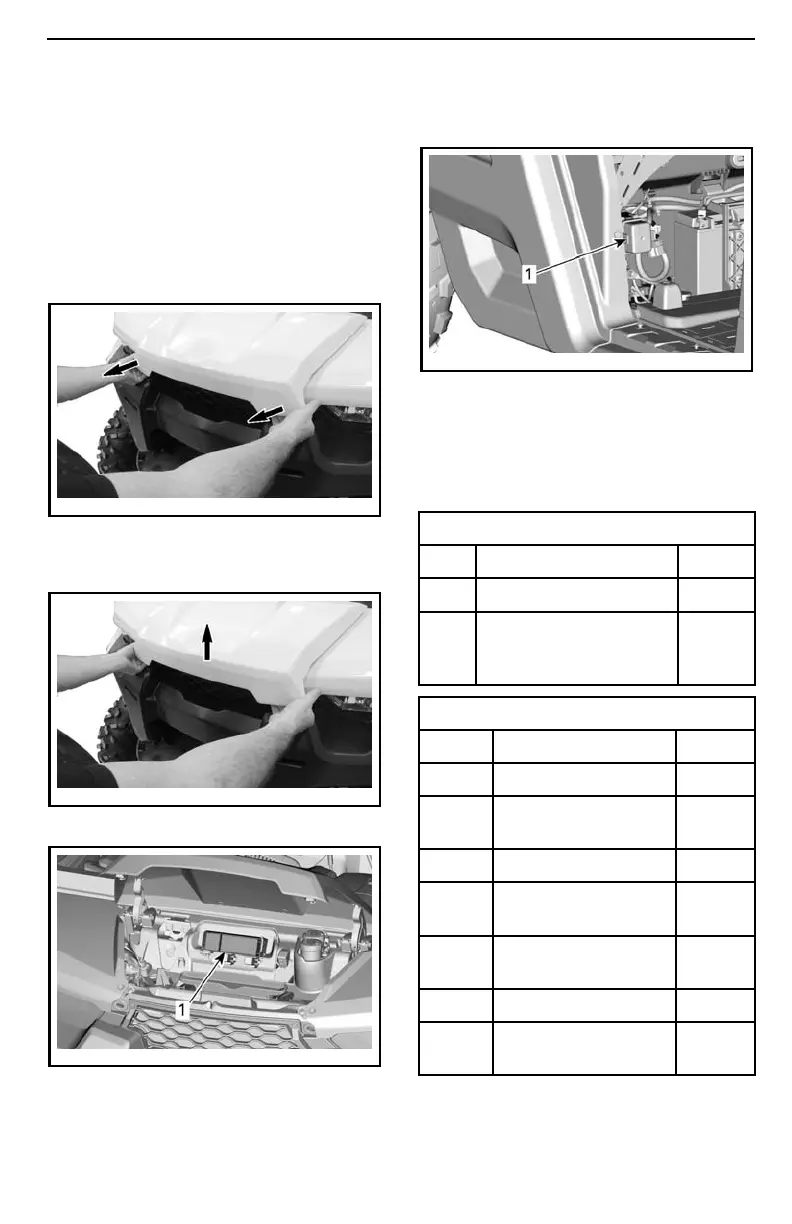

MAINTENANCE PROCEDURES
Fuse Box Location
The vehicle is equipped with two fuse
boxes. The front fuse box is located
under the front service cover and the
rear fuse box is located under RH pas-
senger seat near battery.
To open front service cover, pull on
front edges of service cover to unlock
mechanism
tmo2016-010-060_a
PULLING ON FRONT SERVICE COVER EDGE.
Lift service cover.
tmo2016-010-060_b
LIFTING FRONT SERVICE COVER EDGE.
tmo2016-010-083_a
FRONT SERVICE COVER OPENED
1. Front fuse box
NOTE: Use screwdriver to remove
DPS and Accessories fuse cover.
tmo2016-010-084_a
BATTERY COVER REMOVED
1. Rear fuse box
NOTE: Fuse link 1 connected to
starter solenoid.
Fuse Box Description
SINGLE FUSES AT FRONT
NO DESCRIPTION RATING
PF3
DPS
40 A
PF4
Accessory post
(Under dash terminal
block)
40 A
FRONT FUSE BOX
NO DESCRIPTION RATING
F7 4WD actuator 10 A
F10
T vehicle (accessory
post)
40 A
F11 Headlamps 20 A
F12
DC3/12V accessory
outlet 1
10 A
F14
12 V accessory
outlet 2
10 A
F16 Tail lamps 10 A
F18
Oxygen sensor
Emission control
10 A
______________
121
To Next Page
