OPTIONAL EQUIPMENT (IF AVAILABLE ON YOUR MODEL)
CAUTION Maximum capacity
for a pair of tool holders: 5 kg (11 lb).
NOTICE
Before each use, make
sure LinQ Tool Holder is locked.
Install tool holder into the linQ adap-
tor. The lock pictogram on the base of
the toolholder should face towards the
longest side of the linQ adaptor hole.
NOTICE
The tool holder should
face upwards when installed on a
vertical wall.

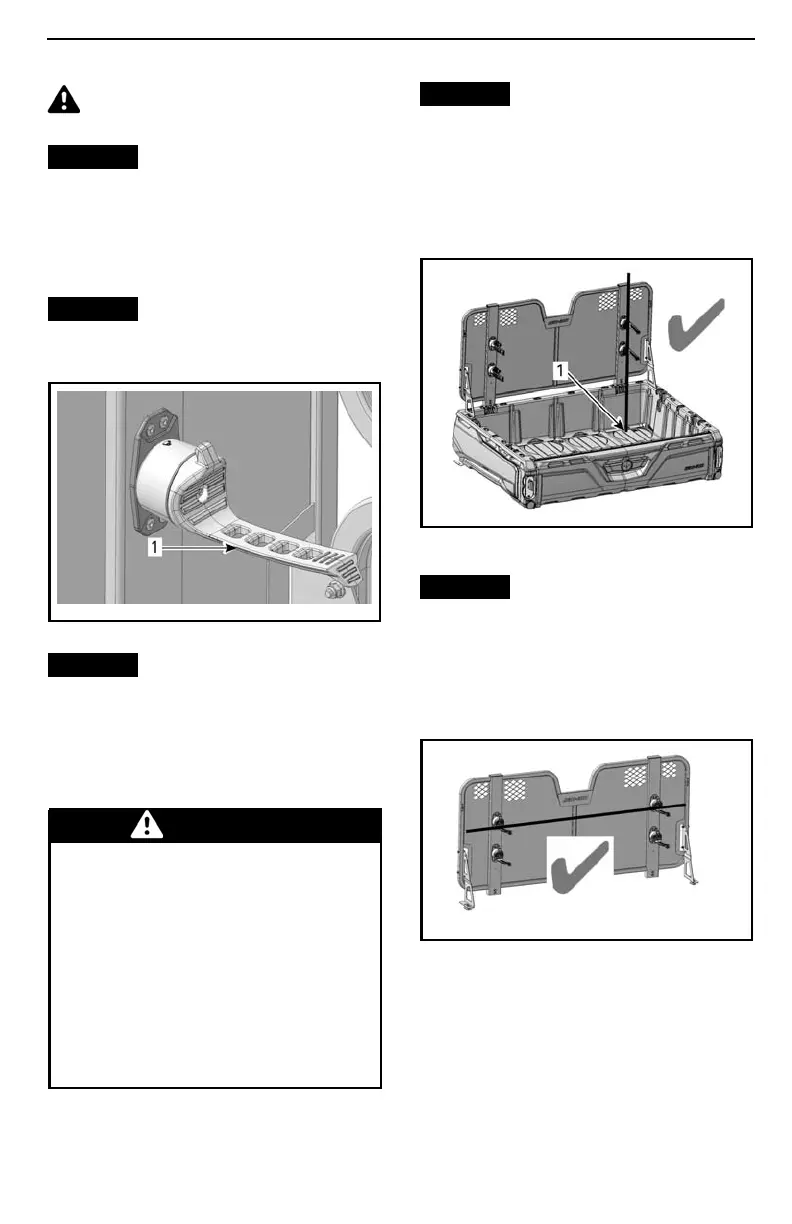

tsi2016-083-004_b
1. Hook facing upwards
NOTICE
Before installing, make
sure the surfaces of the tool holders
and all surfaces it will be in contact
with are free of any snow, ice, mud
or any kind of debris.
Improper setup and usage
WARNING
Do not use tool holders to support
or hold heavy objects. Objects
can dislodge from the tool hold-
ers when riding fast or in a bumpy
trail. Reduce your speed and often
verify if holders remain in place.
Ensure that the tool holders or the
carried object will not contact any
bystanders, or trees or any objects.
On an ATV, ensure objects loaded
do not extend wider than the vehi-
cle width.
NOTICE
When mounting ob-
jects horizontally, always install the
hooks facing upwards.
Proper setup and utilization
Use both tool holders together to carry
an object.
tsi2016-083-003_a
1. Cargo box floor is used as an additional
support
NOTICE
On vertical mount, al-
ways put the heavy end of the ob-
ject on the box floor. Ensure that the
object doesn't protrude outside the
vehicle.
Proper setup for the headache rack.
tsi2016-083-005_b
Proper setup in pairs for the cargo box.
