Canon imagePROGRAF iPF6300S

To Next Page

To Previous Page

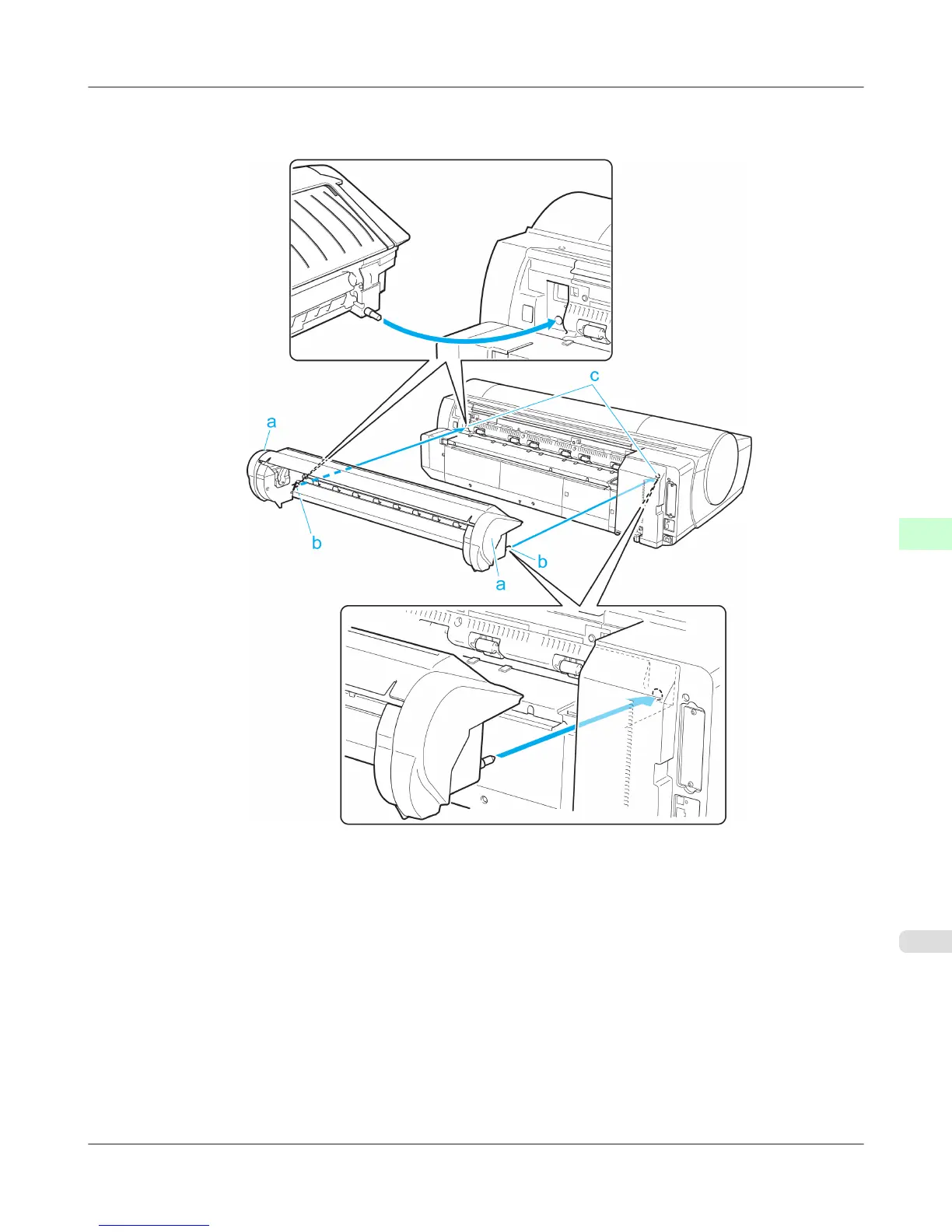

1. Holding the Roll Feed Unit by the Carrying Handles (a), insert the two pins of the Roll Feed Unit (b) into the each

hole on the back of the printer (c).

Handling Paper

Handling rolls

iPF6300S Installing the Roll Feed Unit

807
