Canon imagePROGRAF iPF6300S

To Next Page

To Previous Page

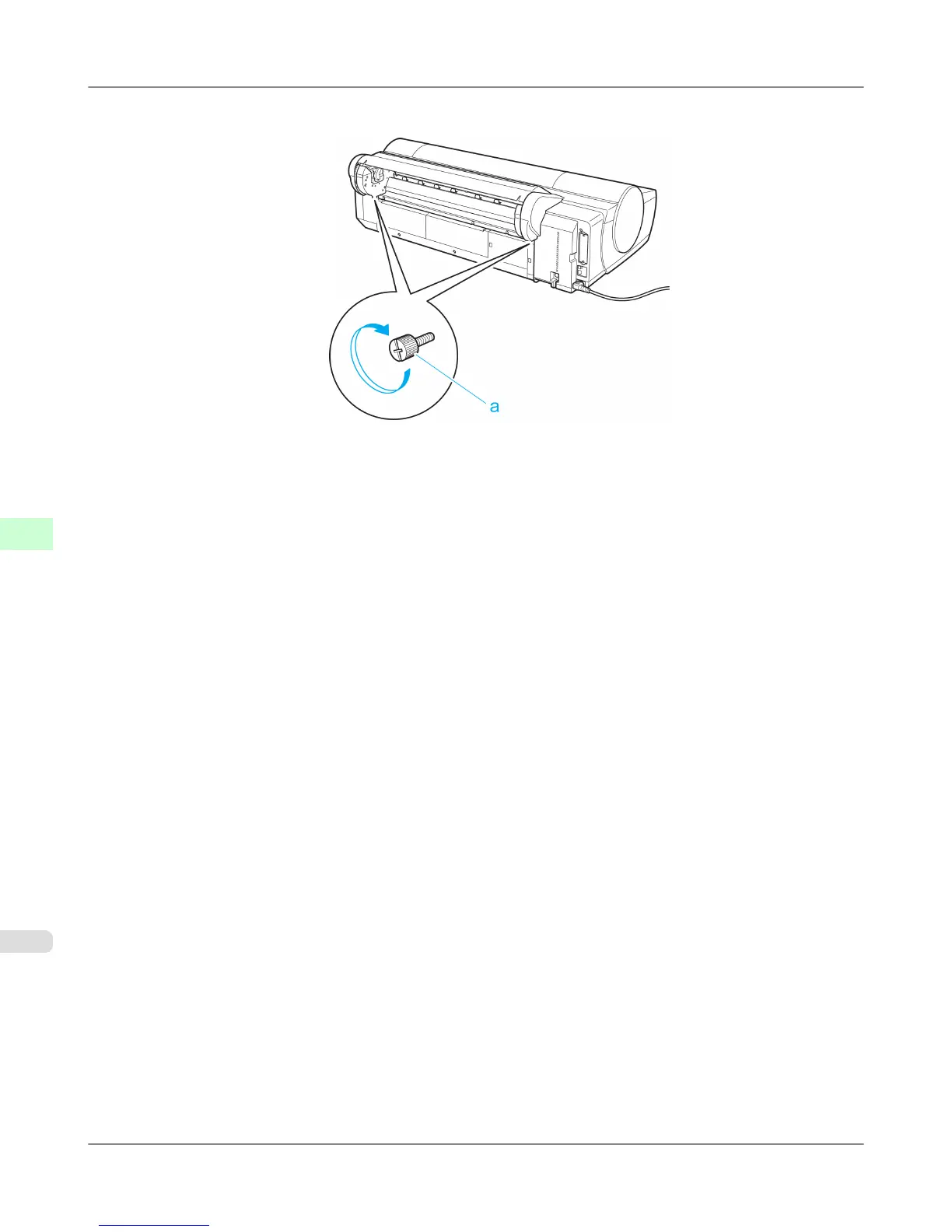

2. Use a coin or screwdriver to tighten the two screws on the back of the Roll Feed Unit (a) to secure it to the printer.

Handling Paper

Handling rolls

Installing the Roll Feed Unit iPF6300S

808
