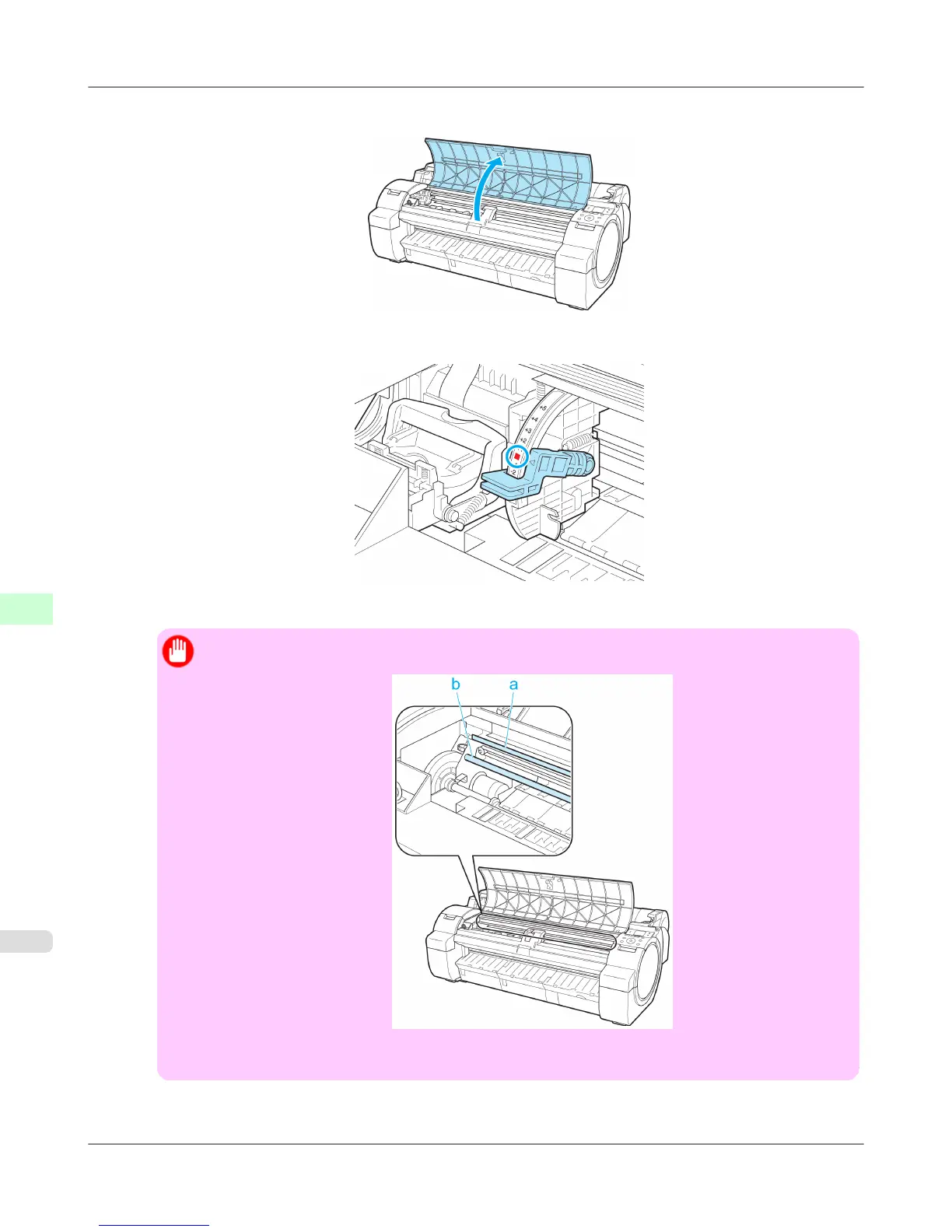

6. Open the Top Cover.
7. Align the Angle Adjustment Lever with the red square and close the Top Cover.
A test pattern is printed for adjustment.
Important
• Do not touch the Linear Scale (a) or Carriage Shaft (b). Touching these parts may damage them.
• If you accidentally move the Carriage, you will hear a warning tone. In this case, close the Top Cov-
er.
Adjustments for Better Print Quality
>
Adjusting the Printhead
>
Adjusting Line Misalignment (Head Inc. Adj.) iPF655
