Canon imagePROGRAF iPF680 User Manual

Setting Details
Solid Line You can print the solid line as the frame style.
Dotted Line You can print the dotted line as the frame style.
Dashed Line You can print the dashed line as the frame style.
Crop Marks You can print with the crop marks.

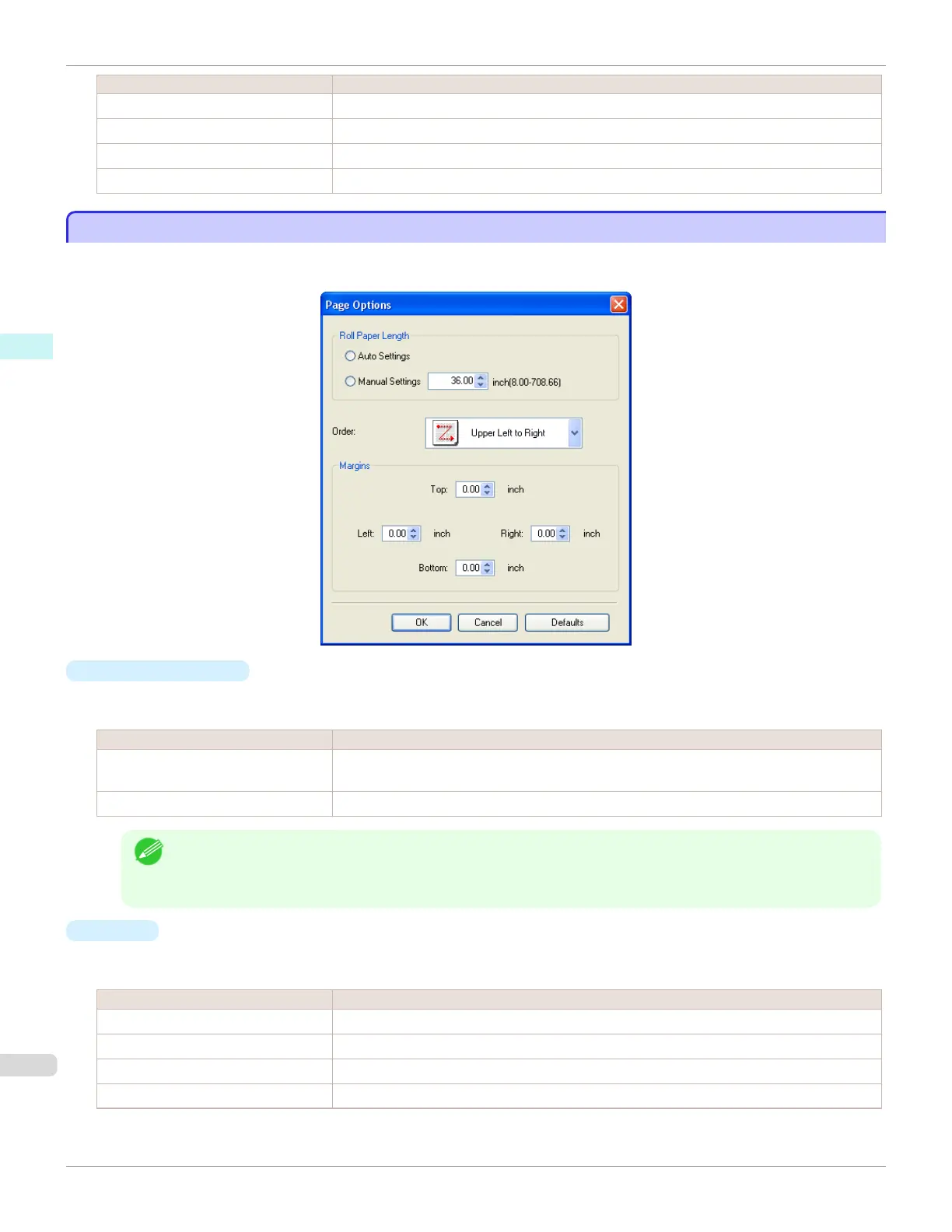

Page Options Dialog Box
Page Options Dialog Box
This dialog box appears when you select Page Options from the File menu. This allows you to configure the roll paper
length, object layout order, and margins of Free Layout.
•
Roll Paper Length
Set the length of one page to print on roll paper.
The following settings are available for roll paper length.
Setting Details
Auto Settings The one-page length to be printed on roll paper is automatically set so that the laid-out ob-
jects are printed on one page.
Manual Settings You can input the length of one page to print on roll paper in numerical characters.
Note
• Available only if rolls are selected in Paper Source.
• You can input between 203.2 and 18000.0(mm) (between 8.00 and 708.66(inch)).
• You can change the numbers by clicking either ▲ button or ▼ button.
•
Order
Set the object layout order.
The following settings are available for order.
Setting Details
Upper Left to Right The objects are laid out from upper left to right.
Upper Left to Bottom The objects are laid out from upper left to bottom.
Upper Right to Left The objects are laid out from upper right to left.
Lower Left to Top The objects are laid out from lower left to top.
Page Options Dialog Box
iPF680
User's Guide
Windows Software Free Layout
206

Canon imagePROGRAF iPF680 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Matte black, Yellow
Print technology	Inkjet
Maximum resolution	2400 x 1200 DPI
Page description languages	GARO, HP-GL/2, HP-RTL
Media thickness	0.07 - 0.8 mm
Maximum print size	-
Maximum roll length	18 m
Media width (rolls)	254 - 609.6 mm
Media width (sheets)	203.2 - 609.6 mm
Maximum roll diameter	150 mm
Paper tray media types	Coated paper, Cut sheet, Plain paper, Roll
ISO A-series sizes (A0...A9)	A1, A2, A3
ISO B-series sizes (B0...B9)	B2, B4
Certification	RoHS
Product color	Black, Grey
Sound pressure level (printing)	47 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN data rates	10/100/1000 Base-T/TX Mbit/s
Ethernet interface type	Gigabit Ethernet
Compliance industry standards	IEEE 802.3ab, IEEE 802.3u, IEEE 802.3
Power consumption (standby)	0.5 W
Power consumption (typical)	140 W
Storage temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	20 - 80 %
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	757 mm
Width	997 mm
Height	507 mm
