Canon imagePROGRAF iPF680 User Manual

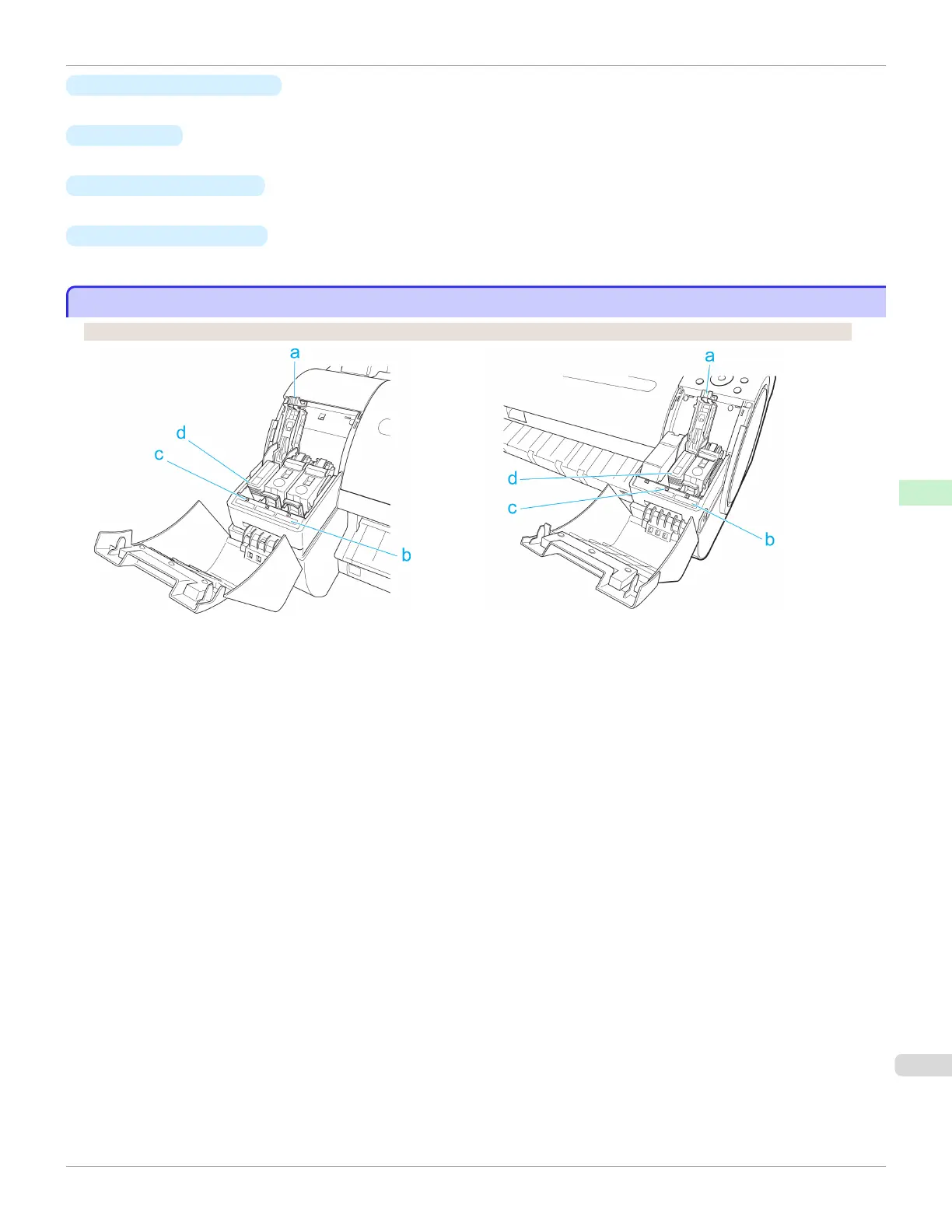

a Angle Adjustment Lever
Use this lever to fine-tune the printer to correct misalignment of printed lines.
b Printhead
The printhead is equipped with ink nozzles. The carriage serves a key role in printing.
c Printhead Fixer Lever
Locks the Printhead Fixer Cover.
d Printhead Fixer Cover
Holds the Printhead in place.
Ink Tank Cover (Inside)
Ink Tank Cover (Inside)
Left Side Right Side
a Ink Tank Lock Lever
A lever that locks the Ink Tank in place and protects it. Lift and press down the lever when replacing an Ink Tank.
b Ink Color Label
Load an Ink Tank that matches the color and name on this label.
c Ink Lamp (Red)
Indicates the state of the Ink Tank as follows when the Ink Tank Cover is opened.
•
On
The Ink Tank is installed correctly.
• Off
No Ink Tank is installed, or the ink level detection function has been released.
• Flashing Slowly
Not much ink is left.
• Flashing Rapidly
There is no ink left.
d Ink Tank
Cartridges of ink in various colors.
iPF680 Ink Tank Cover (Inside)
User's Guide
Printer Parts Printer parts
479

Canon imagePROGRAF iPF680 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Matte black, Yellow
Print technology	Inkjet
Maximum resolution	2400 x 1200 DPI
Page description languages	GARO, HP-GL/2, HP-RTL
Media thickness	0.07 - 0.8 mm
Maximum print size	-
Maximum roll length	18 m
Media width (rolls)	254 - 609.6 mm
Media width (sheets)	203.2 - 609.6 mm
Maximum roll diameter	150 mm
Paper tray media types	Coated paper, Cut sheet, Plain paper, Roll
ISO A-series sizes (A0...A9)	A1, A2, A3
ISO B-series sizes (B0...B9)	B2, B4
Certification	RoHS
Product color	Black, Grey
Sound pressure level (printing)	47 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN data rates	10/100/1000 Base-T/TX Mbit/s
Ethernet interface type	Gigabit Ethernet
Compliance industry standards	IEEE 802.3ab, IEEE 802.3u, IEEE 802.3
Power consumption (standby)	0.5 W
Power consumption (typical)	140 W
Storage temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	20 - 80 %
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	757 mm
Width	997 mm
Height	507 mm
